60ThinMEA
60ThinMEA200/30iR-ITO
Technical Specifications 60ThinMEA
Temperature compatibility
0 - 125 °C
Dimension (W x D x H)
49 mm x 49 mm x 1 mm
“Thickness”
180 μm (Glass part)
Base material
Glass on ceramic carrier
Contact pads and track material
ITO (Indium tin oxide)
Electrode diameter
30 μm
Interelectrode distance (centre to centre)
200 μm
Electrode height
Planar
Electrode type
TiN (Titanium nitride)
Isolation type
Silicon nitride 500 nm (PEVCD)
Electrode impedance
30 - 50 k
for 30 μm, 250 - 400 k for 10 μm electrodes
Electrode layout grid
8 x 8
Number of recording electrodes
59
Number of reference electrodes
1 internal reference electrode (iR)
MC_Rack
Source layout in “Data Source Setup”
2 dim. (MEA) or Configuration
Channel map
Default
MEA perfusion chamber
(w/o) Without ring
(gr)
Glass ring: ID +/- 19 mm, OD 24 mm, height 6 / 12 mm
(pr)
Plastic ring without thread: ID 26.5 mm, OD 30 mm, height 6 / 3 mm
(pr-T) Plastic ring with thread: ID 26 mm, OD 30 mm, height 6 / 15 mm
21
31
41
51
61
71
12
13
14
16
17
22
23
24
25
26
27
28
32
33
34
35
36
37
38
42
43
44
45
46
47
48
52
53
54
55
56
57
58
62
63
64
65
66
67
68
72
73
74
75
76
77
78
82
83
84
85
86
87
33 21 32 31 44 43 41 42 52 51 53 54 61 62 71 63
22
12
23
13
34
24
14
15
25
35
16
26
17
27
36 28 37 38 45 46 48 47 57 58 56 55 68 67 78 66
77
87
76
86
72
82
73
83
64
74
84
85
75
65

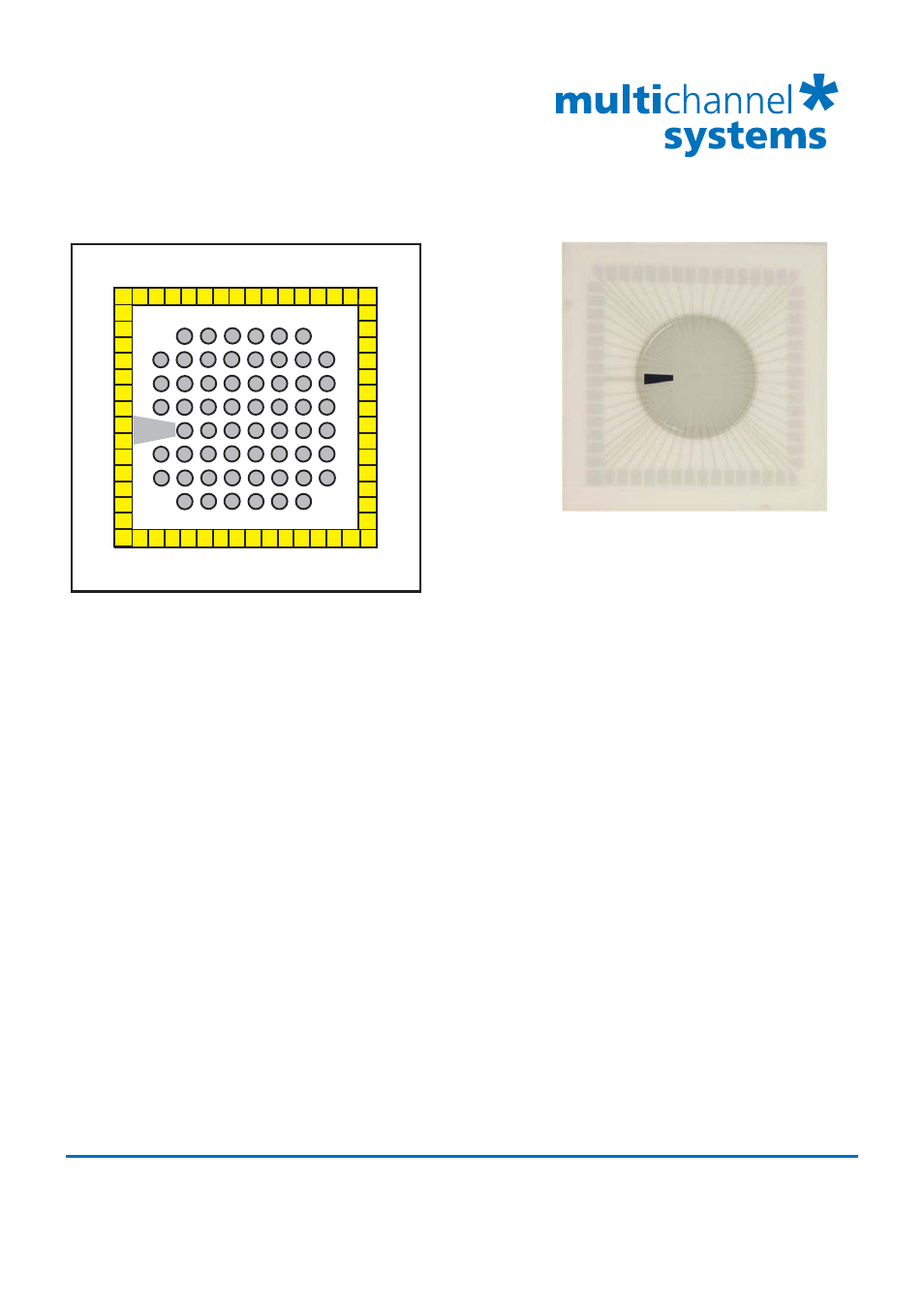

60 electrode Thin Microelectrode Array with 8 x 8 layout.
The electrodes are embedded in a very thin glass substrate
on a robust ceramic carrier. Contact pads and tracks are made
from transparent indium tin oxide for high resolution imaging.
REF (15)
