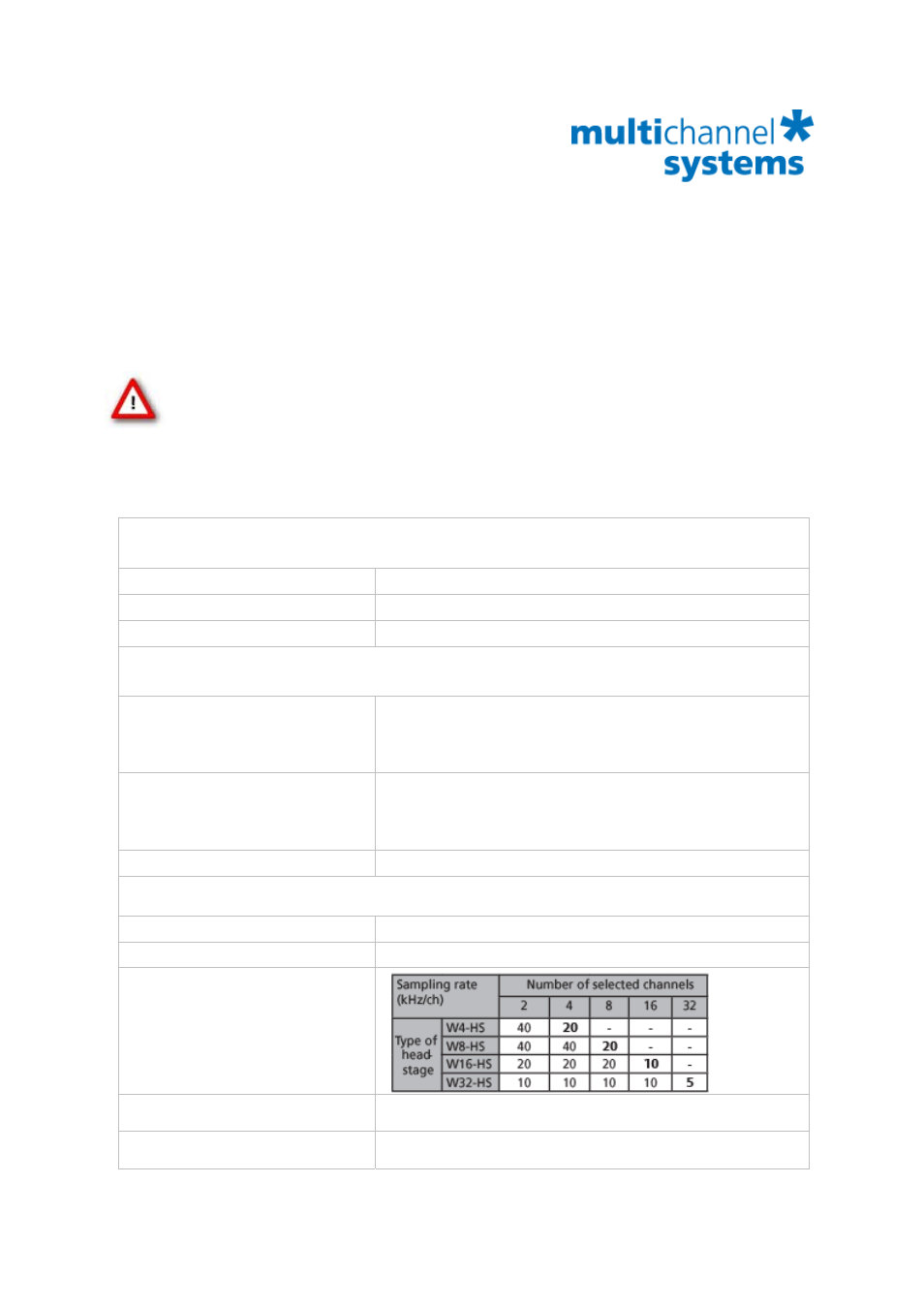

Wireless Recording System
W4-, W8-, W16-, W32-System
Technical Specifications
Warning: The headstage may only be used together with the receiver and the control
interface from Multi Channel Systems MCS GmbH, and only for the specified purpose.
Damage of the devices and even fatal injuries can result from improper use. Do not
open the receiver or interface box and do not change hardware configuration as it
could lead to improper behavior of the system.
General characteristics
Operating temperature
10 °C to 50 °C
Storage temperature
0 °C to 70 °C
Relative humidity
10 % to 85 %, non condensing
Headstage
Dimensions (W x D x H)
4 channels: 13 (+ antennae) x 13 x 5 mm (+ battery)
8 channels: 16 (+ antennae) x 16 x 5 mm (+ battery)
16 channels: 16 (+ antennae) x 16 x 6.5 mm (+ battery)
32 channels: 16 (+ antennae) x 16 x 7.5 mm (+ battery)
Weight
4 channels: approx. 2.2 g (+ battery)
8 channels: approx. 2.9 g (+ battery)
16 channels: approx. 3.6 g (+ battery)
32 channels: approx. 3.7 g (+ battery)
Number of channels
4, 8, 16 or 32
Amplifier integrated in the headstage
Bandwidth
1 Hz to 5 kHz (0.1 Hz on request)
Resolution
16 bit
Sampling rate
Input voltage range
+ / - 12.4 mV
Distance for wireless link
5 m guaranteed
