EcoFlexMEA36
Technical Specifications EcoFlexMEA36
Temperature compartibility
10 - 125 °C
Dimension (W x D)
37 mm x 30 mm
Thickness of the electrode field
50 μm
Weight
<
10
g
Base
material
Polyimide
(Kapton)
Contact pads and track material
Gold
Electrode
diameter
50
μm
Interelectrode distance (centre to centre)
300 μm
Electrode
height Planar
Electrode
type
Gold
electrodes
Isolation
type
Polyimide
(Kapton)
Electrode
impedance
Approximately
50
k
Electrode layout grid
6 x 6
Number of recording electrodes
32
Number of reference electrodes
2 internal reference electrodes
Number of ground electrodes
2 ground electrodes
MC_Rack
Version 4.1.1 and higher
Data Source Setup
Source Layout: Configuration, Total Number of Channels: 64,
Amplifier:
FA32I/S
or
FA64I/S,
MEA:
EcoFlexMEA36.
Channel map
Display: Layout tab > Default Map (EcoFlexMEA36.cmp).
Cleaning
Rinse with distilled water. EcoFlexMEAs made from
Polyimide (Kapton) are heat stable and autoclavable.
Electrode field:
1800 x 1800 μm, 32 recording electrodes,
2 reference electrodes, 2 ground electrodes
Connect the EcoFlexMEA36 directly to a 32-Channel Miniature
Preamplifier. Insert the EcoFlexMEA36 into the MPA32I with
the electrode field up. The additional connector can be used for
connecting a silver pellet or a silver wire for grounding the bath.

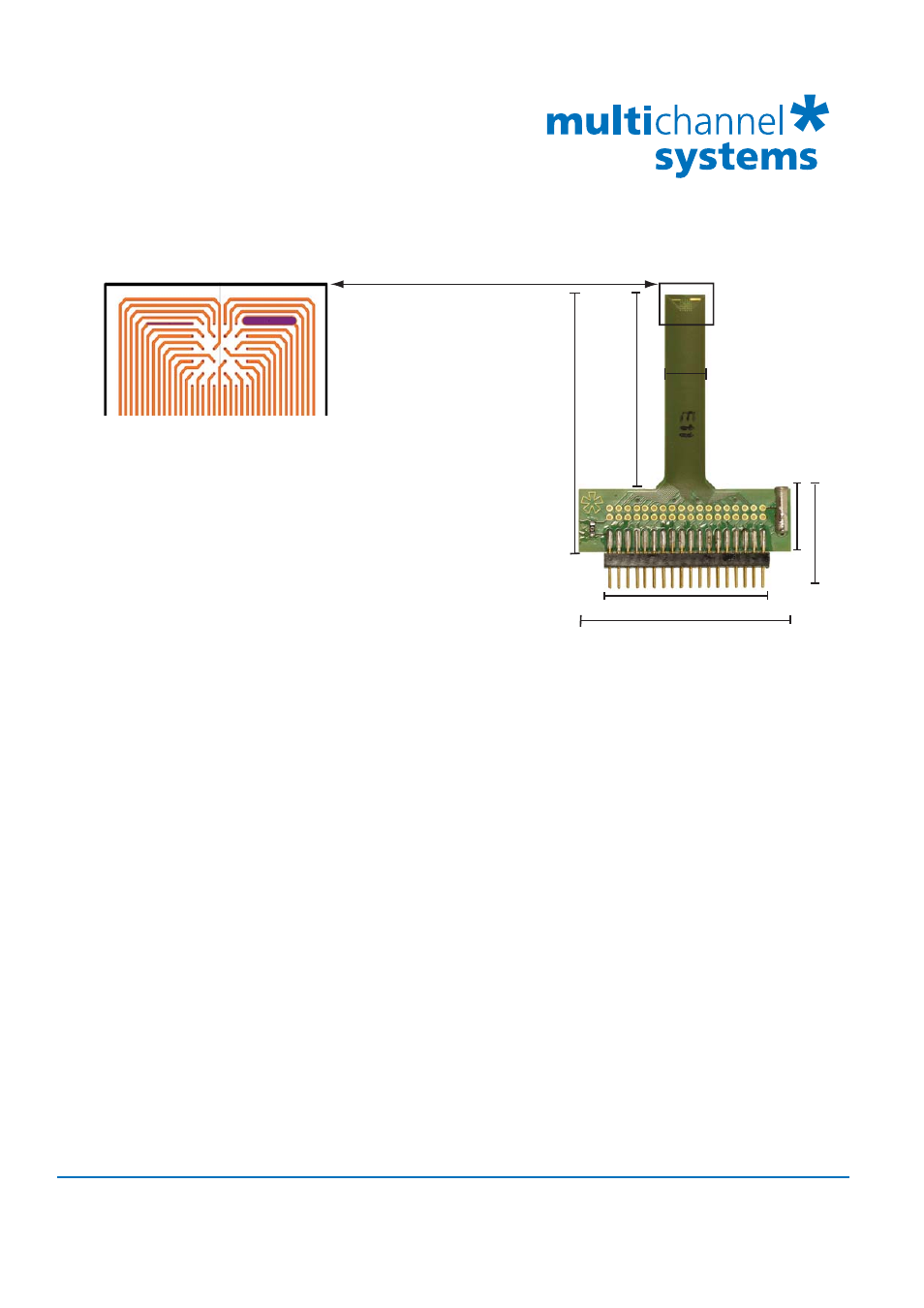

Flexible Microelectrode Array with 36 electrodes for use with
32-Channel Miniature Preamplifier MPA32I for in vivo or in vitro applications.
37 mm
9 mm
28 mm
30 mm
23 mm
6 mm
14 mm
