ADPT-NN-16
16-Electrode NeuroNexus Probe
Adapter for MPA8I Amplifiers
Connecting the NeuroNexus Probe to the Adapter ADPT-NN-16
Multi Channel Systems
MCS GmbH
Aspenhaustrasse 21
72770 Reutlingen
Germany Fon +49-7121-9 09 25- 0
Fax +49-7121-9 09 25-11
[email protected]
www.multichannelsystems.com
© 201 4 Multi Channel Systems MCS GmbH
Product information is subject to change
without notice.
G and R have been connected together as factory-default settings. You can change this connection
to meet your requirements.
Important: Operation of the MPA8I is differential. The reference channel R has to be used for obtaining
a proper signal. Please see the MPA8I manual for details.
Shown are the input pins of the adapter that are connected to the probe. The labeled channels are
the ground channel (G), the reference channel (R), and the 8 recording channels (1 to 8) of the MPA8I.
Please see the MPA8I manual for details. If you use MC_Rack for data acquisation, see Pin Layout above.
Warning: The device may only be used together with the MPA8I from Multi Channel Systems
MCS GmbH and the 16-channel probe from NeuroNexus, and only for the specified purpose.
Damage of the device and even fatal injuries can result from improper use.
!
Pin Layout for MC_Rack:
MPA8I MC_Rack
No. 1
Pin 1 - 8 Channel 1 - 8
No. 2
Pin 1 - 8 Channel 9 - 16
1
3
5
6
7
8
4
2
R
8
6
4
3
2
1
5
7
G
No. 2
MPA8I MPA8I
No. 1
Top view without probe NeuroNexus Probe-Adapter
Channel assignment:
Input pins connected to the NeuroNexus probe

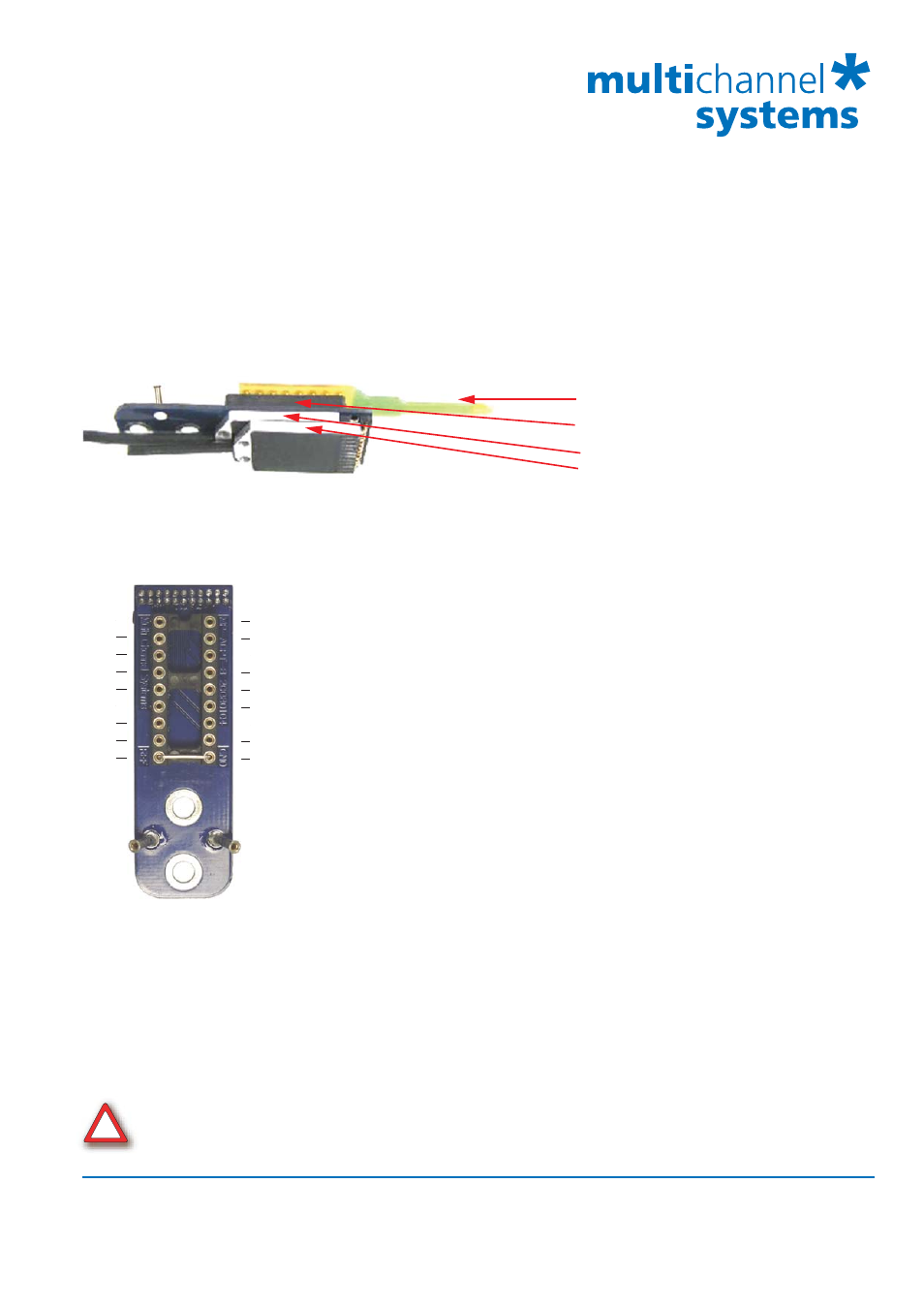

Complete setup with NeuroNexus probe and two MPA8Is
NeuroNexus Probe
MPA8I No. 1
MPA8I No. 2
NN-Adapter
Important:
Black side of MPA8I faced down !
