INSTALLATION INSTRUCTIONS FOR PART OESWC-7552-RF
The OESWC-7552-RF is designed to allow you to add steering
wheel control options to 2007 and up Nissan vehicles. The RF
controlled OESWC-7552-RF will allow the customer to adjust their
radio without taking their eyes off the road. The OESWC-7552-RF will
come preprogrammed with your most popular features, volume up,
volume down, seek up, seek down, and source. But with the option of
remapping the buttons to fi t every customer needs, this makes this a
must have interfaces that the Axxess line offers.
OESWC-7552-RF
INTERFACE COMPONENTS

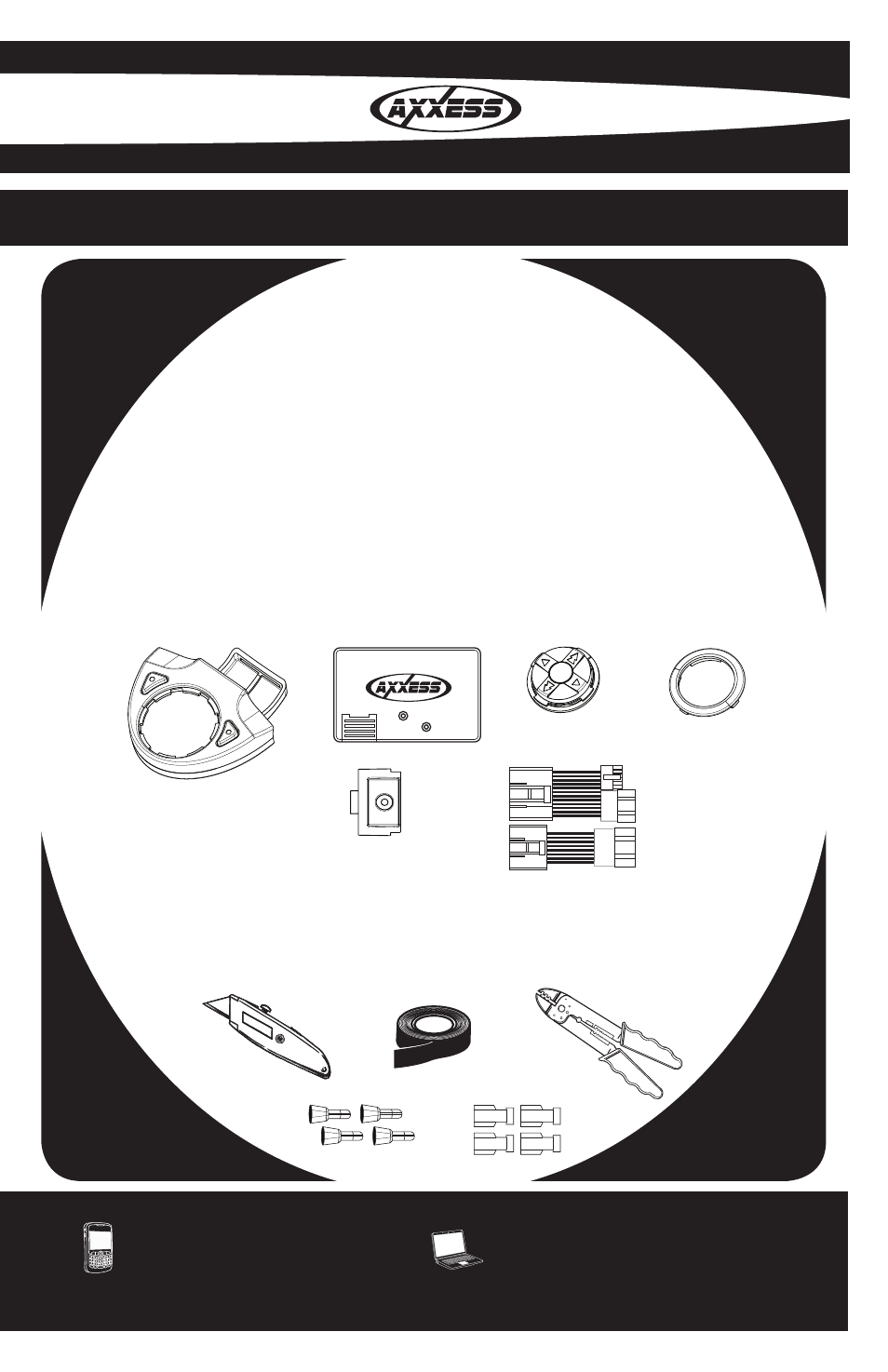

• A) OESWC Transmitter • B) OESWC Interface • C) Center Keypad
• D) Trim Ring • E) Strap Cover • F) Vehicle T-Harness
A B C D
E
F
TOOLS REQUIRED FOR INSTALLATION
•Cutting Tool •Tape •Crimping Tool
•Connectors (I.E. butt-connectors, bell caps, ECT…)
IGNITION TERMINALS
WIRE CUTTER M3.5
M2.6
M3
M5
M4
ISO
6 2.5 1.5
