Rear panel, Microphone – MIDLAND 248 User Manual
Page 12
4
ENGLISH
4

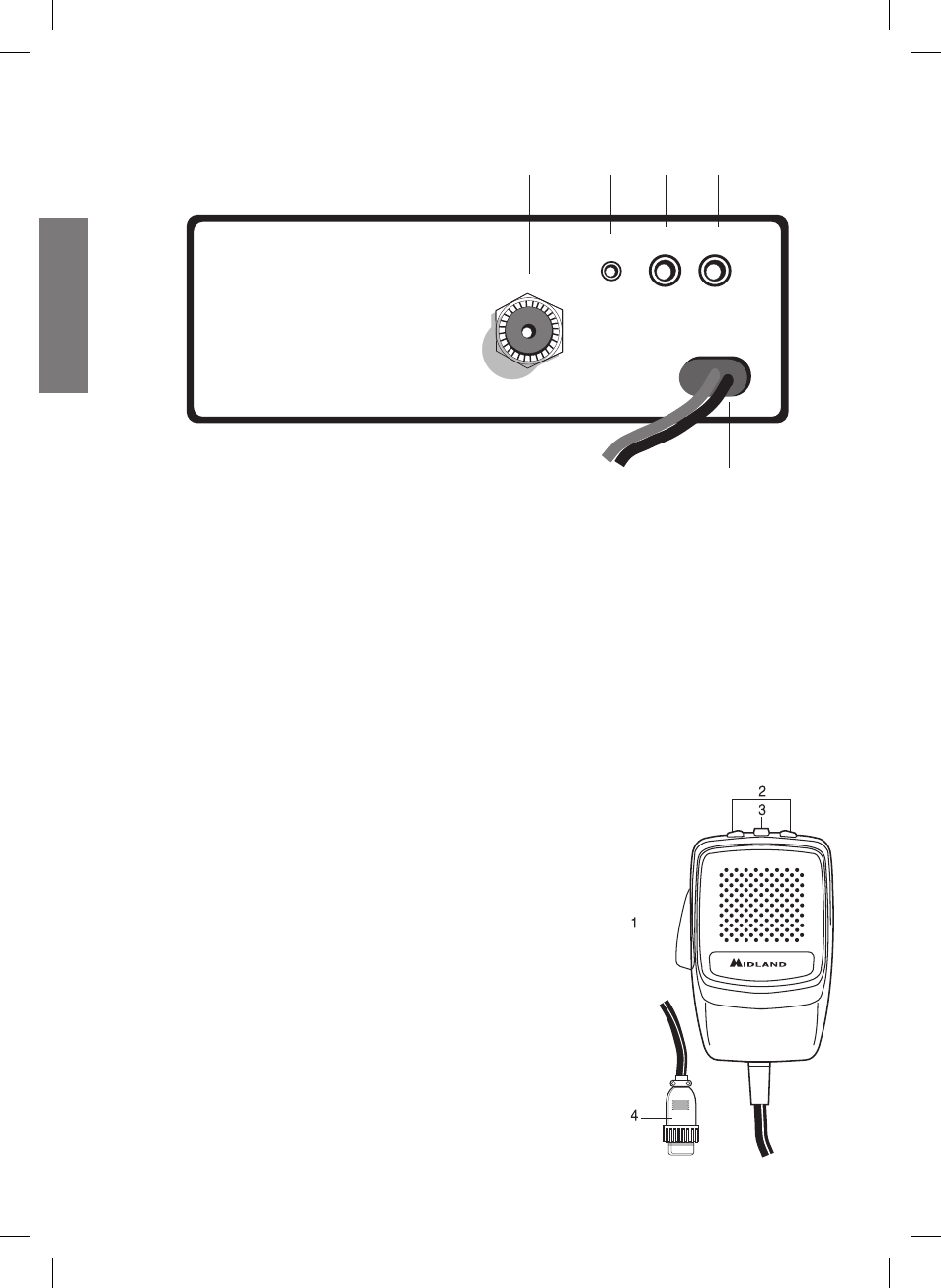

REAR PANEL
18. Antenna connector (SO239 connector type).
19. S. Meter jack: it allows an external “S. Meter” connection.
20. “PA” jack: by connecting with an external loudspeaker, you can use the unit as an
audio-amplifier.
21. ”EXT” jack: external loudspeaker jack (the internal loudspeaker is excluded).
22. Power 12.6V DC: power supply cable.
MICROPHONE
1. PTT: transmission button
2. UP/DOWN buttons: manual channel selector
3. LOCK button: it allows you to lock the UP/DOWN
buttons.
4. 6 pin microphone connector
19
20
21
22
23
ANTENNA
S-METER
PA
EXT
POWER
13,2 V DC
