SPECIFICATIONS AND PERFORMANCE:
CAMERA CONTROLLER
Case 19” 2U rack mount
Seal IP21
Supply Input 85-264V (universal) 47-440Hz
Power Requirement 30VA
Outstation Cable Length 100m (328’) maximum camera
to controller
Consult IST for longer lengths
Operating Temperature 0° to 40°C (32° to 104°F)
Storage Temperature -25° to 60°C (-77° to 140°F)
Relative Humidity 20% to 75% non condensing
Dimensions 88mm H x 483mm W x 355mm D
(3.5” x 19” x 14”)
Depth does not include handles
or connectors
VIEWPAK
The ViewPak is an all-in-one case, on removable wheels,
conveniently holds all of the ALLRAD components other
than the camera and cable. Shock mounted and light
weight, the case is available in two sizes, depending on
your choice of components. These include flat screen or
CRT monitor, DVR or VCR, character generator, micro-
phone, lighting power supply (LPS) and uninterruptable
power supply, as well as the camera CCU.
SPECIFICATIONS AND PERFORMANCE:
CAMERA CONTROLLER CONNECTORS
AC Power IEC 320 plug
Camera Input 23 way Burndy socket
Video Output 75R BNC
External Lighting Power 8 way Burndy plug

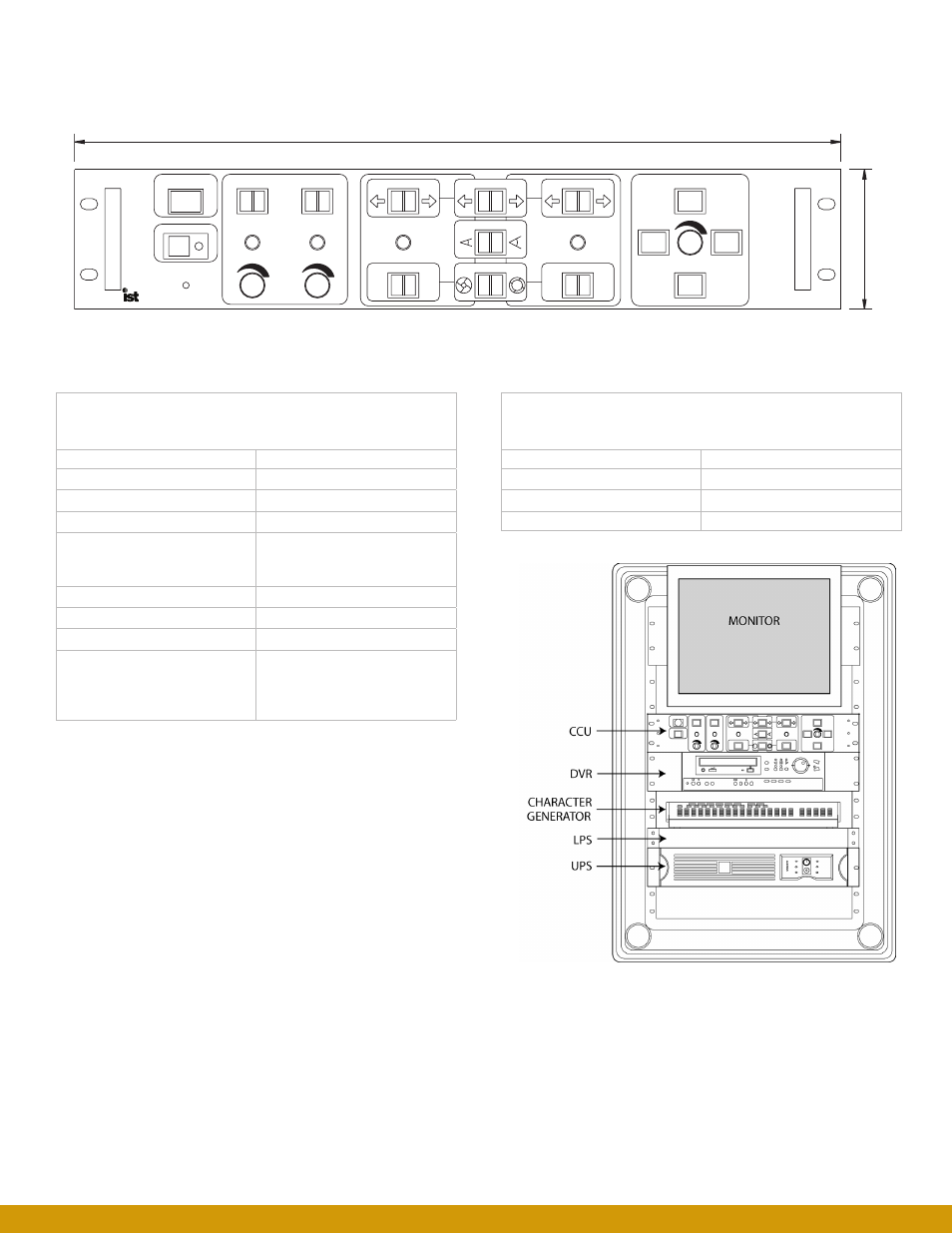

88 (3.5”)
483 (19”)
Mk2 ALLRAD Controller
MIN MAX MAN AUTO
POWER
ON
LED 1
OFF ON
AUTO IRIS
MACRO
RAD TOL
IRIS
ZOOM
FOCUS
AUTO MAN
PAN & TILT
AUTO EXPOSURE
CCD
AUTO FOCUS
HOME POSITION
MIN MAX
ON
LED 2
OFF ON
