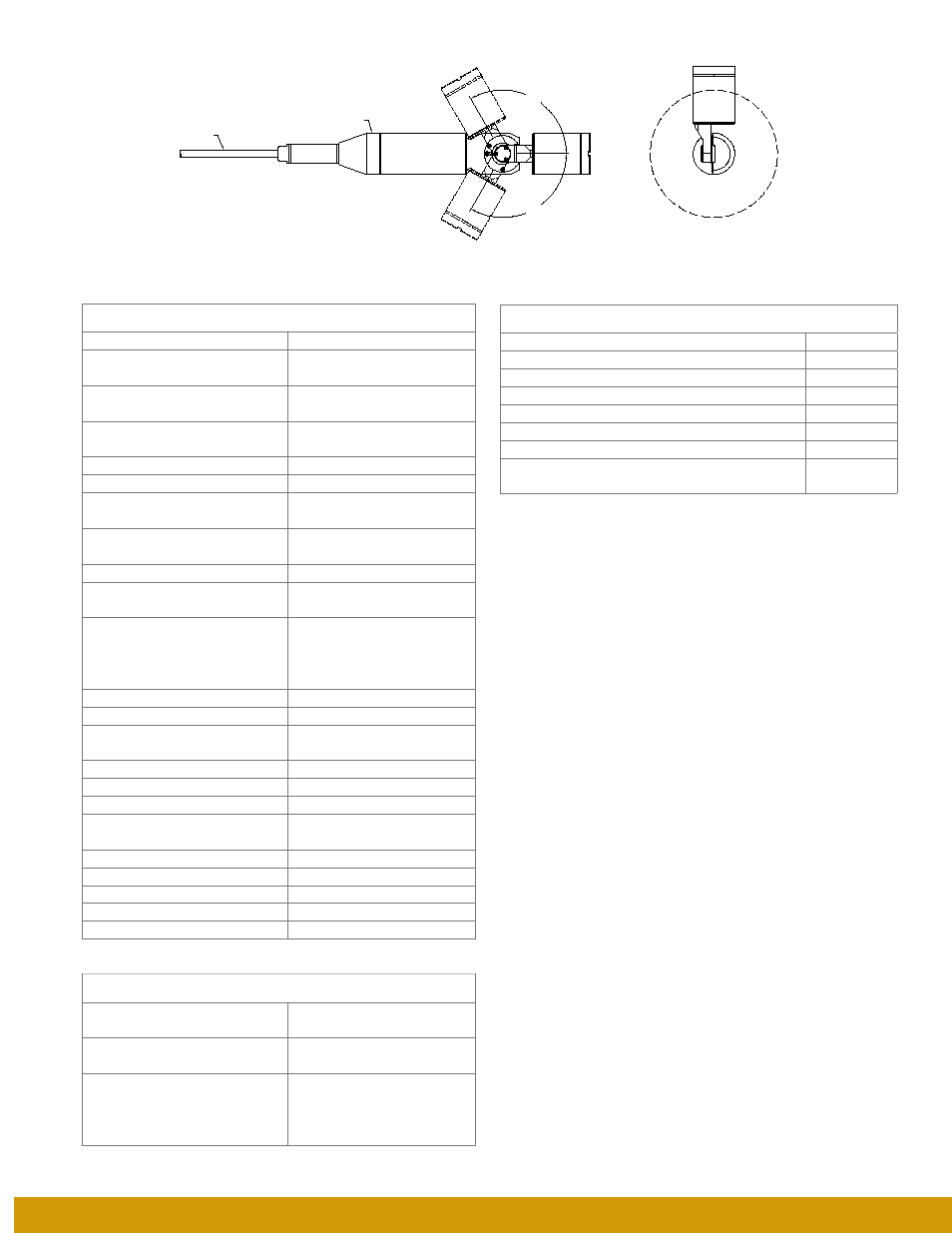

120°
120°
CONTINUOUS
OPTIONAL REAR
GUIDE FUNNEL
CABLE
sPeCIFICatIONs aND PerFOrMaNCe
CaMera
Image Sensor 1 /
4
” EX-view HAD CCD TM
Temperature Rating (Camera
Module) 0°C - 50°C (32°F - 122°F)
Resolution NTSC 470 TV lines
PAL 460 TV Lines
Zoom 10:1 optical (4.2mm - 42mm)
4:1 digital
Focus Manual or auto
Angle of View (H) 46° (Wide) to 5° (Tele)
Minimum Object Distance in Air 10mm (0.4”) wide angle
1000mm (39”) narrow angle
Minimum Object Distance in Water 13mm (0.5”) wide angle
1330 (52”) narrow angle
Iris Control Manual or Auto
Maximum Aperture f/1.8 @ f = 4.2mm
f/2.9 @ f = 42mm
Sensitivity 1.5 lux (f/1.8, 1 /
60
s (NTSC) or
1 /
50
s (PAL))
0.1 lux (f/1.8, 1 /
4
s (NTSC) or 1 /
3
s
(PAL))
Auto Gain Control -3dB to 28dB
Electronic Shutter Auto 1/1 - 1/10,000 sec.
Overall Dimensions Diameter: 63.5mm (2.5”)
Length: 345mm (13.6”)
Construction Stainless steel housing
Weight 2.4kg (5.3 lbs)
Depth Rating 60m (197’)
Radiation Tolerance 100Gy [ 60 Co] (H
2
O)
10 4 Rad [ 60 Co] (H
2
O)
Operating Dose Rate 100 Gy/hour (10 4 Rad/hour)
Range - Pan Continuous
Range - Tilt +/-120°
Speed - Pan Variable (up to 30°/sec)
Speed - Tilt Variable (up to 15°/sec)
LIGHtING
LEDs x 4 (Spot) Beam Angle 12°. Up to 550 lux
at 1m
LEDs x 4 (Flood) Beam Angle 30°. Up to 200 lux
at 1m
Available External Lamps
(Tracking)
Underwater 50W lamp.
External lamps require a
separate lighting power supply
(see Accessories).
CaMera Part NuMBers
PAL Camera C913PTA03A
PAL Camera with External 50W Lamp C913PTA05A
PAL Camera with Dosimetry C913PTA06A
PAL Camera with Dosimetry and External 50W Lamp C913PTA09A
NTSC Camera C913PTA13A
NTSC Camera with External 50W Lamp C913PTA15A
NTSC Camera with Dosimetry C913PTA16A
NTSC Camera with Dosimetry and External 50W
Lamp C913PTA19A
