Electrical
Input Voltage ................................... 24, 120, or 230 VAC, 50/60 Hz;
switch selectable for 120/230 VAC
inputs ±10%
Power Consumption ........................ Maximum 70 VA per system
Heater and Defroster ....................... Thermostatically controlled
Electrical Connections ..................... Two power source connections made
at mount location with wire splices
and one ground wire splice; one BNC
receptacle and four wire splices at
mount location for RS-422 D and P
protocols; two wire splices for open
collector auxiliary output
Aux 2 ................................................ Open collector output with 2-second
activation; connected relay must
require no more than 32 VDC and 40
mA to energize relay coil; wire length
between RC510 and relay must be
less than 100 ft (30 m)
Video Coaxial Cable
Max. Wiring Distances .................... Cable Type* Max. Distance
......................................................... RG59/U 750 feet (229m)
RG6/U 1,000 feet (305m)
RG11/U 1,500 feet (457m)
* Minimum cable requirements: 75 ohms impedance; all-copper center
conductor; all copper braided shield with 95% braid coverage
Mechanical
Pan Movement ................................ 360° Continuous pan rotation
Vertical Tilt ....................................... Unobstructed +33° to -83°
Variable Pan/Tilt Speed ................... Pan: 0.1° to 40°/sec variable-speed
operation, 100°/sec Turbo
Tilt: 0.1° to 20°/sec variable-speed
operation
Preset Speeds .................................. Pan: 100°/sec
Tilt: 30°/sec
Camera Mounting ............................ Integrated camera sled assembly
Latches ............................................ One link-lock, No. 3 stainless-steel
latch; can be secured with padlock
(not supplied)
Certifications/Ratings
• CE, Class B (all models)
• UL listed to Standard 2044 (NTSC models)
• cUL listed to CSA Standard 22.2 No. 1-94 (NTSC models)
• FCC, Class B (NTSC models)
• NEMA 4X and IP66
Specifications and Performance
General
Construction .................................... Die-cast, extruded and sheet
aluminum; stainless steel hardware
Finish ............................................... Gray polyester powder coat
Viewing Window ............................. 0.23" (5.84 mm) thick, optically clear
impact/scratch-resistant coated
LEXAN
®
Operating Temperature .................... -50° to 122°F (-45° to 50°C) for
sustained system operation or 140°F
(60°C) absolute maximum. Within two
hours after power-up, the entire unit
can de-ice and be operational from a
temperature of -13°F (-25°C).
Operating Environment .................... Will remain operational in 90mph
wind conditions; withstands 130mph

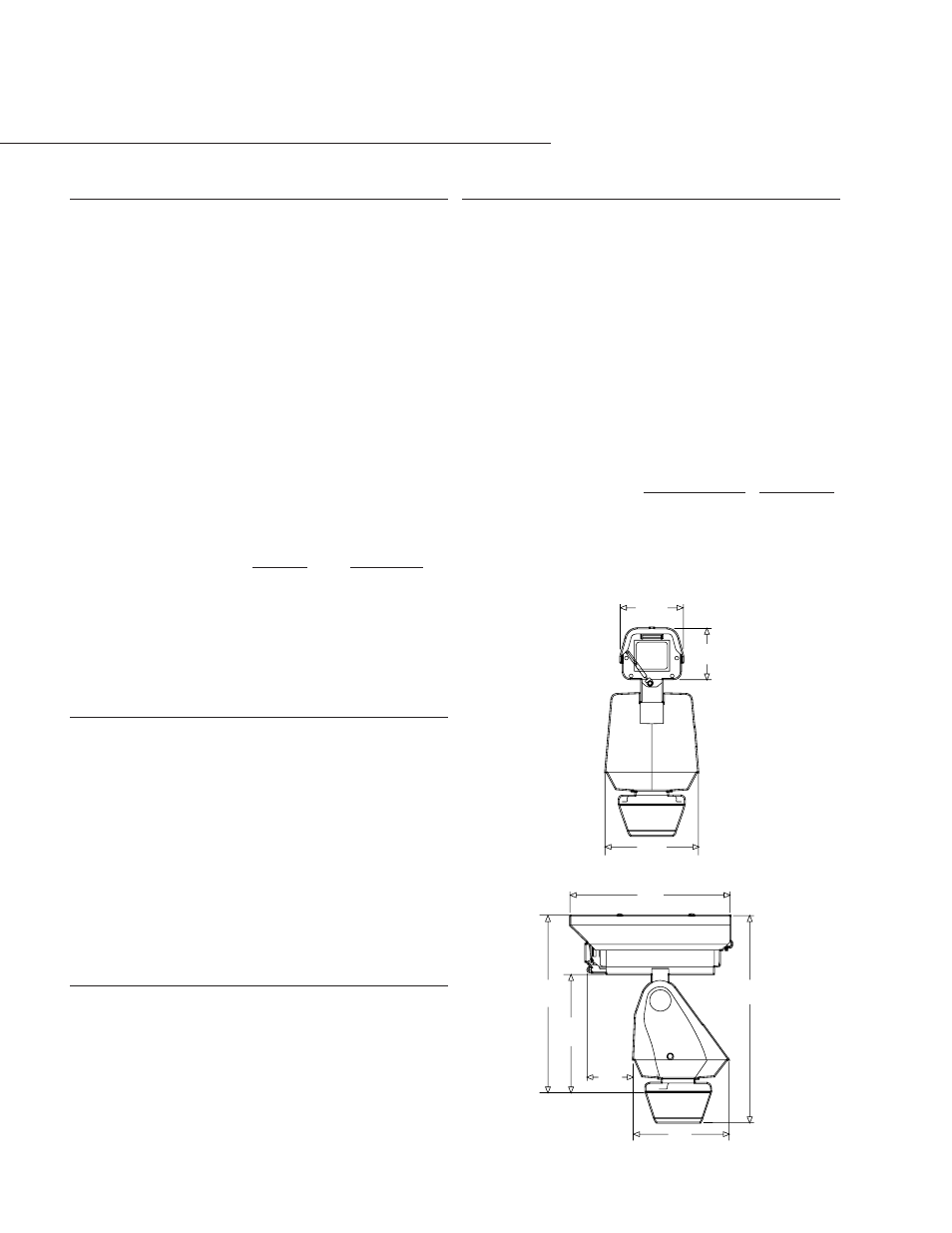

Dimensions ...................................... See dimension drawing
Weight ............................................. w/Pedestal Adaptor w/Wall Mount
Unit: Standard w/IOP 20lb (9.0)kg 22lb. (9.9kg)
w/Wiper and IOP 21lb (9.5kg) 23lb (10.4kg)
Shipping: Standard w/IOP 25lb (11.3)kg 28lb. (12.6kg)
w/Wiper and IOP 26lb (11.7kg) 29lb (13.1kg)
7.9
(20.0)
3.6
(9.1)
9.8
(24.9)
14.6
(37.0)
17.45
(44.32)
13.3
(33.9)
7.7
(19.7)
5.2
(13.3)
3.9
(9.9)
LEXAN ® is a registered trademark of the General Electric Company.
