Specifications and Performance
Camera Outstation
Housing Material ........................ Stainless steel
Radiation Tolerance .................... 500 Gy (5 x 10
4 rads) (Si) 137 Cs
Operating Dose Rate .................. 10 Gy/hour (1 x 10 4 rads) (Si) 137 Cs
Operating Temp. in Air ................ 0°C to 40°C (32°F to 104°F)
Operating Temp. in Water .......... 0° to 50°C (32° to 122°F)
Sealing ........................................ IP68 (IEC529) 58m water depth (190 ft)
Maximum Operating Depth ........ 20 meters (66 ft)
Maximum Submersion Depth ..... 60 meters (197 ft)
Camera Midpoint Connector ...... 24-way
Cable Connection ....................... 18-way remote handling LEMO
or 12-way Fischer
Pan and Tilt ................................. Speed: 6° per second
Travel: ±180° (adjustable)
Size with Pan and Tilt ................. 283mm (H) x 254mm (W) x 243 (D)
(11.15” x 10.4 x varying 9.56”)
Weight with Pan and Tilt ............ 23kg (50.6 lbs)
Camera Channel Performance
Horizontal Resolution ................. 470 tvl NTSC (wide); 460 tvl PAL (wide)
Illumination ................................. 4 lux min
Signal to Noise Ratio ................. >48dB
Optics
Zoom Lens ................................... 10x optical (4.2-42mm); 4x digital
Iris ............................................... Auto F1.8
Electronic Shutter ....................... Auto (1/1-1/10000 s)
8 Channel Camera System Sub-rack
Nominal Power Supply Input ...... 100-200/200-240V (auto-ranging); 50/60 Hz
Operation Range ......................... 85-132/170-264V (auto-ranging); 47-440 Hz
Power Requirement .................... 150VA for a fully populated 8-channel CCU
Outstation Cable Length ............. 200m (656’) maximum CCU to camera
(consult IST)
Operating Ambient Temp. ........... Fully populated, convection cooling:
0°C to 40°C (32°F to 104°F)
Up to 6 channels, convection cooling:
0°C to 50°C (32°F to 122°F)
Fully populated, forced air cooling at 500
liters (132 gallons)/minute:
0°C to 50°C (32°F to 122°F)
Relative Humidity ....................... 20%-75% non-condensing
Size ............................................. 134mm (H) x 483mm (W) x 300mm (D)
(5.3” x 19” x 11.8”)
(excluding handles and connectors)
Weight ........................................ 7kg (15.4lbs)
CCU Connector Types
AC Power .................................... IEC 320 plug
(fitted with T4A fuse)
Camera Inputs (8 off) .................. 15-way D type socket
Video Outputs (8 off) ................... 75R BNC
Genlock Input .............................. 75R BNC (with 75R termination switch)
Sync Pulse Output ...................... 75R BNC
Serial Control Input .................... 9-way D type plug
Serial Control Loop Through ....... 9-way D type socket
Optional Accessories
Camera Attachments .................. Camera allows for two lighting
attachment positions
Lights .......................................... Under water lights up to 200W using 50,
75 or 100W lamps; In-air lights up to 150W
using 50 W sealed or 75W vented lights
Lighting Sub-rack ........................ 8 Channel
REES
S981
w w w . i s t i m a g i n g . c o m
204 IST Center
Horseheads, NY 14845 USA
Tel: 607-562-4300
800-432-1478
Fax: 607-562-4392
E-mail: [email protected] Station Road
Alton, Hampshire
GU34 2PZ, UK
Tel: 01420 541600
Fax: 01420 541700
E-mail: [email protected] Kaiser-Konrad-Str 93a
D 53225 Bonn Deutschland
Tel: 0228 625008
Fax: 0228 626300
E-mail: [email protected]
Imaging and Sensing Technology Corporation
19501 144th Avenue NE
Suite F1100
Woodinville, WA 98072 USA
Tel: 425-881-0778
Fax: 425-869-0667
E-mail: [email protected]
0305
IST reserves the right to amend or change the information on this sheet without prior warning.
12954 Stone Creek Dr.
Suite C
Pickerington, OH 43147 USA
Tel: 614-367-2050
Fax: 614-367-2464
E-mail: [email protected]

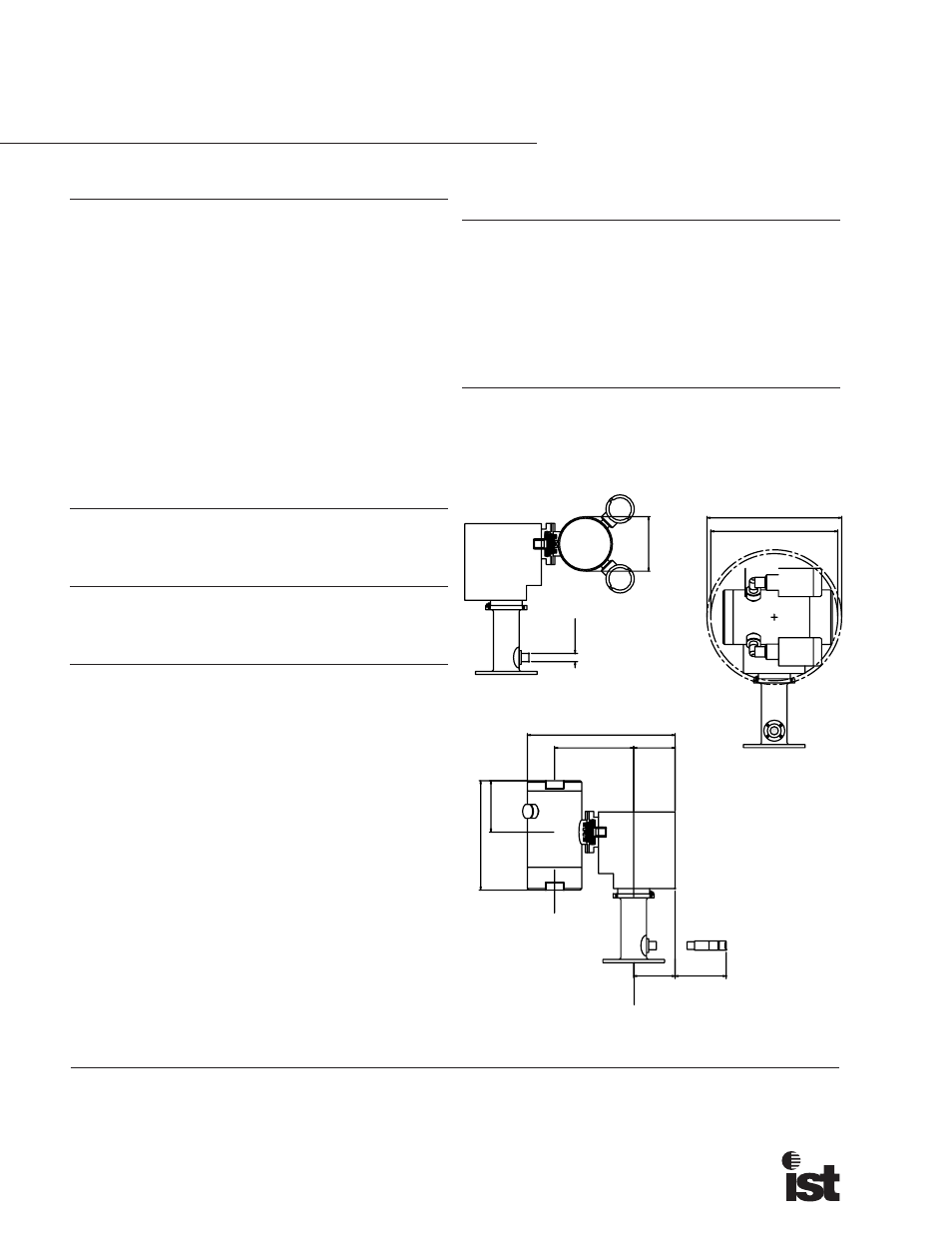

CAMERA WEIGHT
14.0kg
PAN & TILT WEIGHT
9.0kg
FISCHER
105 SERIES
CONNECTOR
FISCHER
105 SERIES
107
(4.2")
262 (10.3")
246 (9.7")
213 (8.4")
99
(3.9")
287 (11.3")
166
(6.1")
81
(3.2")
81
(3.2")
