Page 51
Chapter 3: Basic Operations
39

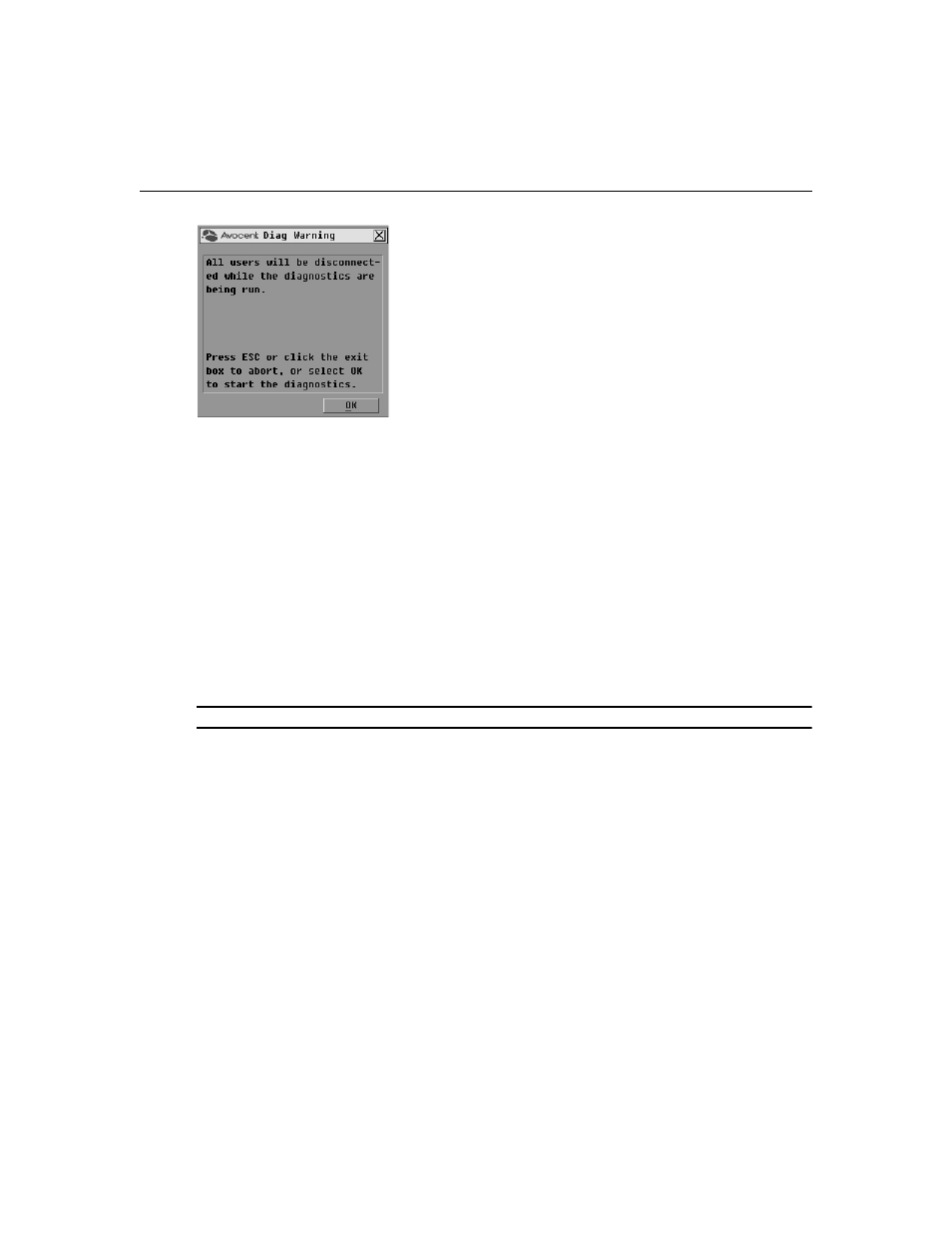

Figure 3.22: Diagnostics Warning Dialog Box
3.
Click OK
to begin diagnostics.
-or-
Click X or press
Escape
to exit the dialog box without running a diagnostic test.
4.
All users are disconnected and the Diagnostics dialog box displays.
5.
As each test is finished, a pass (green circle) or fail (red x) symbol displays. The test is com-
plete when the last test’s symbol displays.
Broadcasting to Servers
The analog user can simultaneously control more than one server in a system to ensure that all
selected servers receive identical input. You can choose to broadcast keystrokes and/or mouse
movements independently.
NOTE: You can broadcast to up to 16 servers at a time, one server per ARI port.
To access the Broadcast dialog box:
1.
Press
Print Screen
. The Main dialog box will appear.
2.
Click Setup
-
Broadcast. The Broadcast dialog box displays.
