7/9/2013

CLUTCH_NEMA_AIR_MANUAL

Page 3 of 4

V.

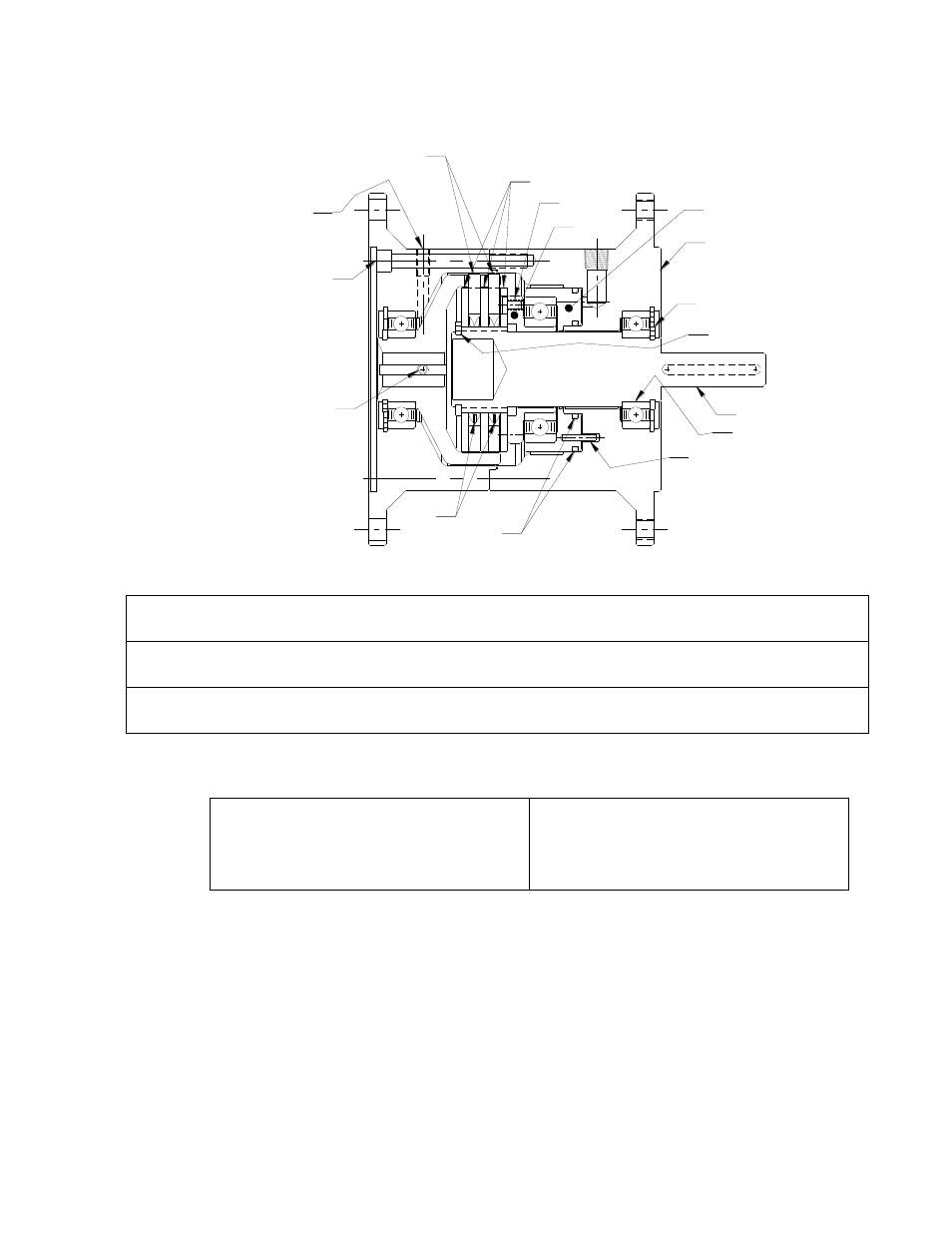

Parts diagram

CYLINDER

RETAINER RING [CYLINDER]

RETAINER RING [DISCS]

DRIVE HUB

PIN

O-RING

BEARING

SCREW

SET SCREW

SET SCREW

ACCESS HOLE

[PLUGGED]

FRICTION DISC

DRIVE DISC

SCREW

CONE

PISTON

SPRING

Repair Kit:

Part number = Clutch

Product Number + “-RPRK” (e.g. C3C2R-56H-RPRK)

Additional
Parts:

Contact Mach III to obtain a complete listing of additional parts kits available for
your specific brake. Please reference product number when calling or e-mailing.

Repair
services:

Factory repair is available. A return materials authorization (RMA) number must
be obtained prior to sending any unit in for repair


VI.

Repair Kit Installation Procedure

Tools Required

Hex Wrench Set
Rubber Mallet or similar soft face hammer
Retainer (snap) Ring Pliers
Scraper

Compounds Required

Grease
O-ring Lubricant
Loctite

®

#609 Retaining Compound

Anti-Seize Lubricant (for re-installation)

A. COMPLETE DISASSEMBLY

(1)

Remove set screw plug and loosen set screw.

(2)

Remove clutch from shaft and place in horizontal position.

(3)

Remove three cap screws to separate case.

(4)

Remove

“retainer ring [discs]” from drive hub and remove disc package with springs.

Note that the first drive disc contains a milled hole. It is important that this disc is
placed over screw in cone during reassembly.

(5)

Remove

“retainer ring [cylinder]”.
