Mach III Clutch C6E2G-STH & C6E2G-STL - Manual (Page 3)

7/9/2013 CLUTCH_ENDSHAFT_BRNZBUSH_AIR_RD_MANUAL Page 3 of 4
V. Routine Maintenance
When installed and operated according to the preceding guidelines, Mach III Clutch
products should require little or no routine maintenance. A repair kit is available which
contains all parts subject to typical wear: friction discs, springs and O-rings.

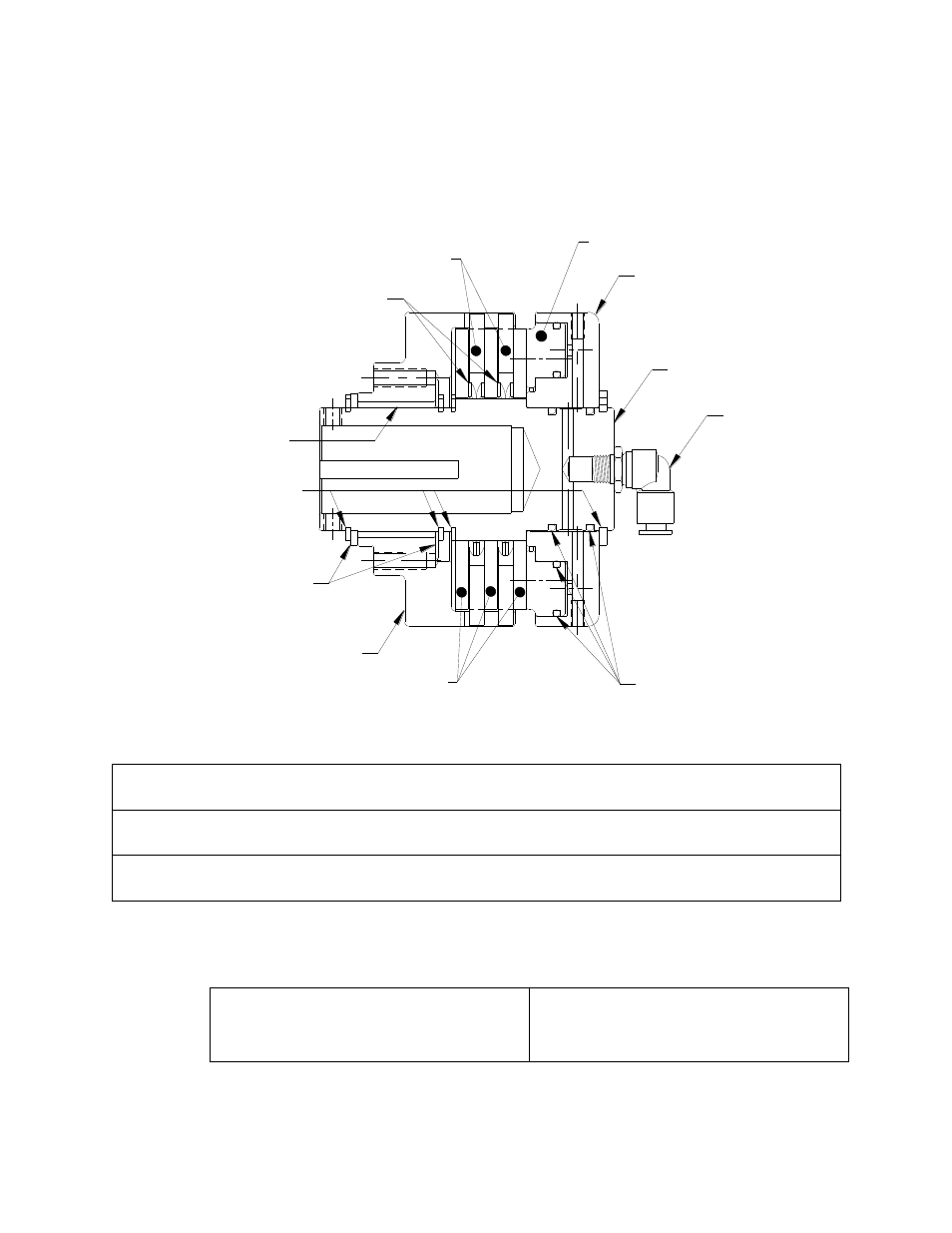

VI. Parts diagram
Repair Kit: Part number = Clutch Product Number + “-RPRK” (e.g. C3E2R-STH-RPRK)
Additional
Parts: Contact Mach III to obtain a complete listing of additional parts kits available for
your specific clutch. Please reference product number when calling or e-mailing.
Repair
services: Factory repair is available. A return materials authorization (RMA) number must
be obtained prior to sending any unit in for repair
VII. Repair Kit Installation Procedure
Tools Required
Hex Wrench Set
Retainer (snap) Ring Pliers
Compounds Required
Grease
O-ring Lubricant
Anti-Seize Lubricant (for re-installation)
Continued on next page.
RACE
BUSHING
RETAINER RING
DRIVE DISC
SPRING
SLEEVE
PISTON
FRICTION DISC
CYLINDER
DRIVE HUB
AIR SEAL
O-RING
