Mach III Clutch EBD4K-STH - Manual (Page 3)

7/9/2013 CLUTCH_ENDSHAFT_SPRING_HD_MANUAL Page 3 of 4
V. Routine Maintenance
When installed and operated according to the preceding guidelines, Mach III Clutch
products should require little or no routine maintenance. A repair kit is available which
contains all parts subject to typical wear: friction discs, springs and O-rings.

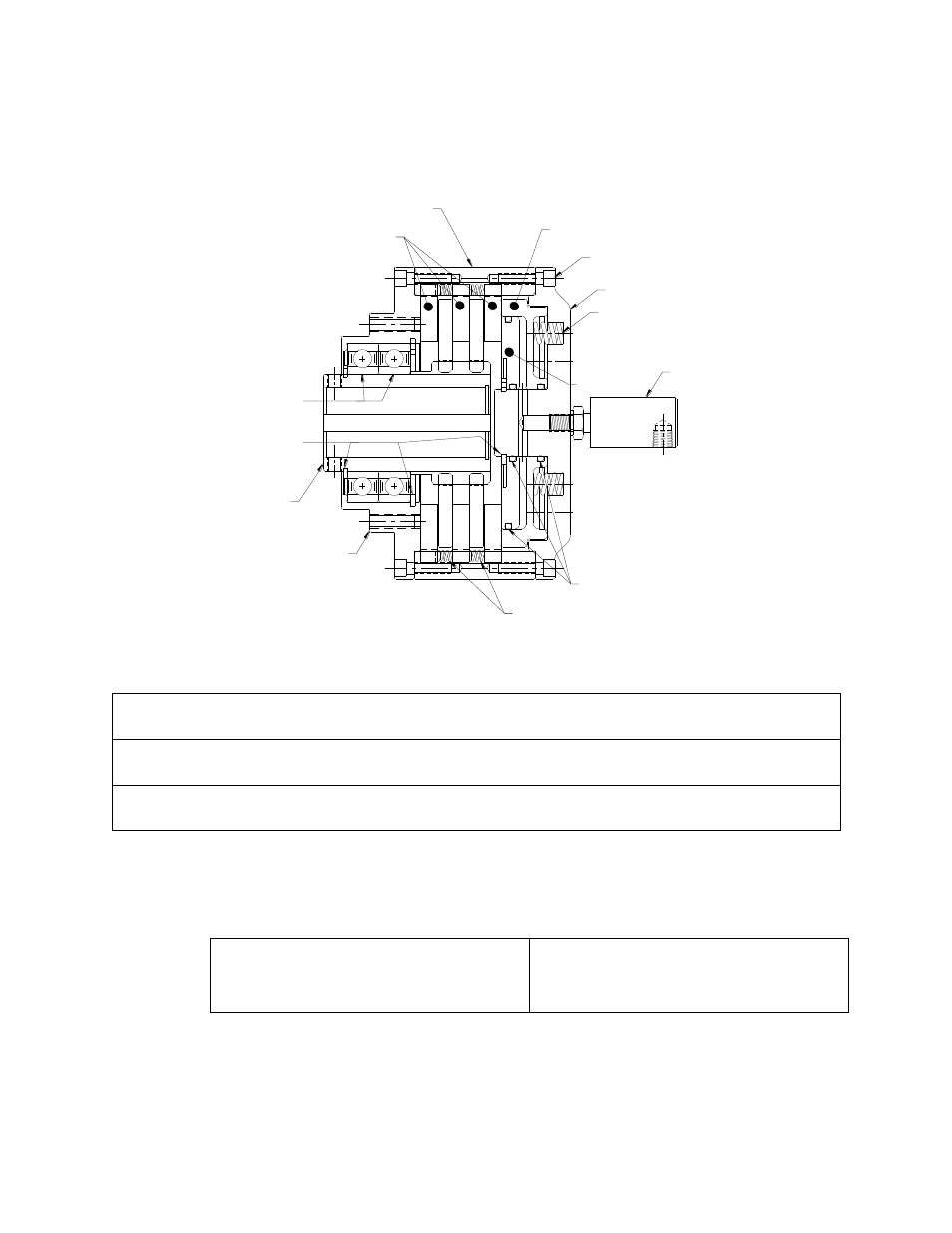

VI. Parts diagram
Repair Kit: Part number = Clutch Product Number + “-RPRK” (e.g. E5D3K-STH-RPRK)
Additional
Parts: Contact Mach III to obtain a complete listing of additional parts kits available for
your specific clutch. Please reference product number when calling or e-mailing.
Repair
services: Factory repair is available. A return materials authorization (RMA) number must
be obtained prior to sending any unit in for repair
VII. Repair Kit Installation Procedure
Tools Required
Hex Wrench Set
Retainer (snap) Ring Pliers
Compounds Required
Grease
O-ring Lubricant
Anti-Seize Lubricant (for re-installation)
Continued on next page.
CYLINDER
AIR SEAL
PISTON
SEPARATOR SPRING
ENGAGEMENT SPRING
RING GEAR
FRICTION DISC
DRIVE HUB
BEARING
RETAINER RING
SLEEVE
O-RING
SPRING RETAINER
CAP SCREW
