WSTFX WIRELESS DMX TRANSMITTER
Version 0.0 OWNERS MANUAL 12/13/2007
www.lightronics.com
Lightronics Inc. 509 Central Drive Virginia Beach, Va 234354 757 486 3588
Push the link control button on the transmitter once
(do not hold it down). The indicator LED will go to a
fast flash for about 10 seconds. It will then go to an
ON state.
The link indicator on the receiver will also go to fast
flash and may continue this for several more seconds
after the transmitters indicator goes to ON. The link
indicator on the receiver will go to an ON state when
the link is stable.
UNLINKING RECEIVERS AT THE TRANSMITTER
Note that receivers link to a different transmitter will
not be released.
Hold the link control button down for about 5 seconds.
The indicator LED will go to slow flash showing that
no links are active.
The link indicator on the receiver unit(s) will go OFF
.
MAINTENANCE AND REPAIR
OWNER MAINTENANCE
There are no user serviceable parts in the unit. Service
by other than Lightronics authorized agents will void
your warranty.
CLEANING
The unit exterior may be cleaned using a soft cloth
dampened with a mild detergent/water mixture or a
mild spray-on type cleaner. DO NOT SPRAY ANY
LIQUID directly on the unit. DO NOT IMMERSE the
unit in any liquid or allow liquid to get into the
controls. DO NOT USE any solvent based or abrasive
cleaners on the unit.
OPERATING AND MAINTENANCE ASSISTANCE
Dealer and Lightronics Factory personnel can help you
with operation or maintenance problems. Please read
the applicable parts of this manual before calling for
assistance.
If service is required - contact the dealer from whom
you purchased the unit or contact Lightronics, Service
Dept., 509 Central Drive, Virginia Beach, VA 23454
TEL: (757) 486-3588.

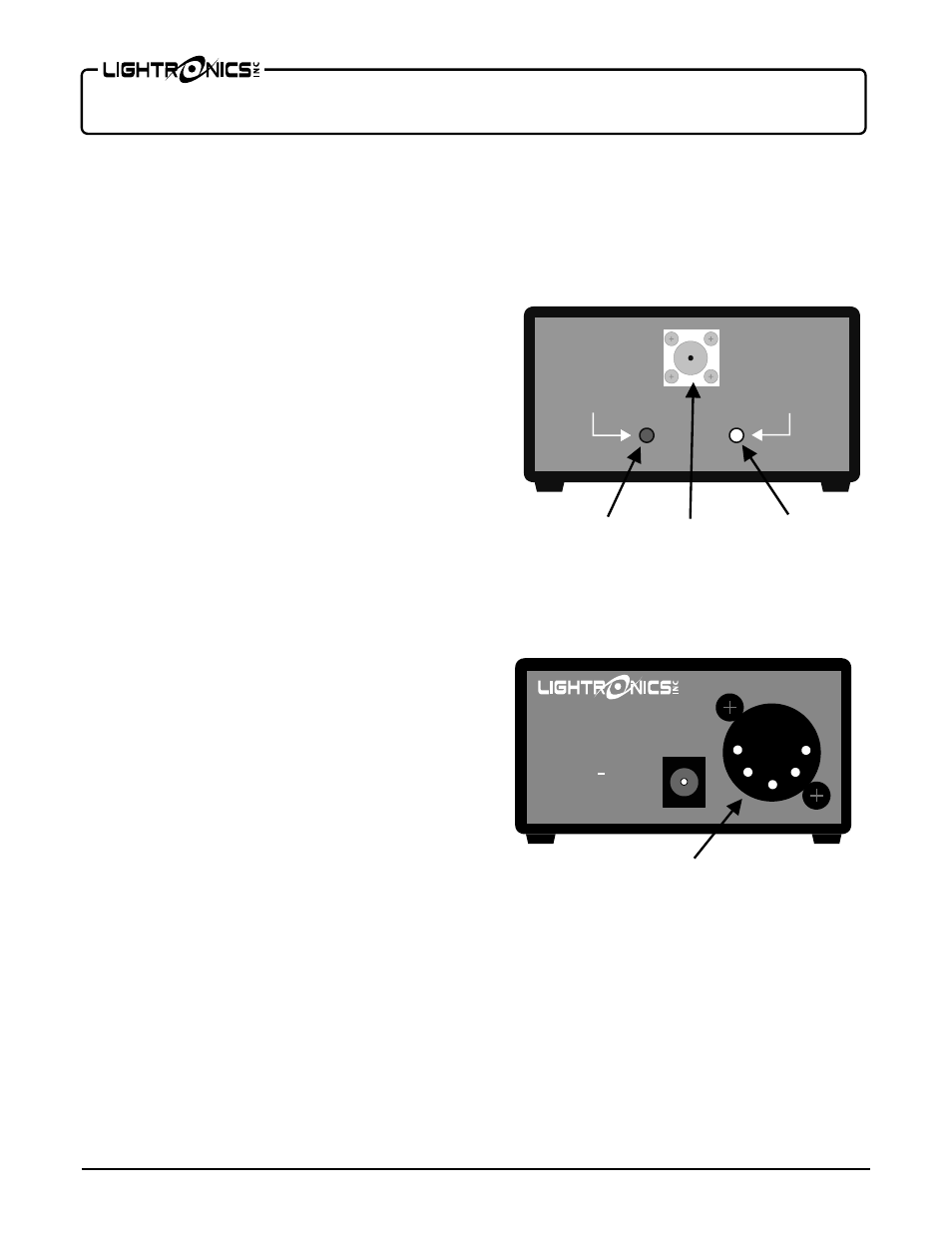

LED ON SOLID
LINK + DMX OK
LED FLASHING
NO DMX IN
PUSH ONCE TO
LINK TO ALL FREE
RECEIVERS
HOLD > 5 SEC.
TO RELEASE LINK
LED FAST FLASH
LINK IN PROGRESS
ANTENNA
CONNECTOR
LINK CONTROL
BUTTON
STATUS
INDICATOR
LED
FRONT VIEW
5 PIN
MALE
XLR CONNECTOR
WSTXF
8 15VAC
700mA
DMX IN
POWER
Wireless DMX Transmitter
REAR VIEW
