XC-42 COMPACT DMX DIMMER
Version 0.2 OWNERS MANUAL 06/12/2007
www.lightronics.com
20070612
drp
Lightronics
Inc.
509
Central
Drive
Virginia
Beach,
VA
234354
757
486
3588
MAINTENANCE AND REPAIR
TROUBLESHOOTING
• Check that you have power applied to the dimmer.
• Check that all light fixtures are functional.
• Check the fuses.
• Check the DMX cable.
• Check the console setup for correct patching.
REPAIR
FUSE REPLACEMENT
The only user serviceable parts are externally
accessible fuses. Replace fuses ONLY with 10 Amp,

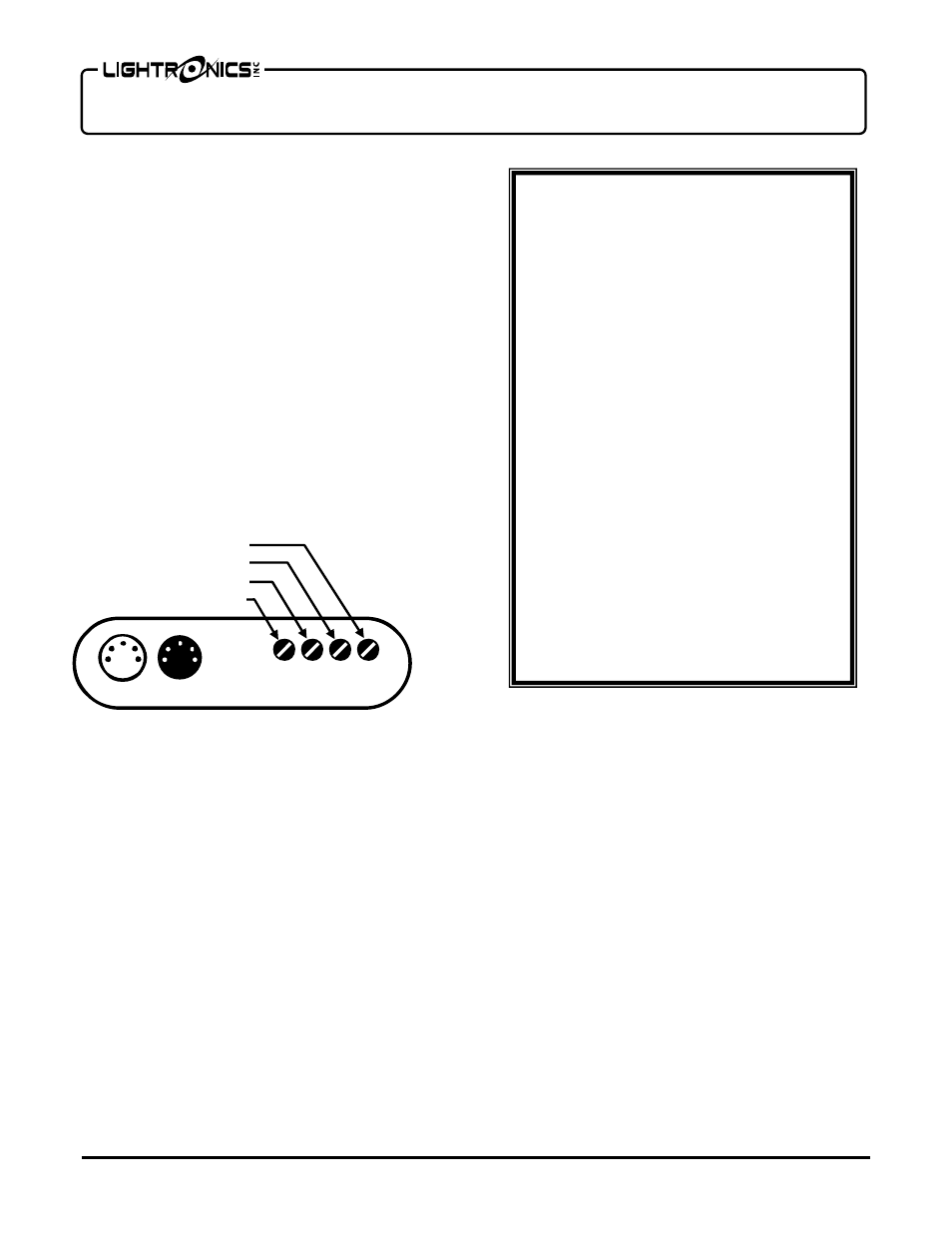

250VAC, fast blow fuses. The diagram below
identifies the fuse for each channel
Internal service on the unit by other than Lightronics
authorized agents will void the warranty.
If service is required, contact the dealer from whom
you purchased the dimmer, or Lightronics Service
Department, 509 Central Drive, Virginia Beach, VA
23454. Tel: 757 486 3588.
F2 - Channel B
F4 - Channel D
F1 - Channel A
F3 - Channel C
SPECIFICATIONS AND FEATURES
Channels
4
Channel Capacity
1200 Watts
Total
Power
4800
Watts
Power Requirements
2 circuits 120VAC, 20 Amps each
Power Connections
2 Edison Plugs
Control Protocol
DMX-512, RS-485, Architectural,
Optional
Wireless
DMX
Control Connections
Dual 5 pin XLR
Frequency
50/60
Hz
Fusing
10
Amp
each
channel
Preheat
Control
Soft
Start
Response Curves
Incandescent, LED, Fluorescent,
Relay
Mode
Filter Rise Time
350 Microseconds
Efficiency
97%
Size 9.5"L
X
8.0"W
X
3.375"D
Weight
6.7
Pounds
