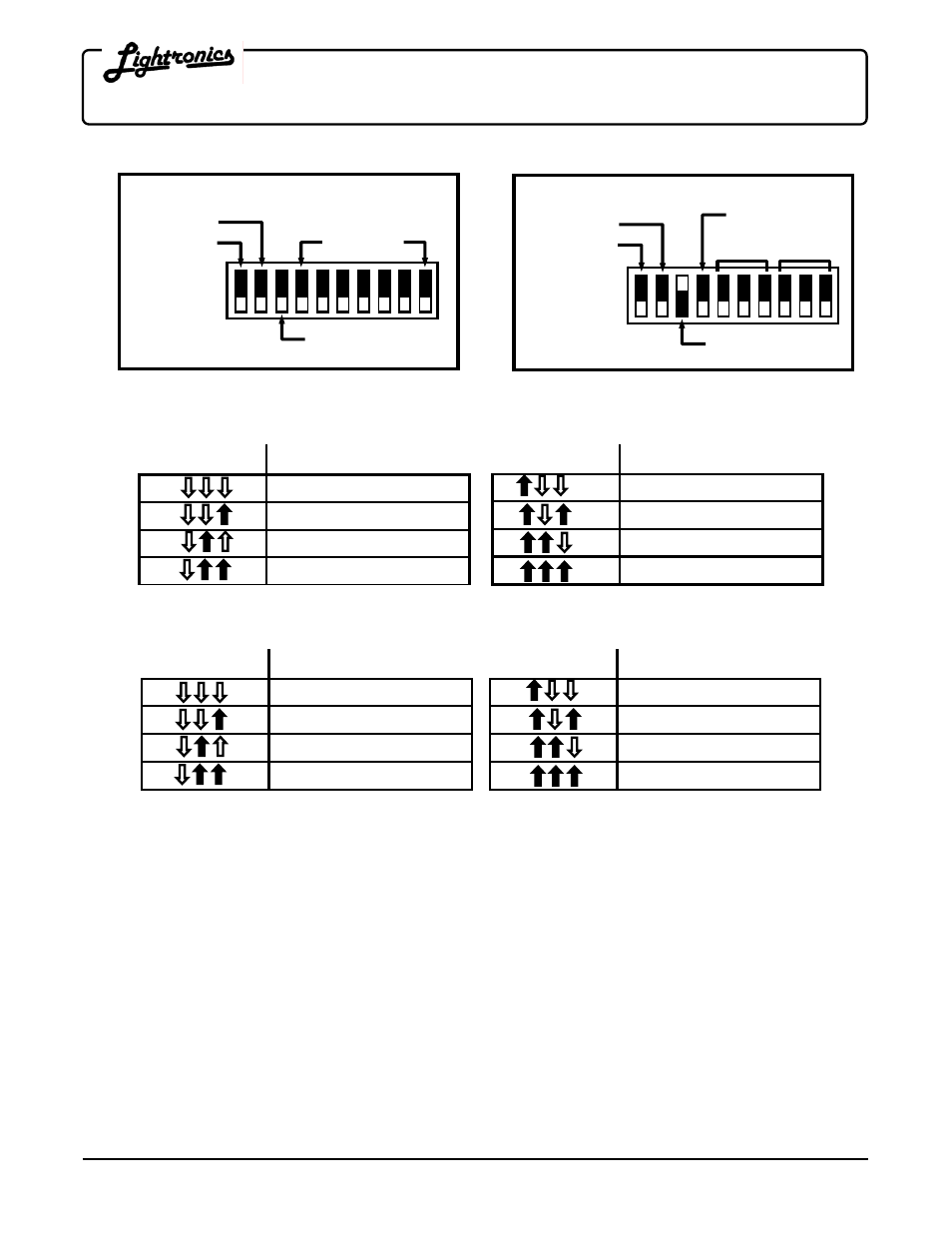

ADDRESS AND CONTROL SWITCH SETTINGS
NORMAL MODE SWITCH FUNCTIONS
NORMAL/CHASER
(down for normal)
NORMAL/CHASER
(up for chaser)
CHASER MODE SWITCH FUNCTIONS
CHASER CHASER
PATTERN TIMING
BOUNCE
RELAY C/D
RELAY A/B
ADDRESS
RELAY C/D
RELAY A/B
CHASER PATTERN SELECTION
SWITCHES PATTERN
3 chan. sequence +
3 chan. build
3 chan. build/unbuild
2 chan. alternating
SWITCHES PATTERN
4 chan. sequence
4 chan. build
4 chan. build/unbuild
4 chan. random
CHASER TIMING SELECTION
SWITCHES STEP TIME (Duration)
.5 seconds
1.0 seconds
2 seconds
4 seconds
SWITCHES STEP TIME (Duration)
8 seconds
16 seconds
32 seconds
64 seconds
MAINTENANCE AND REPAIR
TROUBLESHOOTING
• Check the multiplex and/or DMX cable.
• Check the settings of the dimmer DIP switches.
• Check the console setup for correct patching.
• Check that you have power applied to the dimmer.
• Check that all light fixtures are functional.
• Check the fuses.
REPAIR
The only user serviceable parts are externally accessible fuses. Replace fuses ONLY with 10 Amp, 250VAC, fast
blow fuses. Internal service on the unit by other than Lightronics authorized agents will void the warranty.
If service is required, contact the dealer from whom you purchased the dimmer, or Lightronics, Service
Department, 509 Central Drive, Virginia Beach, VA 23454. Tel: 757 486 3588.
