Portable Wireless Sound System
FRONT PANEL
12V DC EXT POWER
A special jack used to connect an external 12 Volt DC source to the unit to substitute for the “on-board” battery pack.
It is most commonly used for connecting the LONG RANGER III to a vehicle cigarette lighter receptacle. When an
external power source is connected to this jack, the on-board battery pack is automatically disconnected.
EXTERNAL 8 OHM SPEAKERS
Two jacks which are used to connect external 8 ohm horns or speakers such as the Lectrosonics H300 horn or
ES300 column speaker.
OFF
RF
12V DC
OUTPUT
CHARGE UNTIL
LAMP GOES OUT
CH-40
CHARGER
POWER
AUX IN/OUT
MIC LINE
WIRELESS
MICROPHONE
VOLUME
AUXILIARY
INPUT
VOLUME
MOD
LEVEL
MAIN HORN
DISCONNECT
DUAL – CHANNEL READY
EXTERNAL
8 OHM SPEAKERS
12V DC
EXT POWER
LECTROSONICS
RIO RANCHO, NM MADE IN USA

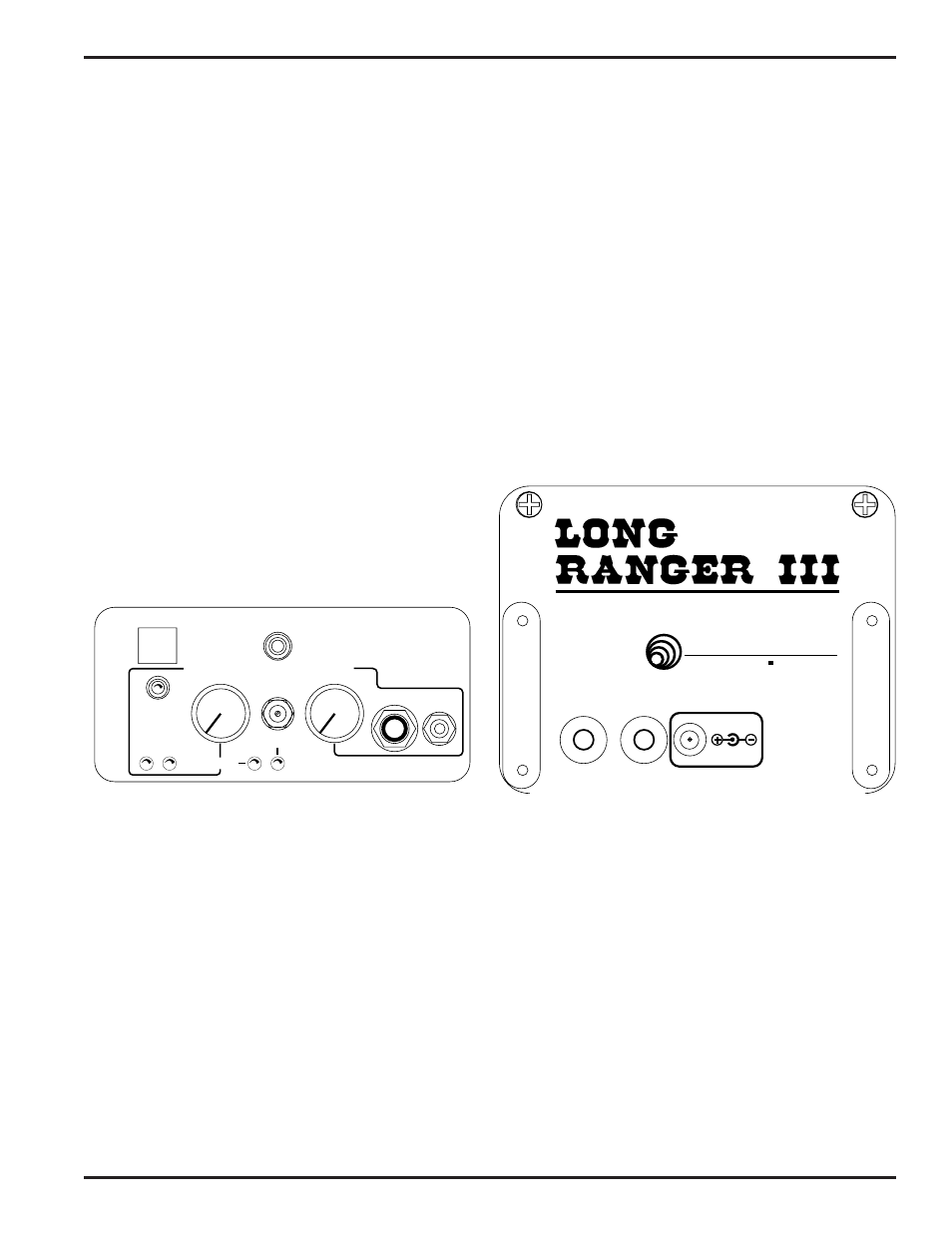

Figure 1 - Long Ranger III Control Panel Figure 2 - Long Ranger III Front Panel
