AL-CAT5SW Installation Instructions
1. Slots required in Cable Grommet to insert wires. (Cable Grommet
is removable)
2. Strip back CAT5 cable jackets and then strip the color coded twisted pair wires.
Loosen the individual screw terminals and insert the twisted pair wires into the
terminal blocks, tighten screw to secure wire. Note that the cable's twisted pair
wires must enter the terminal blocks as shown. The pc board should be removed
to ease wiring and ensure proper insertion of the twisted pair wires.
3. Attach ground wire to the included Ground Lug (12 AWG max.) and attach
it to terminal inside the protector. This ground lug can be mounted below
the pc board if attaching an additional shielding ground to the protector's
ground terminal (see diagram below).
Grounding Note: To ensure proper operation of protector, install an
earth ground to the ground lug in the protector. Please refer to the
National Electric Code (or your local codes) for additional information
or contact a licensed electrician for assistance.
4. If mounting this unit to a wall or other surface, break-away holes are
provided on the rear of the unit.
Note: This unit provides Bi-Directional Protection, input and output
cables may be interchanged.

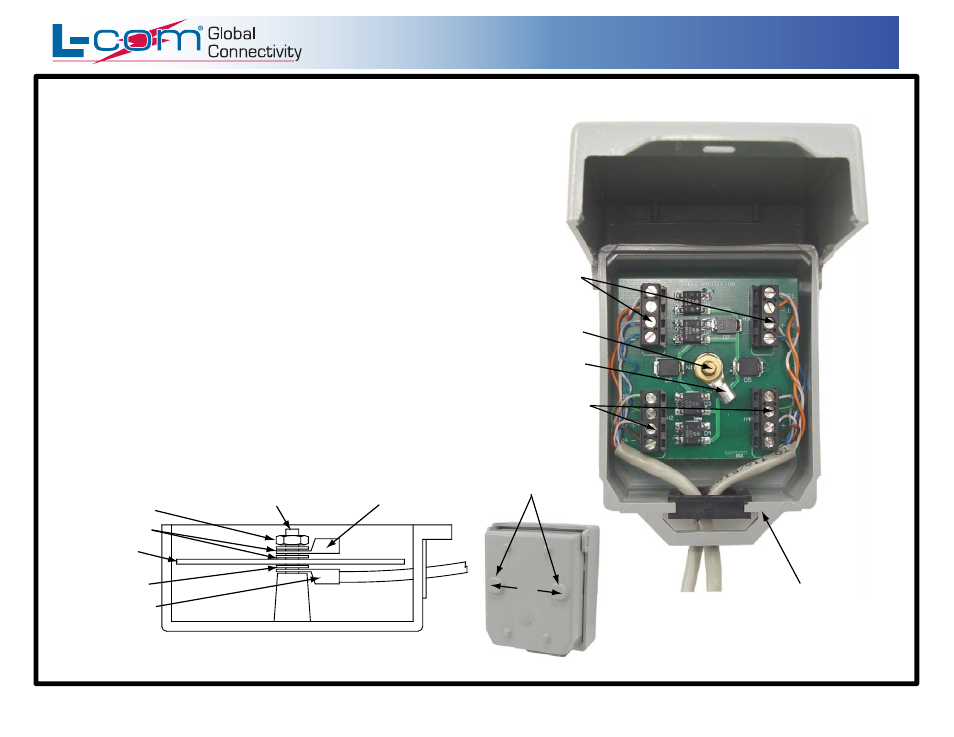

Break-Away Holes
2" Cable Grommet
Ground Lug
Screw
Terminals
Screw
Terminals
Ground
Terminal
Protector Cross Section
Note: This unit provides Bi-Directional
Protection, input and output cables may
be interchanged.
Ground Terminal
Nut
Washers
Optional Lug for
Shielded CAT5
PCB
Washer
Ground Lug
