System Devices and Functions
Transmitter VTS-C5-S

Built-in one set of VGA (DB15) and Data (DB9) inputs

Built-in one set of VGA (DB15) output for monitor

Built-in one RJ45 port for system output which can be connected by Cat5/5e/6 cable
and send signal to System Receiver
Receiver VTS-C5-R

Built-in one set of VGA (DB15) and Data (DB9) output for Touch Screen

Maximum VGA resolution of up to 2048x1536 @ 300m (1000ft)

Built-in Video and Focus control to adjust video quality

A PS/2 connector to provide power for Touch Screen’s RS-232 control

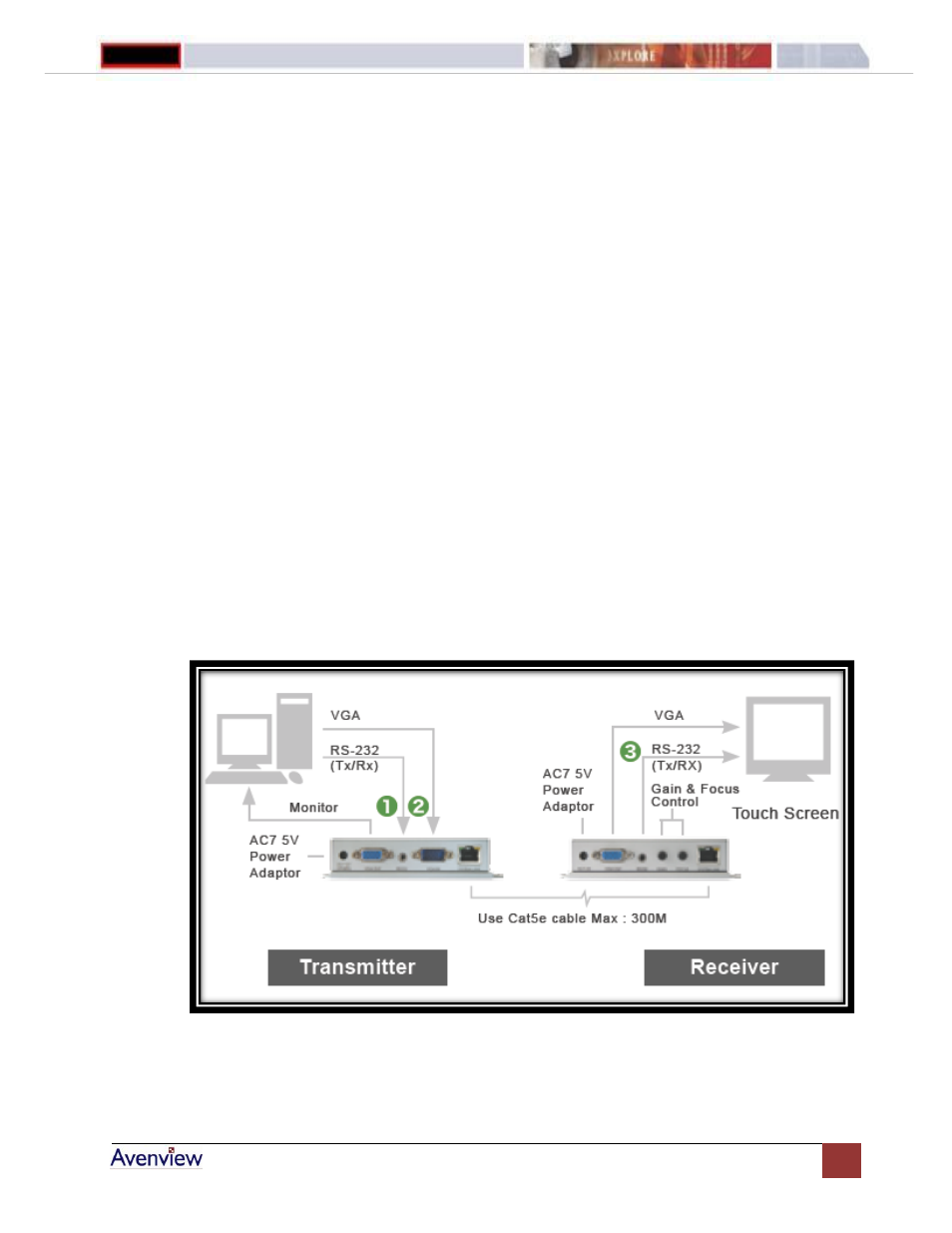

Connection Diagram of VTS-C5 Series
