7
REF. PART QTY. DESCRIPTION REF. PART QTY. DESCRIPTION
NO. NO.
1 65063 1 Hitch Assembly 1 65063 1 Hitch Assembly
2 64780 1 Rake Pivot Assembly 2 64780 1 Rake Pivot Assembly 2 64780 1 Rake Pivot Assembly
3 25165 24 Rake Tine 3 25165 24 Rake Tine 3 25165 24 Rake Tine
4 48978 1 Pivot Pin 4 48978 1 Pivot Pin 4 48978 1 Pivot Pin
5 HA21362 24 Hex Nut, 3/8-16 (Nylock) 5 HA21362 24 Hex Nut, 3/8-16 (Nylock) 5 HA21362 24 Hex Nut, 3/8-16 (Nylock)
REF. PART QTY. DESCRIPTION
NO. NO.
1 65063 1 Hitch Assembly
2 64780 1 Rake Pivot Assembly
3 25165 24 Rake Tine
4 48978 1 Pivot Pin
5 HA21362 24 Hex Nut, 3/8-16 (Nylock)
PARTS

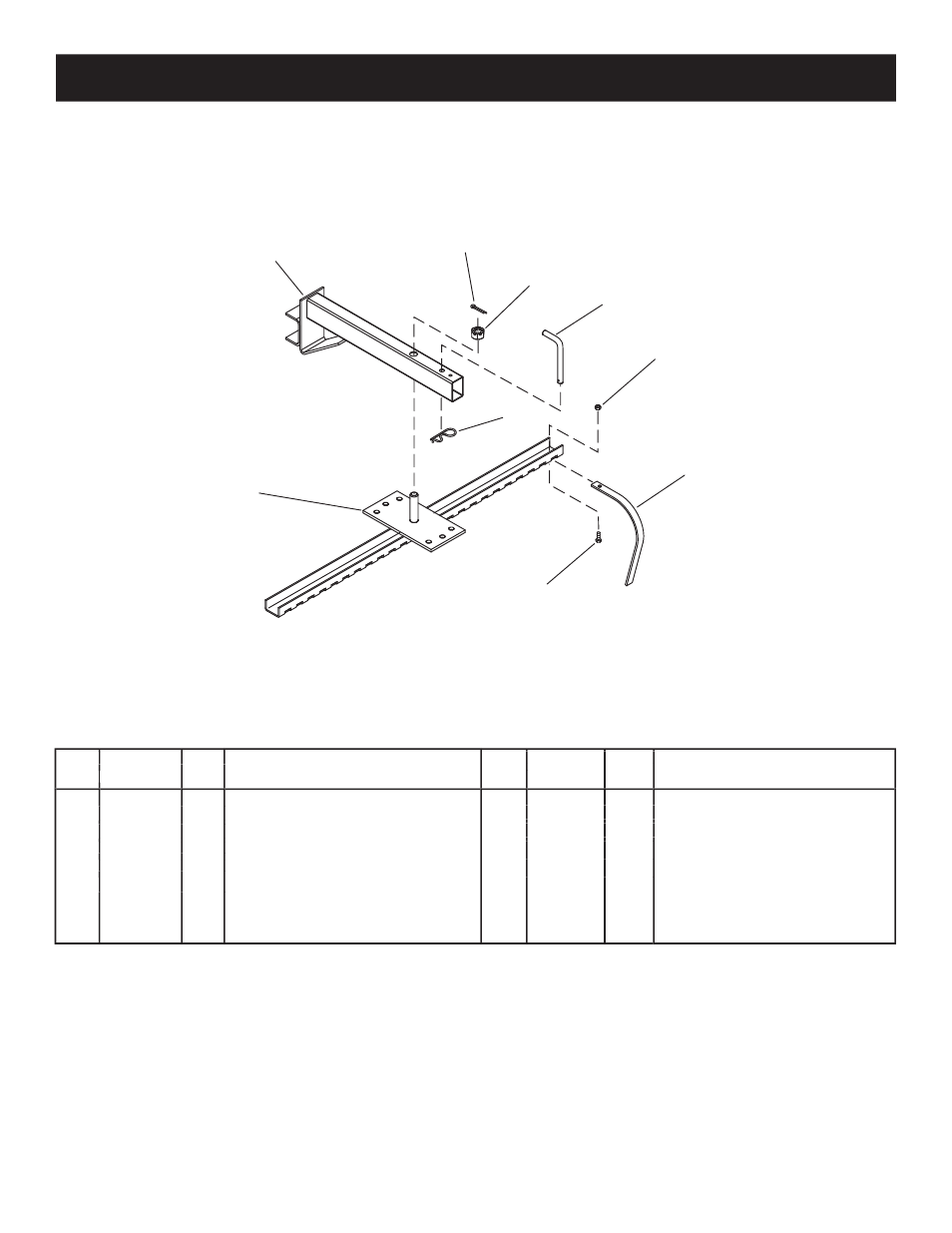

REPAIR PARTS FOR MODEL 486.24537 SLEEVE HITCH ROCK RAKE
1
2
3
4
5
6
7
8
9
REF. PART QTY. DESCRIPTION REF. PART QTY. DESCRIPTION REF. PART QTY. DESCRIPTION
NO. NO. NO. NO.
6 43001 24 Hex Bolt, 3/8-16 x 1" 6 43001 24 Hex Bolt, 3/8-16 x 1" 6 43001 24 Hex Bolt, 3/8-16 x 1"
7 43343 1 Hair Cotter Pin, 1/8" 7 43343 1 Hair Cotter Pin, 1/8" 7 43343 1 Hair Cotter Pin, 1/8"
8 48968 1 Slotted Hex Nut, 1"-8 8 48968 1 Slotted Hex Nut, 1"-8 8 48968 1 Slotted Hex Nut, 1"-8
9 46855 1 Cotter Pin, 3/16" x 2" 9 46855 1 Cotter Pin, 3/16" x 2" 9 46855 1 Cotter Pin, 3/16" x 2"
49526 1 Owner's Manual 49526 1 Owner's Manual 49526 1 Owner's Manual
