Custom Electronics AOV Single Zone - Manual (Page 2)

4. Specification
Input Voltage 240v AC 50Hz (+5% / -5%)
Output Voltage 24v DC (+20% / -10%)
Output Rating AOV-001 : 1amp AOV-003 : 3amp
AOV-005 : 5amp AOV-007 : 10amp
Battery Charge Current AOV-001 : 0.25amp AOV-003 : 0.50amp
AOV-005 : 0.75amp AOV-007 : 2.0amp
Battery Type Sealed Lead Acid
Enclosure Colour Grey RAL 7035
Enclosure Size 400mmW x 300mmH x 110mmD
Weight 7kgs – 9kgs
Optional
items
Break Glass Call Point
Smoke Detectors
Temperature sensors
Chain and Linear Actuators.
5. Preparation
After unpacking, the unit should be prepared for installation.
The lid is fixed to the body with 4 bolts and after removing these bolts the lid can
be lifted from the unit. There are no interconnecting cables between the lid and
the back-box, however, when the lid is finally refitted the earth cable between the
body and lid should be fitted.
The lid and screws should be carefully stored for refitting on completion of the
installation.

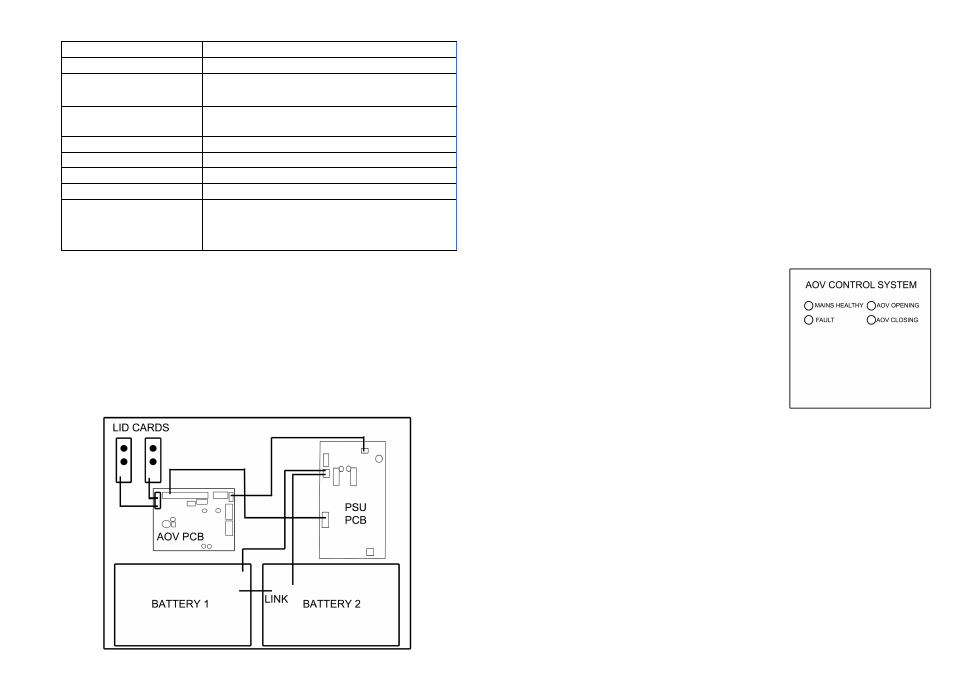

6. Internal layout
7. Installing
The unit should be fitted in an upright position on a solid surface using the
fixing holes provided
. The unit mounting location should be selected to allow
space around the unit to aid heat dissipation. It should not be mounted adjacent to
any other source of excessive heat. There are 5 mounting points available in the
enclosure with a top central keyhole to allow the unit to hang whilst marking the
other mounting points as required.
The back-box also has rear “dimples” to allow for imperfect wall levels as well
as to create space for air circulation.
Screws and anchor fixings should be sufficient to support the unit according to
the structure to which it is affixed.
Cabling of suitable rating should be used along with the appropriate termination
glands and securely fixed via the knockouts provided.
8. Indicators – Lid facia
Green = Mains Healthy Green = AOV opening
Amber = Fault
Amber = AOV closing
When the Green light only is illuminated, the unit is
operating normally with supply to the load and the
batteries (when fitted) are receiving charge current.
When the Amber light is illuminated at the same time
as the Green light there is a fault on either or both of
the output supply and the charge supply. If the Green
light is NOT illuminated, the mains supply is not
present
.
