• Place freezer door on center hinge and door
closure. Install top hinge and shims on opposite
side of cabinet using hex nut driver. Snap hinge
cover in place on hinge.
• Use a penny at top to space door 3 /
4
" (19 mm) from
cabinet. Make sure handle side of door is
1 /
8
" (3 mm) higher than hinge side of door before
tightening top hinge screws.
1 /
8
" (3 mm)
3 /
4
" (19 mm)

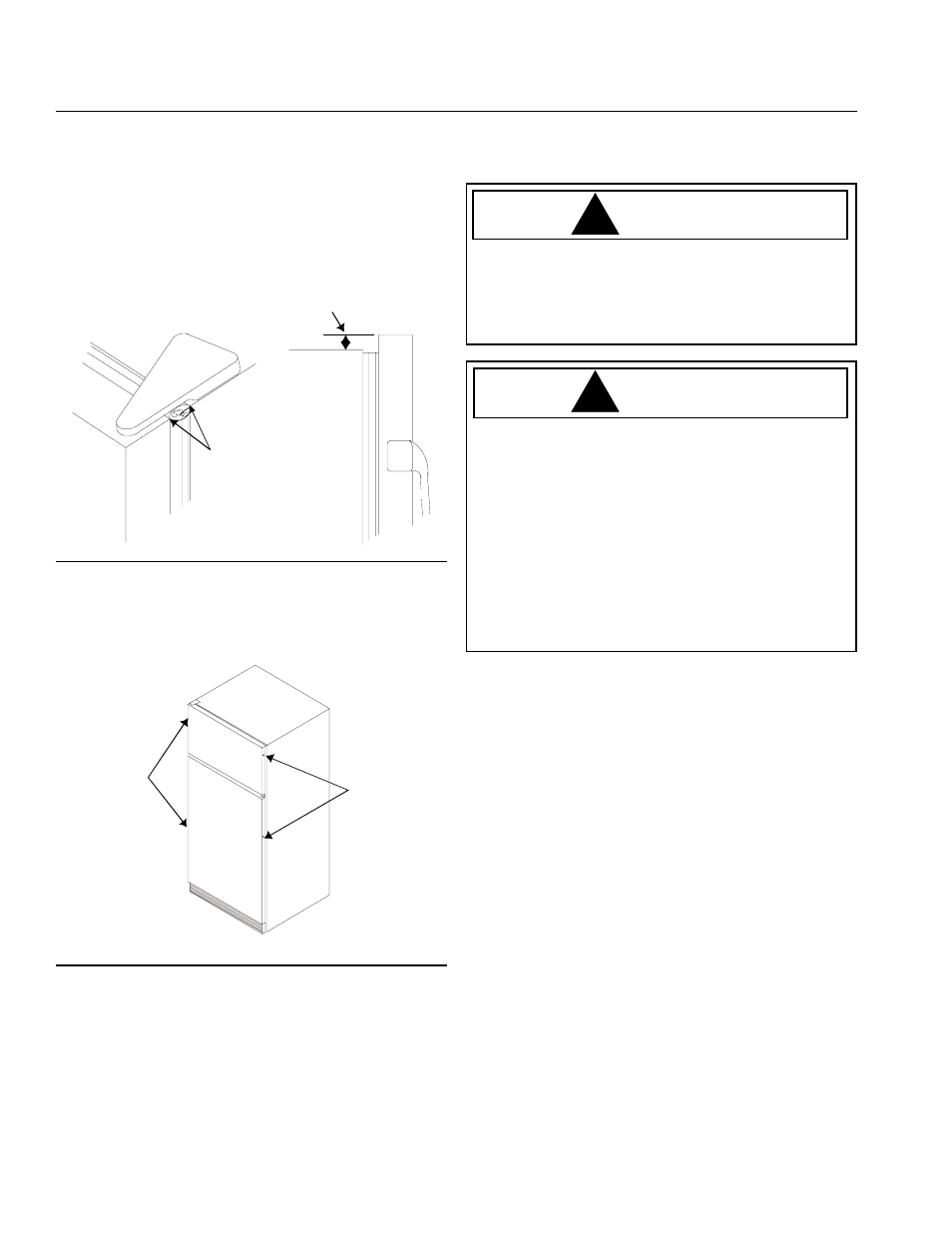

Door spacing
10. Remove button plugs from side of refrigerator and
freezer doors using a putty knife with the blade
covered in masking tape.
A
B
A. Remove button plugs B. Install button plugs here
Button Plugs
11. Mount freezer handle on opposite side of refrigerator
door using mounting screws previously removed.
Snap end cap(s) into place.
12. Mount refrigerator handle on opposite side of freezer
door using mounting screws previously removed.
Snap end cap(s) into place.
13. Replace button plugs in empty side mounting holes
on refrigerator doors.
14. Proceed to Leveling Refrigerator procedures for final
placement of refrigerator.
Connect Ice Maker Water Supply Line
(Some models)
!
CAUTION
To avoid property damage, protect soft vinyl or other
flooring with cardboard, rugs, or other protective
materials when moving refrigerator. Make sure
stabilizing leg is raised before moving refrigerator.
Raise stabilizing leg by turning counterclockwise.
!
CAUTION
Observe the following to avoid property damage:
• Confirm water pressure to water valve is between 20
and 100 pounds per square inch.
• Copper supply tubing must be routed where the
temperature is 55°F (13°C) or higher to prevent
freeze-ups.
• Start adaptor fitting and nuts by hand to avoid cross
threading. Tighten adaptor fitting and nuts with
pliers and wrenches. Do not overtighten.
• Check for water leaks and correct if necessary
before returning refrigerator to normal location, and
24 hours after connecting.
Important
• Before connecting water supply, contact a plumber to
connect copper tubing to household plumbing in
compliance with local codes and ordinances.
• DO NOT use self-piercing type or 3 /
16
" saddle valves!
Both reduce water flow, develop sediment build-up more
rapidly, and may cause leaks if repair is attempted.
The correct type of shut-off valve requires a
1 /
4
" hole to
be drilled on top or side (not bottom of horizantal pipe)
of water supply pipe prior to valve attachment.
Materials Required
1 /
4
" O.D. (6 mm) flexible copper tubing. Length of copper
tubing must reach from water supply connection to water
valve inlet port on back of refrigerator plus an additional
8 ft. (2 m) of tubing for a service loop. A service loop will
allow refrigerator to be pulled away from the wall without
disconnecting tubing.
