2. CONNECTIONS AND OPERATION
continued …
VA
M C A 5 0
WARNING
RISK OF HAZARDOUS ENERGY! MAKE PROPER SPEAKER CONNECTIONS. SEE OPERATING MANUAL BEFORE USING.
WARNING
RISK OF HAZARDOUS ENERGY! MAKE PROPER SPEAKER CONNECTIONS. SEE OPERATING MANUAL BEFORE USING. VA
M C A 2 0
WARNING
RISK OF HAZARDOUS ENERGY! MAKE PROPER SPEAKER CONNECTIONS. SEE OPERATING MANUAL BEFORE USING. VA
M C A 3 0

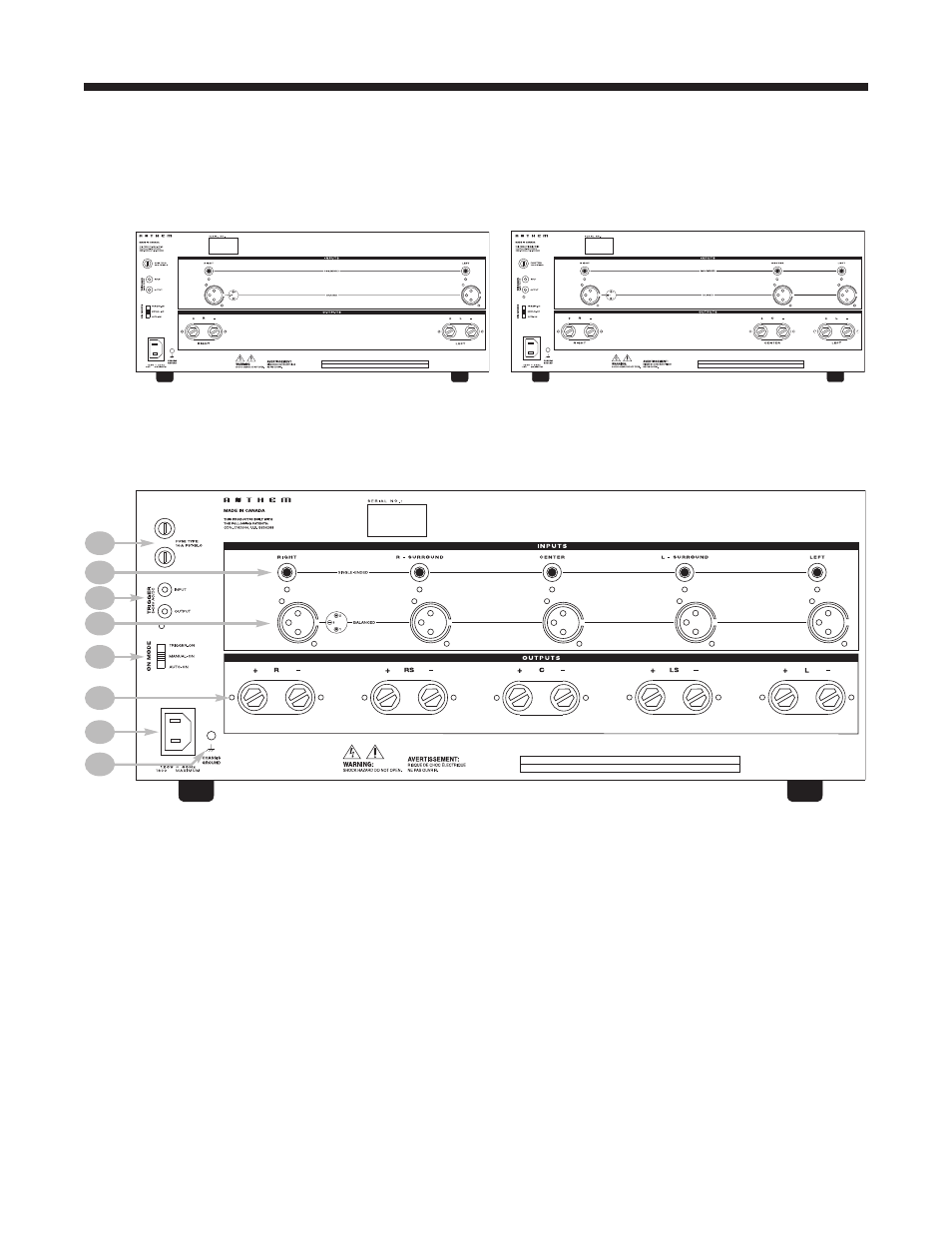

2.4 REAR PANEL LAYOUT
1 – Fuses (one in MCA 20/30, two in MCA 50)
2 – Single-Ended RCA Inputs
3 – Trigger Input and Output
4 – Balanced XLR Inputs
5 – On-Mode (Trigger / Manual / Auto)
6 – Speaker Binding Posts
7 – Power Cord Socket
8 – Chassis Ground
MCA 20 MCA 30
MCA 50
1
2
3
4
5
7
8
6
