5 Using the FireWire Switcher
This section describes how to connect and how to operate your CVG-FW81.
You can connect the CVG-FW81 8 Port FireWire Switcher to up to 8
devices 1 , using 1394 cables with 6 pin connectors. However, only 2 devices
can be selected (one per line) at the same time, as the example in Figure 2
illustrates.
To connect the
CVG-FW81 to 2 devices, do the following:
1. Connect one device (for example, a digital VCR) to PORT 8 and another
device (for example, also a digital VCR) to PORT 4.
2. Push in the IN / OUT button 8.
The IN / OUT button 8 changes color, and the other buttons on that line
pop out.
3. Push in the OUT / IN button 4.
The OUT / IN button 4 changes color, and the other buttons on that line
pop out.
4. Set the digital VCR that is connected to PORT 8 to record, and the digital
VCR that is connected to PORT 4 to play back.

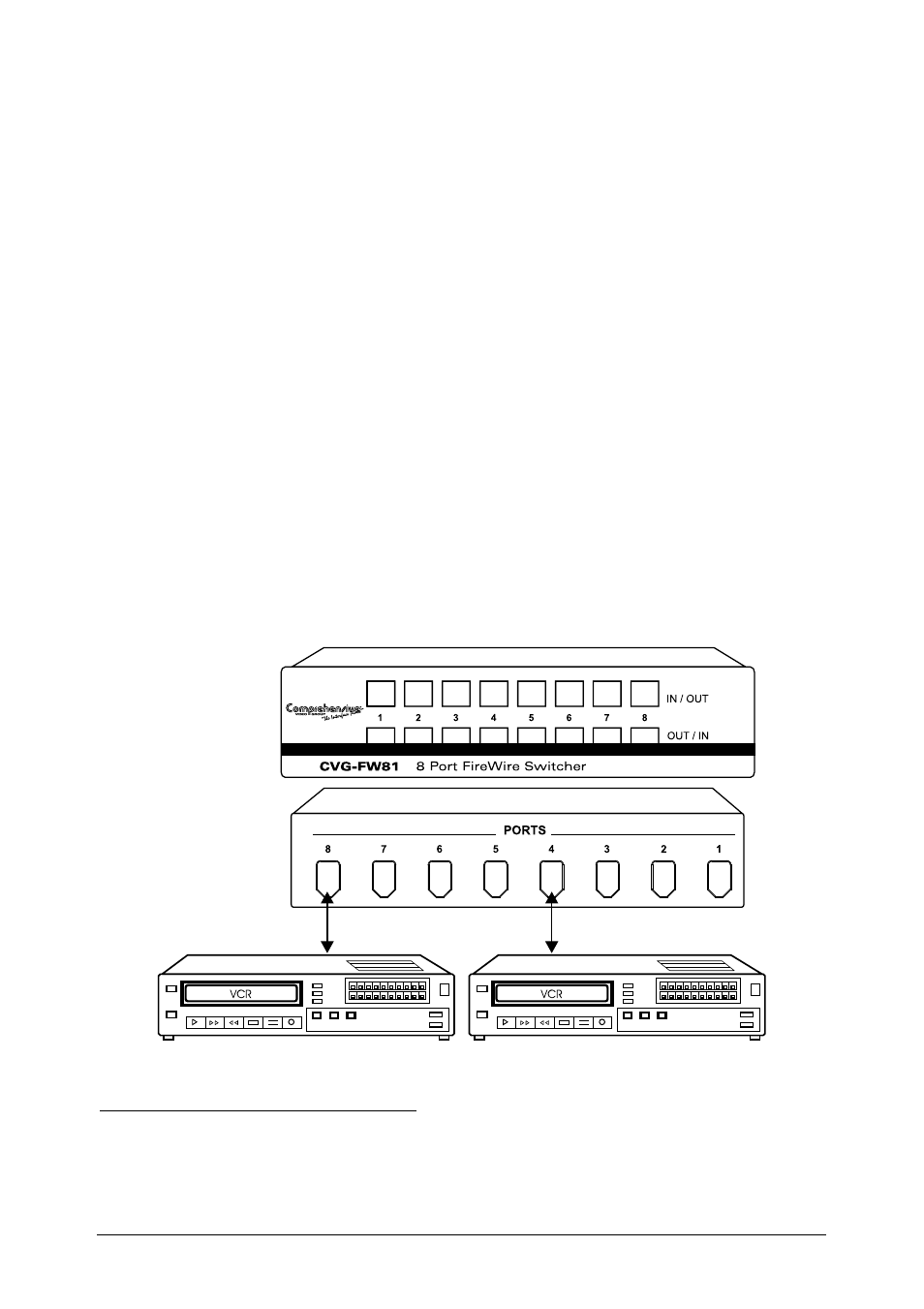

Figure 2: Connecting the FireWire Switcher
1 Each device that is connected to a port can simultaneously constitute a transmitter or receiver (source or acceptor). If the
digital FireWire data stream for video and audio is embedded, it identifies if a connected device is a transmitter or receiver
communicating with each other in 2 directions, on one line
