Comprehensive CVG-41VGA User Manual
Page 5
3
Achieving the best performance means:
• Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
• Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your CVG-41VGA in a
location free from moisture and away from excessive sunlight and dust
4 Your CVG-41VGA 4x1 VGA / XGA Switcher
Figure 1 and Tables 1 and 2 define the CVG-41VGA 4x1 VGA / XGA Switcher:

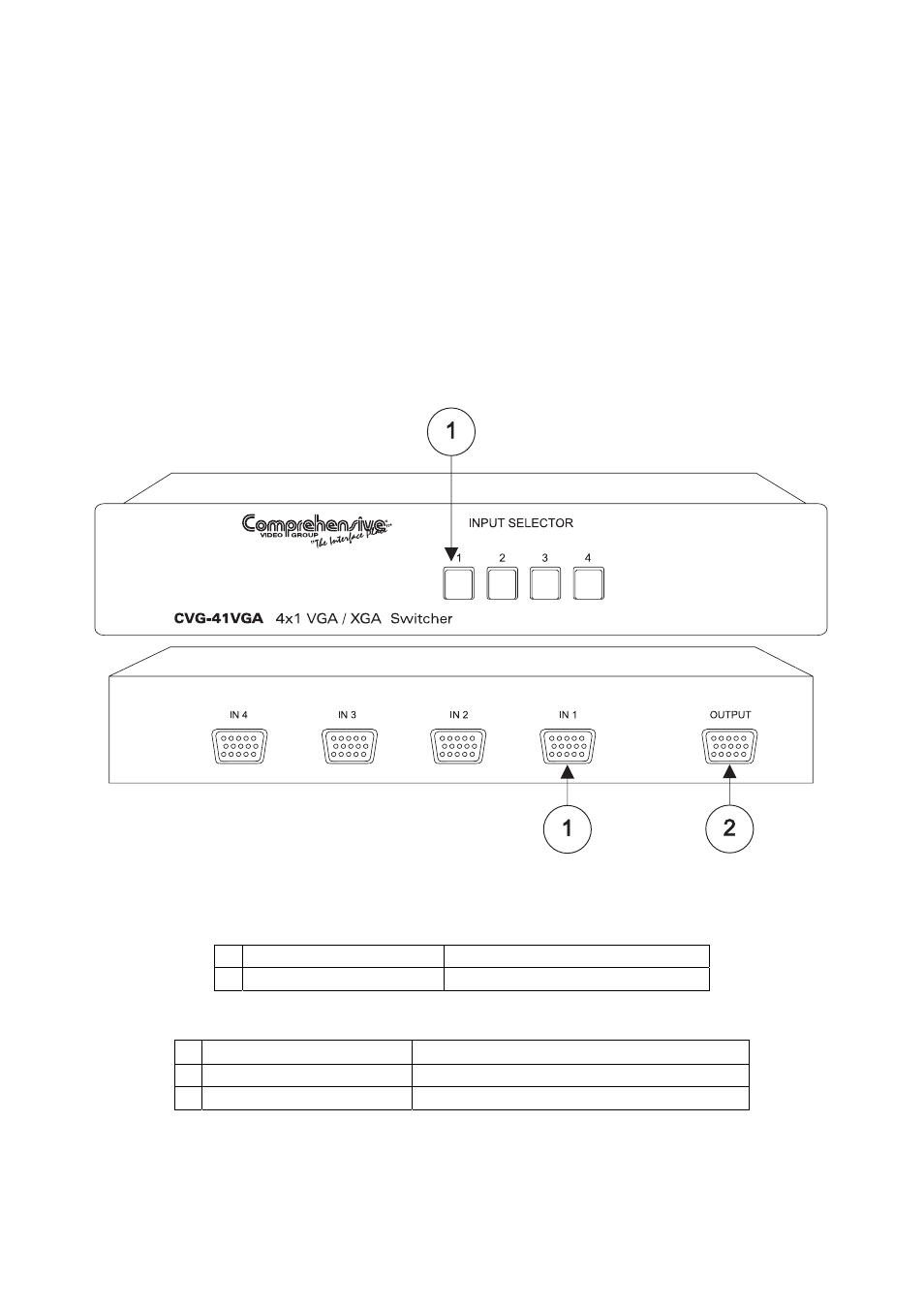

Figure 1: CVG-41VGA 4x1 VGA / XGA Switcher
Table 1: Front Panel CVG-41VGA 4x1 VGA / XGA Switcher Features
# Feature
Function
1
INPUT SELECTOR Buttons Select the video source (from 1 to 4)
Table 2: Rear Panel CVG-41VGA 4x1 VGA / XGA Switcher Features
# Feature
Function
1
IN HD15 Connectors
Connects to the VGA/XGA source (from 1 to 4)
2
OUTPUT HD15 Connector
Connects to a VGA/XGA acceptor
