4 Your CSW-VGA212 VGA Switcher / Distributor

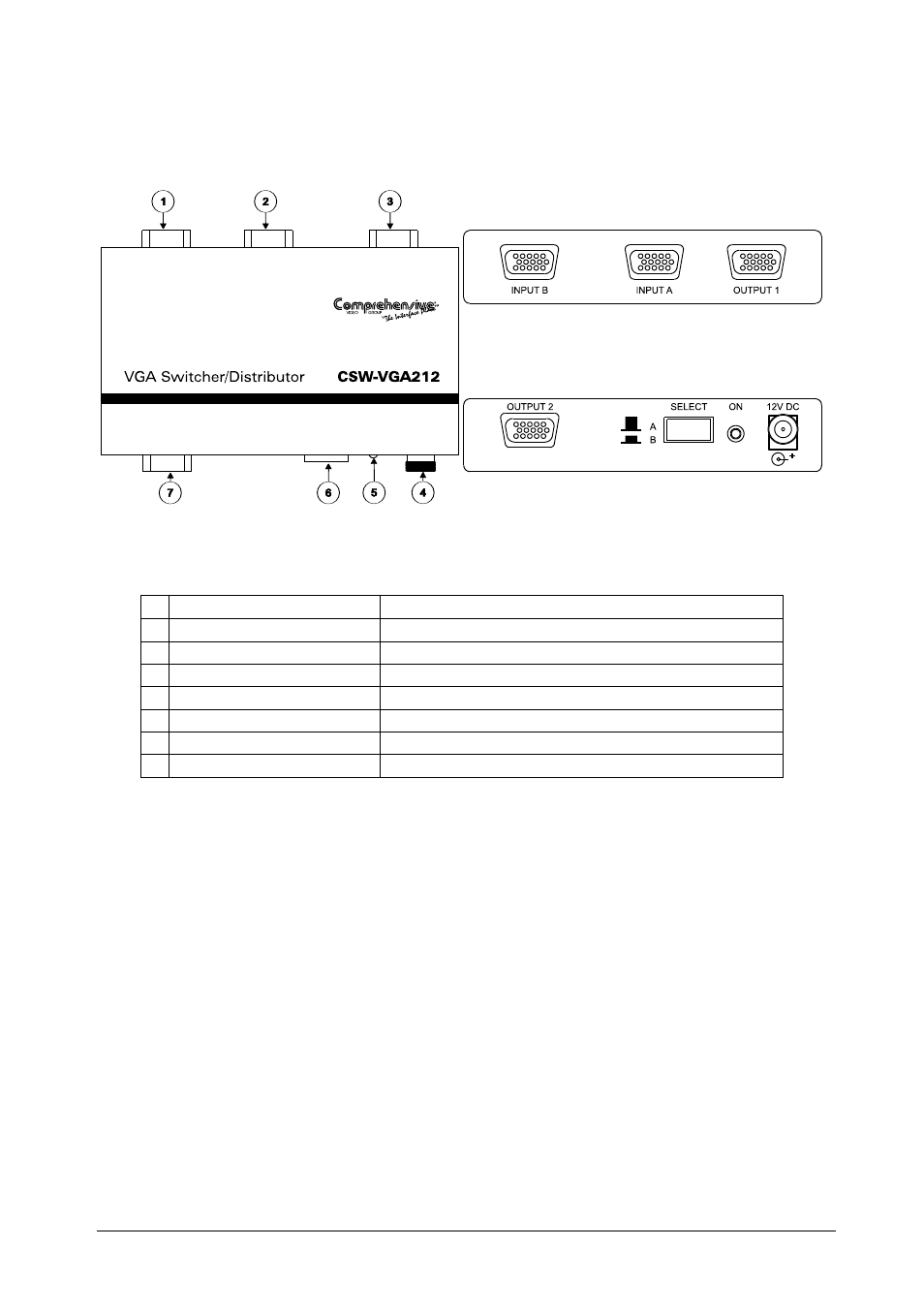

Figure 1 and Table 1 define the CSW-VGA212 VGA Switcher / Distributor:
Figure 1: CSW-VGA212 VGA Switcher / Distributor
Table 1: CSW-VGA212 VGA Switcher / Distributor Features
# Feature Function
1 OUTPUT 1 HD15F connector Connects to the VGA acceptor 1
2 INPUT A HD15F connector
Connects to the VGA source A
3 INPUT B HD15F connector Connects to the VGA source B
4 12V DC +12V DC connector for powering the unit
5 ON LED Illuminates when receiving power
6 A/B Button Releasing selects INPUT A; pushing in selects INPUT B
7 OUTPUT 2 HD15F connector Connects to the VGA acceptor 2
