DVI Matrix Switcher
3
1
N/u
Unused
2
Tx
Transmit
3
Rx
Receive
4
N/u
Unused
5
Gnd Ground
6
N/u
Unused
7
N/u
Unused
8
N/u
Unused
9
N/u
Unused
F 5-1 9HDF
5.2.2 Connection with Computer
When the switcher connects to the COM1 or COM2 of the computer with control software, users
can control it by that computer.
To control the switcher, users may use the public COM software. Please refer the details in
Communication Protocol and Command Codes

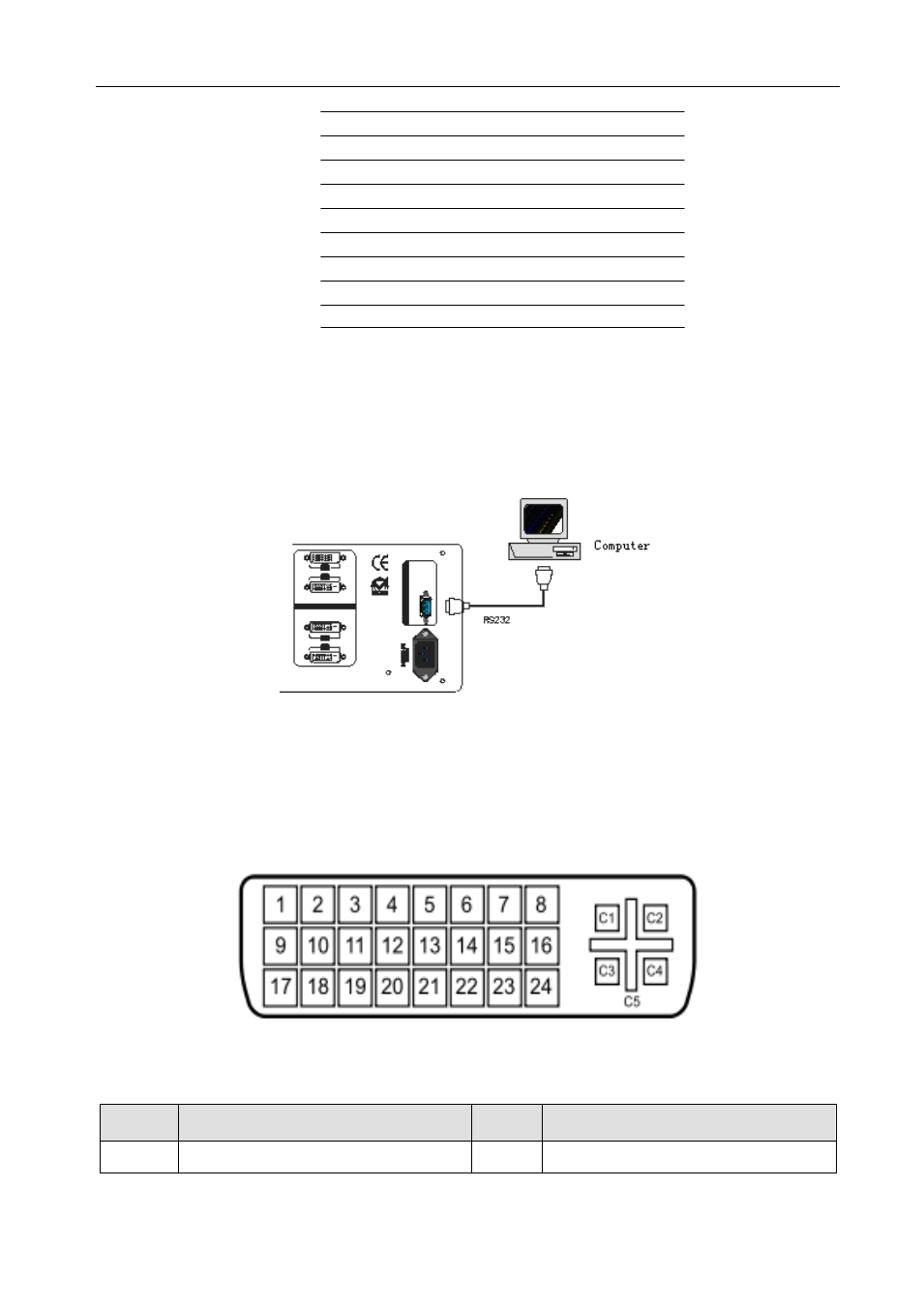

F 5-2 MHD connecting to computer
5.3 How to Connect with the Input and Output Terminals
The DVI matrix switchers may take DVD players, computers, graphic workstations and digital
showing platform as their input signal source, and projectors, video recorders, displayers and
amplifiers as their output signal destinations according to different situation.
DVI-I Dual Link:
F5—3 DVI-I Dual Link port
DVI pin function
PIN
FUNCTION
PIN
FUNCTION
1
T.M.D.S.Data2-
13
T.M.D.S.Data3+
