XPEED Outdoor Series WWW.CNBTEC.COM
8
2. Installation
~

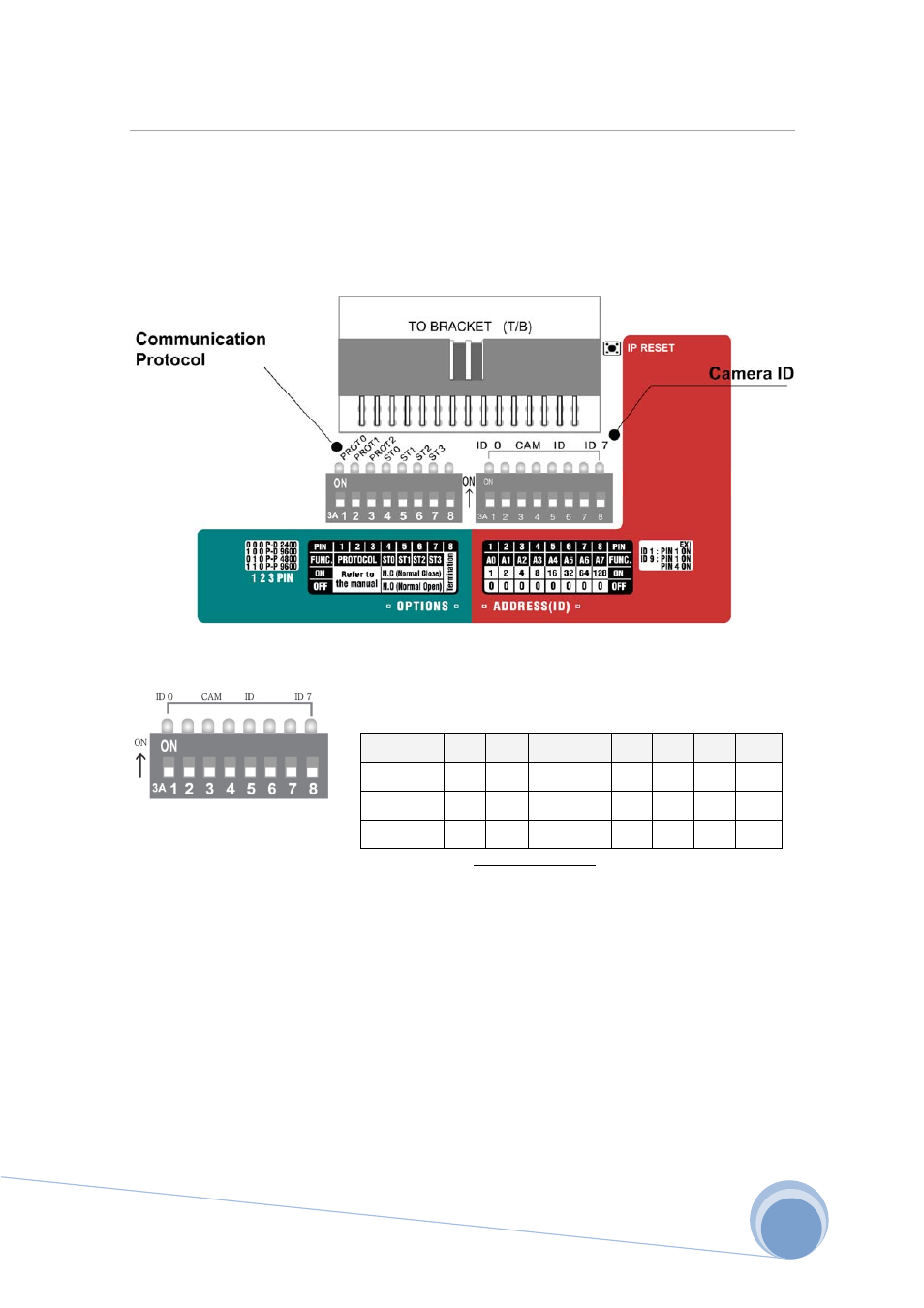

DIP Switch Setup
■ Camera ID Setup
• ID number of camera is set using binary number.
The example is shown below.
Pin
1
2
3
4
5
6
7
8
ID Value
1
2
4
8
16
32
64
128
ex) ID=5
ON
OFF
ON
OFF
OFF
OFF
OFF
OFF
Ex) ID=10
OFF
ON
OFF
ON
OFF
OFF
OFF
OFF
• The range of ID 1~255. Do not use 0 as camera ID.
• Factory default of Camera ID is 1.
• If you want to control a certain camera, you must match the camera ID with Cam ID setting of
DVR or Controller.
9
Before installing the camera, you should set the DIP switches to configure the camera ID, communication protocol. Do not use the
system upgrade terminal.
