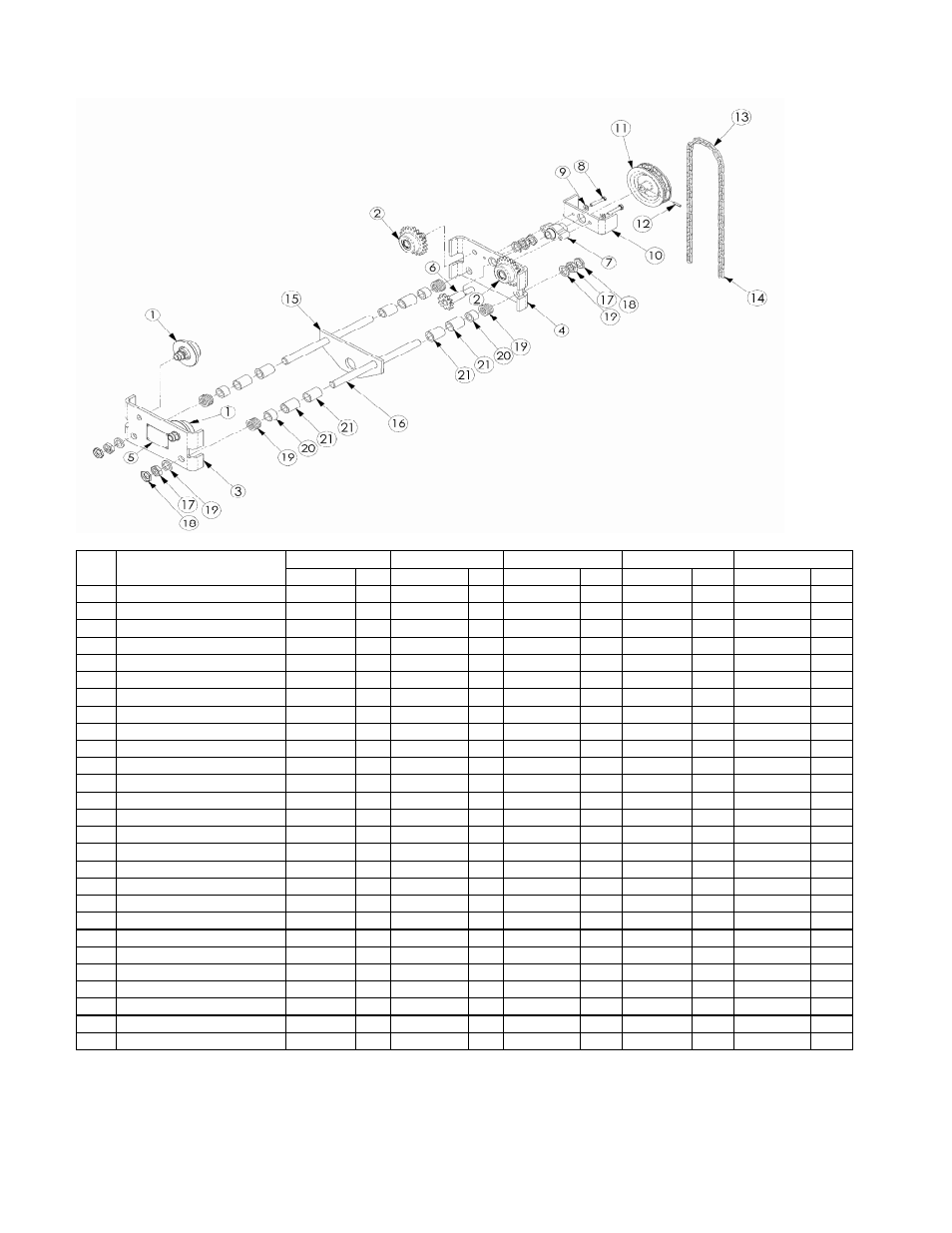

1/4 THRU 5 TON CAPACITY TROLLEY PARTS LIST
ITEM
ITEM
1/4 AND 1/2 TON
1 TON
1-1/2 AND 2 TON
3 TON
5 TON
NO
DESCRIPTION
PART NO QTY
PART NO
QTY
PART NO
QTY
PART NO
QTY
PART NO
QTY
1
Plain Wheel Assembly
00508207
4
00508207
4(2)
00508208
4(2)
00508209
4(2)
00508210
4(2)
2
Geared Wheel Assembly
n/a
0
00508211
0(2)
00508212
0(2)
00508213
0(2)
00508214
0(2)
3
Plain Side Plate
00550115
2
00550117
2(1)
00550118
2(1)
00550237
2(1)
00550239
2(1)
4
Geared Side Plate
n/a
0
00550047
0(1)
00550242
0(1)
00550243
0(1)
00550244
0(1)
5
1/4 Ton Nameplate
00550245A
1
n/a
0
n/a
0
n/a
0
n/a
0
5
1/2 Ton Nameplate
00550245B
1
n/a
0
n/a
0
n/a
0
n/a
0
5
1 Ton Nameplate
n/a
0
00550245C
1
n/a
0
n/a
0
n/a
0
5
1-1/2 Ton Nameplate
n/a
0
n/a
0
00550245D
1
n/a
0
n/a
0
5
2 Ton Nameplate
n/a
0
n/a
0
00550245E
1
n/a
0
n/a
0
5
3 Ton Nameplate
n/a
0
n/a
0
n/a
0
00550245F
1
n/a
0
5
5 Ton Nameplate
n/a
0
n/a
0
n/a
0
n/a
0
00550245G
1
6
Drive Pinion and Shaft
n/a
0
00557206
0(1)
00557206
0(1)
00557206
0(1)
00557206
0(1)
7
Drive Shaft Bearing Block
n/a
0
00557204
0(1)
00557200
0(1)
00557313
0(1)
00508229
0(1)
8
Bearing Block Bolt
n/a
0
09101052
0(2)
09101050
0(2)
09101050
0(2)
09101050
0(2)
9
Bearing Block Bolt Washer
n/a
0
09122016
0(2)
09122016
0(2)
09122016
0(2)
09122016
0(2)
10
Hand Chain Guard
n/a
0
00557314
0(1)
00557314
0(1)
00508231
0(1)
00558062
0(1)
11
Hand Chain Wheel
n/a
0
00557304
0(1)
00557304
0(1)
00508230
0(1)
00558061
0(1)
12
Handwheel Retaining Pin
n/a
0
09134052
0(1)
09134052
0(1)
09134052
0(1)
09134052
0(1)
13
Hand Chain(specify length)
n/a
0
04307654
0(1)
04307654
0(1)
04307654
0(1)
04307654
0(1)
14
Hand Chain Connecting Link
n/a
0
00404733
0(1)
00404733
0(1)
00404733
0(1)
00404733
0(1)
15
Clevis
00550053
1
00550051
1
00550059
1
00550073
1
00550079
1
16
Trolley Pin
00550071
2
00550048
2
00550056
2
00550077
2
00550082
2
17
Trolley Pin Nut
09115070
4
09115001
4
09115101
4
09115159
4
09115161
4
18
Trolley Pin Lock Nut
09115030
4
09115536
4
09115157
4
09115154
4
09115162
4
19
Trolley Pin Washer
09121227
28
09121225
28
09121226
28
00550085
24
00550084
24
20
Short Spacer
00550069
4
00550050
4
00550058
4
00550076
4
00550081
4
21
Long Spacer
00550070
8
00550049
8
00550057
8
00550075
8
00550080
8
NOTE: QUANTITIES SHOWN FOR PLAIN UNITS. GEARED QUANTITIES ARE SHOWN IN BRACKETS ( ).
¼ TON AND ½ TON TROLLEY AVAILABLE IN PLAIN STYLE ONLY.
