7100 Series
Installation Instructions
7100 SERIES INDUCTIVE SLOT SENSOR
All 7100 Series flowmeters may be fitted with one inductive slot
sensor. Inductive slot sensors are 2-wire, DC, low current devices
and are designed to be used with a remote barrier / switch isolator
capable of powering the sensor and providing the desired switch-
ing option(s). Barrier / switch isolators are available with 220 VAC,
110 VAC or 24 VDC supply voltage requirements, contain single
pole double throw (SPDT) relays, and are DIN rail mountable. (Only
24 VDC units are actually powered by the rail.) See barrier / switch
isolator specifications for electrical connections and further details.
INDUCTIVE SLOT SENSOR-ELECTRICAL
SPECIFICATIONS
TYPE: Inductive
SUPPLY VOLTAGE:
5-25V DC (Switch Isolator)
OUTPUT: NAMUR
OUTPUT LOAD CURRENT:
<= 1mA-Float Present
>= 3mA (15mA Max.)-Float Absent
SWITCHING FREQUENCY: 5kHZ
HOUSING RATING: IP67
WIRING: 2 Conductor, NAMUR
POS=BROWN / NEG=BLUE
TERMINALS: #1=POS / #2=NEG
PEPPERL+FUCHS: UL: General Purpose
SENSOR APPROVALS: CSA: General Purpose
SETTING ALARM TRIGGER POINTS
1) Remove the two screws securing the ALARM ADJUST-SLOT
COVER & GASKET.
2) Remove the ALARM ADJUSTING-SLOT PLUG & GASKET.
3) Use a small screwdriver to adjust the ALARM SET POINTER to the
desired flow / alarm trigger point. MOVE UP AND DOWN ONLY.
CAUTION: DO NOT push in or pull on the ALARM SET POINTER.
4) Once you have the ALARM SET POINTER set to the desired trigger
point you may replace the ALARM ADJUST SLOT COVER & GASKET.
5) Replace the screws to secure the ALARM ADJUST-SLOT COVER &
GASKET.
Installation Instructions

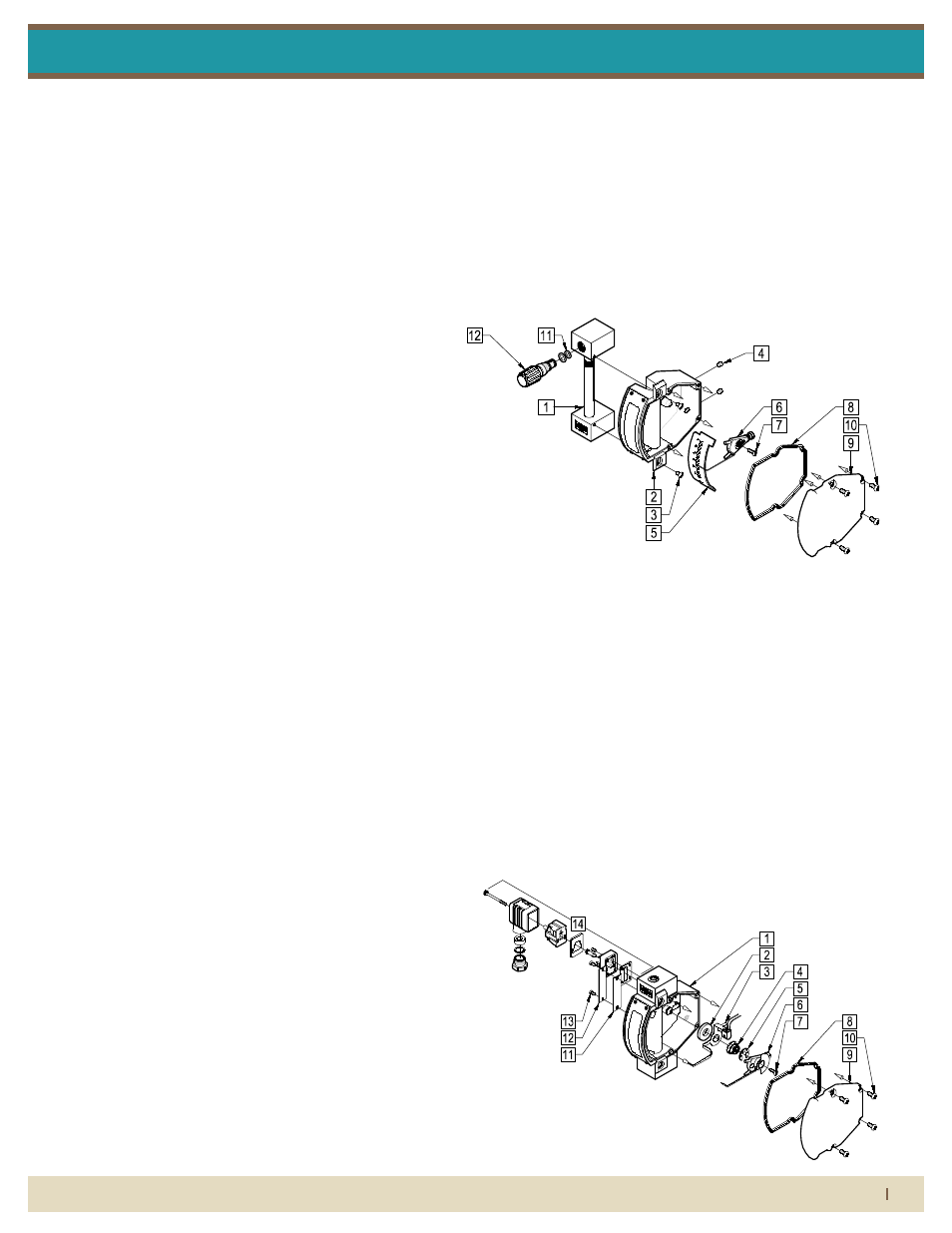

7100 SERIES ASSEMBLY WITH OUTLET VALVE
PARTS LIST:
1. Meter Tube Assembly
2. Case Assembly
3. Meter Tube
Assembly Screw
4. Rear Case Screw Plug
5. Scale Plate
6. Follower Disc/
Pointer Assembly
7. Pointer Assembly
Screw
8. Case Cover Gasket
9. Case Cover
10. Case Cover Screw
11. Valve O-Ring
12. Valve Assembly
7100 SERIES ASSEMBLY WITH ALARM
PARTS LIST:
1. Case and Meter
Tube Assembly
2. Alarm Spacer
3. Alarm Set Pointer
and Sensor
4. Alarm Tension Spring
5. Alarm Retainer Clip
6. Follower Disc/
Pointer Assembly
7. Pointer Assembly
Screw
8. Case Cover Gasket
9. Case Cover
10. Case Cover Screw
11. Alarm Adjust Slot Gasket
12. Slot Cover
13. Alarm Adjust Slot
Cover Screw
14. Alarm Connector
12700 Pala Drive, Garden Grove, CA 92841
www.kinginstrumentco.com / (714) 891-0008
Meters are warranted against defects in materials and workmanship
to the original user for a period of thirteen (13) months from the date
of factory shipment, provided the meter is installed, operated and
maintained in accordance with King Instrument Company's
instructions and recommendations.
This warranty does not apply if failure is caused or contributed to by
any of the following: improper handling, improper storage, abuse,
unsuitable application of the product, lack of reasonable and
necessary maintenance, use exceeding suggested pressure and
temperature maximums, improper packaging for return, or repairs
made or attempted to be made by anyone other than King Instrument
Company, Inc.
KING INSTRUMENT COMPANY, INC. MAKES NO
WARRANTY AS TO THE FITNESS OF ITS PRODUCTS
FOR SPECIFIC APPLICATIONS.
This warranty is valid for the original end-user only and does not
apply to products that have been damaged or modified. This
warranty is non-transferrable and is limited to replacement or repair.
The liability of King Instrument Company arising out of its supply of
the products, or their use, shall not in any case exceed the cost of
correcting defects in the products as set forth above.
THIS WARRANTY IS A LIMITED WARRANTY AND
SHALL BE IN LIEU OF ANY OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT
LIMITED TO ANY IMPLIED WARRANTY OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. THERE ARE NO OTHER WARRANTIES
WHICH EXIST BEYOND THE DESCRIPTION OR FACE
HEREOF.
IN NO EVENT SHALL KING INSTRUMENT COMPANY BE
LIABLE FOR LOSS OF PROFITS, INDIRECT,
CONSEQUENTIAL OR INCIDENTAL DAMAGES.
Products should be returned, prepaid, to King Instrument Company,
Inc. with proof of purchase. Call factory for Return Merchandise
Authorization (RMA) number and return instructions.
2013A
