Page 3: 7460 series assembly – pole guided tube parts list
(714) 891-0008 • www.kinginstrumentco.com
When it comes to flow...we’re instrumental.
3
7460 Series
Installation Instructions
Installation Instructions

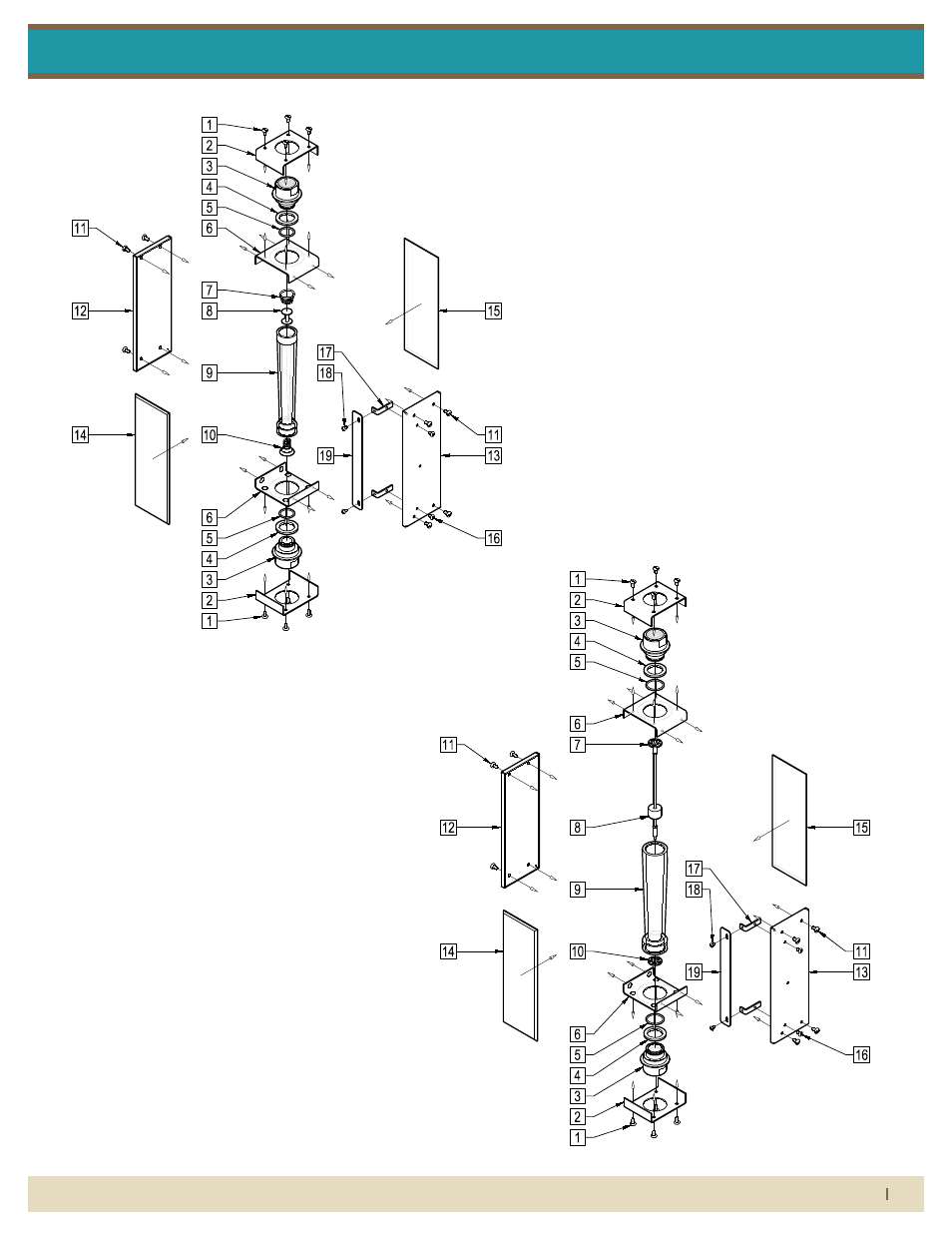

7460 series asseMbly – rib guided tube
parts list:
1. End Fitting
Retainer Screw
2. End Fitting Retainer
3. End Fitting
4. Glass Tube Gasket
5. O-Ring
6. End Plate
7. Float Stop (Outlet)
8. Float
9. Glass Meter Tube
10. Float Stop (Inlet)
11. Side Plate Screw
12. Side Plate
13. Scale Side Plate
14. Shield (Front)
15. Shield (Back)
16. Scale Plate Bracket
Screw
17. Scale Plate Bracket
18. Scale Plate Screw
19. Scale Plate
7460 series asseMbly – pole guided tube
parts list:
1. End Fitting Retainer Screw
2. End Fitting Retainer
3. End Fitting
4. Glass Tube Gasket
5. O-Ring
6. End Plate
7. Float Stop/Guide Rod Assembly
8. Float
9. Glass Meter Tube
10. Float Stop (Inlet)
11. Side Plate Screw
12. Side Plate
13. Scale Side Plate
14. Shield (Front)
15. Shield (Back)
16. Scale Plate Bracket Screw
17. Scale Plate Bracket
18. Scale Plate Screw
19. Scale Plate
4X
4X
2X
2X
FLOAT STOP /
END FITTING RETAINER
END FITTING RETAINER
END FITTING
GLASS TUBE GASKET
FLOAT STOP (INLET)
SIDE PLATE SCREW
SIDE PLATE
SCALE SIDE PLATE
O-RING
END PLATE
FLOAT STOP (OUTLET)
FLOAT
GLASS METER TUBE
SHIELD (FRONT)
SHIELD (BACK)
SCALE PLATE SCREW
SCALE PLATE
SCALE PLATE
SCALE PLATE
END FITTING RETAINER
END FITTING RETAINER
END FITTING
GLASS TUBE GASKET
FLOAT STOP (INLET)
O-RING
END PLATE
FLOAT
GLASS METER TUBE
4X
4X
2X
4X
4X
2X
2X
4X
4X
2X
GUIDE ROD ASSEMBLY
SCREW
SIDE PLATE SCREW
SIDE PLATE
SCALE SIDE PLATE
SHIELD (FRONT)
SHIELD (BACK)
SCALE PLATE SCREW
SCALE PLATE
SCALE PLATE
SCALE PLATE
BRACKET SCREW
SCALE PLATE
SCREW
BRACKET SCREW
BRACKET
4X
4X
2X
2X
FLOAT STOP /
END FITTING RETAINER
END FITTING RETAINER
END FITTING
GLASS TUBE GASKET
FLOAT STOP (INLET)
SIDE PLATE SCREW
SIDE PLATE
SCALE SIDE PLATE
O-RING
END PLATE
FLOAT STOP (OUTLET)
FLOAT
GLASS METER TUBE
SHIELD (FRONT)
SHIELD (BACK)
SCALE PLATE SCREW
SCALE PLATE
SCALE PLATE
SCALE PLATE
END FITTING RETAINER
END FITTING RETAINER
END FITTING
GLASS TUBE GASKET
FLOAT STOP (INLET)
O-RING
END PLATE
FLOAT
GLASS METER TUBE
4X
4X
2X
4X
4X
2X
2X
4X
4X
2X
GUIDE ROD ASSEMBLY
SCREW
SIDE PLATE SCREW
SIDE PLATE
SCALE SIDE PLATE
SHIELD (FRONT)
SHIELD (BACK)
SCALE PLATE SCREW
SCALE PLATE
SCALE PLATE
SCALE PLATE
BRACKET SCREW
SCALE PLATE
SCREW
BRACKET SCREW
BRACKET
