7610 Series
Installation Instructions
8X
4X
4X
END FITTING RETAINER
OUTLET END FITTING
OUTLET FLOAT STOP
INLET FLOAT STOP
INLET END FITTING
CASE COVER SCREW
CASE COVER
POLYCARBONATE SHIELD
POLYCARBONATE SHIELD
O-RING
GLASS METER TUBE
FLOAT
GLASS METER TUBE
CASE
CASE BRACKET
SCALE PLATE BRACKET
SCALE PLATE SCREW
SCALE PLATE
END FITTING RETAINER CASE BRACKET SCREW
END FITTING RETAINER
OUTLET END FITTING INLET FLOAT STOP
INLET END FITTING
CASE COVER SCREW
CASE COVER
POLYCARBONATE SHIELD
POLYCARBONATE SHIELD
FLOAT STOP /
FLOAT
GLASS METER TUBE
CASE
CASE BRACKET
SCALE PLATE BRACKET
SCALE PLATE SCREW
SCALE PLATE
END FITTING RETAINER CASE BRACKET SCREW
O-RING
GLASS METER TUBE
4X
2X
2X
2X
8X 8X
4X
8X
4X
2X
2X
2X
4X
SCREW
ASSEMBLY
ASSEMBLY
(CLEAR)
(WHITE)
GASKET
SCREW
(CLEAR)
(WHITE)
GUIDE ROD ASSEMBLY
GASKET

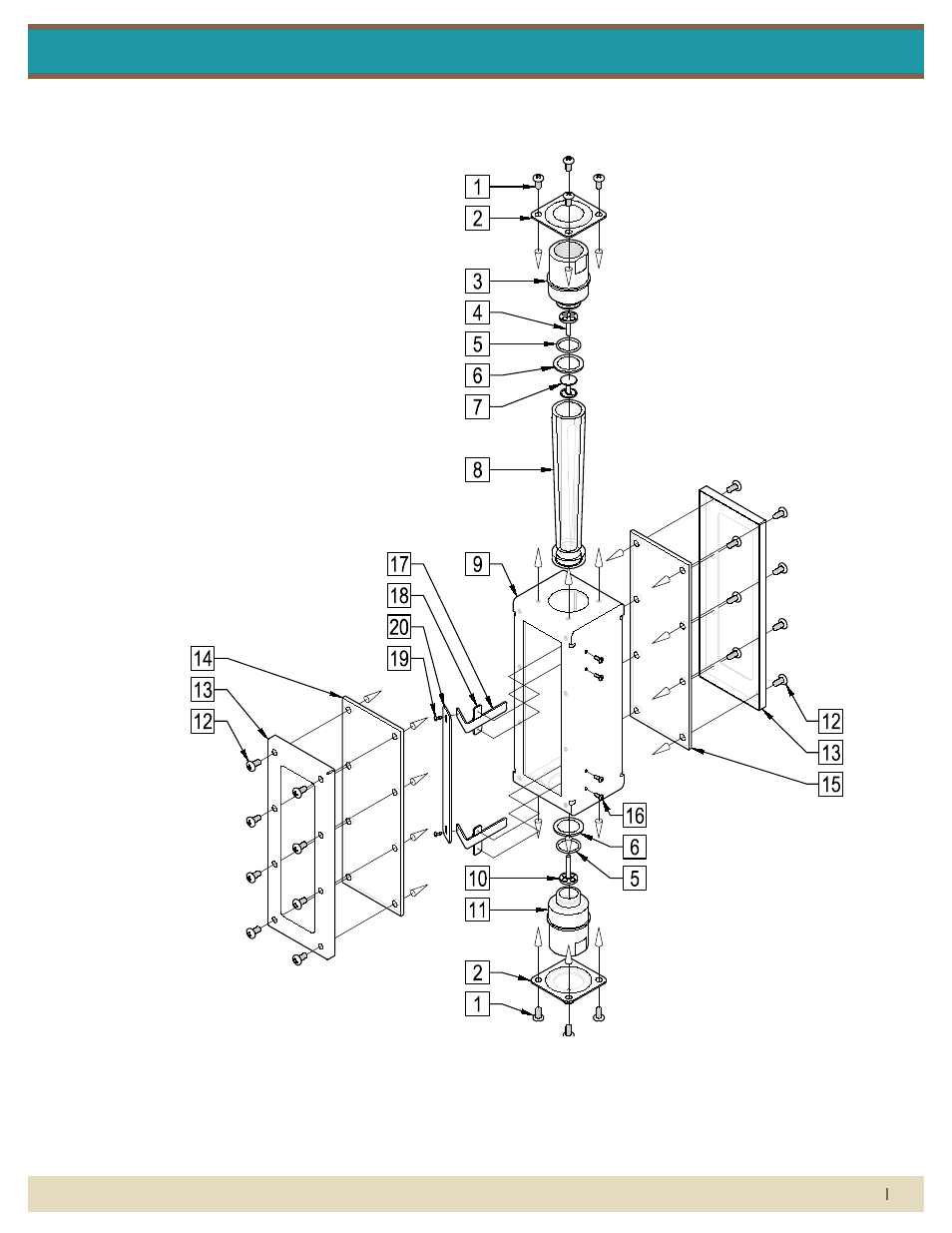

7610 series asseMbly
rib guided tube
parts list:
1. End Fitting Retainer Screw
2. End Fitting Retainer
3. Outlet End Fitting
4. Outlet Float Stop Assembly
5. O-Ring
6. Glass Meter Tube Gasket
7. Float
8. Glass Meter Tube
9. Case
10. Inlet Float Stop Assembly
11. Inlet End Fitting
12. Case Cover Screw
13. Case Cover
14. Polycarbonate Shield (Clear)
15. Polycarbonate Shield (White)
16. Case Bracket Screw
17. Case Bracket
18. Scale Plate Bracket
19. Scale Plate Screw
20. Scale Plate
