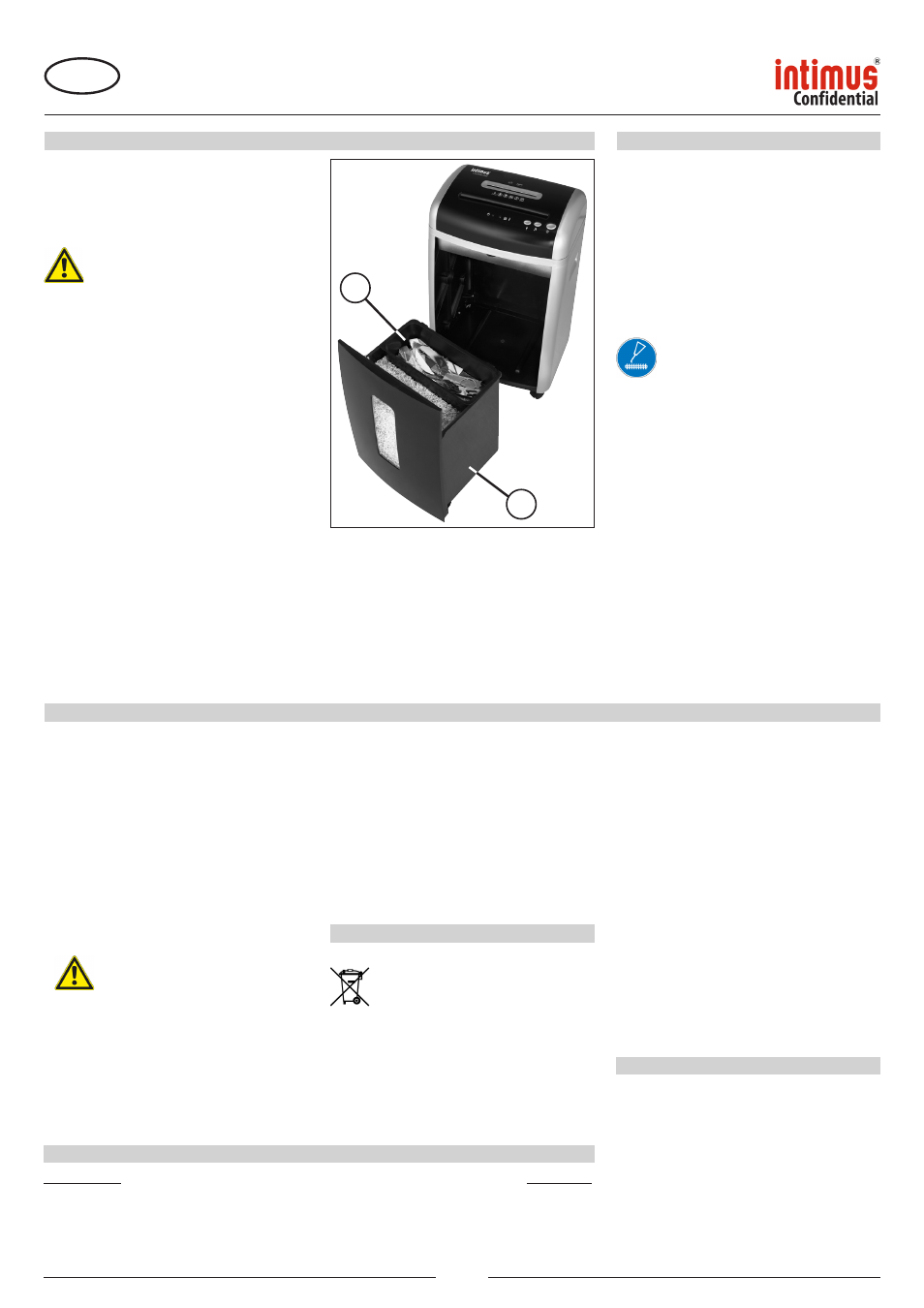

EMPTYING THE RECEPTACLE (fig. 3):
A two compartment receptacle ensures that waste
is separated. It consists of a paper receptacle
(9) and a separate collection tray (10) for the
shredded CDs, DVDs and credit cards.
The fill level of the collection tray
(10) is not displayed by the control
display!
When shredding large quantities of CDs/
DVDs (approx. 25 per load), please
check the fill level of the collection
tray occasionally and empty the tray
separately as required.
If the receptacle for paper is full, the machine
switches off. A horn sounds. The control display
(6) (fig. 1) lights up (red).
Proceed as follows:
- Pull the receptacle (9) with the collection tray
(10) out of the lower housing.
- The horn stops. The control display (6) (fig. 1)
goes out.
- Dispose of the contents of the containers
separately.
- Push the empty receptacle with the collection
tray back into the lower housing.
Note: The machine only runs when the receptacle
is fully pushed in!
MOTOR PROTECTION:
If the motor is overloaded, it switches off. The
control display (6) (fig. 1) lights up (yellow).
Switch the machine off with the pushbutton
switch (1).
After a cooling down period of approx. 15-20
minutes (depending on the model and room
temperature), you can switch the machine on
again.
MATERIAL JAM IN THE MACHINE:
(Auto-reverse function)
If a jam is caused by feeding in too much
material, the machine reacts as follows:
- The cutting mechanism is blocked, then runs
briefly in reverse (material is released) and
stops. The motor is switched off.
Proceed as follows:
Paper jam in paper feed slot (7)
- Remove released paper from the feed slot
(7).
- Continue shredding with lower quantity of
paper.
Material jam in safety feed slot (8)
- Remove released material.
Take care when removing material
as sharp edges may cause injury!
- If necessary, operate the cutting mechanism
manually forwards and backwards alternately
until the material has completely run through
and has been shredded.
CHECKLIST IN THE EVENT OF FAULTS:
If the machine does not work, check the following
points:
- is the mains plug connected to the mains?
- is the pushbutton switch (1) switched on?
- is the receptacle pushed in?
- is the receptacle full?
Follow the instructions in “EMPTYING THE
RECEPTACLE”.
- is there a material jam in the machine?
Follow the instructions in “MATERIAL JAM IN
THE MACHINE”.
- Has the motor been overloaded?
See “MOTOR PROTECTION”.
If none of the above applies, please contact
your dealer.
9
10
93405 1 08/13
MALFUNCTION
MAINTENANCE
CLEANING THE PHOTOCELLS:
If paper particles should come to rest in the inlet
guide (for example after a paper jam) it is pos-
sible that the machine will not turn off, due to the
broken light barrier.
To remove these paper strips and also to clean
the photocell, pass another sheet of paper through
the feed slot, or switch the machine to reverse and
wipe both „eyes“ of the photocell with a brush.
MAINTENANCE OF THE
CUTTING MECHANISM:
Cross-cut cutting mechanisms must be
oiled after a certain operating time (after
approximately 15 minutes of continuous
use).
Proceed as follows:
Spread some oil on a sheet of paper and then
feed it into the cutting mechanism through the
paper feed slot (7).
The paper is drawn in and the oil thus gets into
the cutting mechanism.
To re-order the special oil, see “SPECIAL
ACCESSORIES”.
TIP FOR ENERGY SAVING:
Please make sure that the shredder is switched off
over night (pushbutton switch (1) (fig. 1).
TECHNICAL DATA
Cutting width: 2x8 mm
Cutting capacity: 8 sheets (70g/m 2 )
Supply voltage: see name plate
Pre-fusing: 10 amps (slow-blow)
Working width: 220 mm
Noise generation: 55 dBA
Power: see name plate
Short-time operation: 7 / 20 min
Dimensions (WxDxH): 350x270x570 mm
Weight: approx. 14 kg
SPECIAL ACCESSORIES
Description Order-No.
Lubrication bottle, 110 ml 88035
Note: For orders of special accessories and spare parts, please contact your dealer.
GB
DISPOSING OF THE MACHINE:
Dispose of the machine in an
environmentally sound fashion at the end
of its useful service life. Do not dispose of
any of the parts included in the machine
or its packaging with household trash.
DISPOSING
OPERATION
Translation of the Original Operation Manual
Übersetzung der Originalbetriebsanleitung
5
fig. 3
