4
InWall Subwoofer System
InWall Subwoofer Systems
Congratulations on your purchase of an Atlantic Technology InWall
Subwoofer System. This unique “invisible subwoofer” will enhance
your listening pleasure dramatically, by providing the bass founda-
tion upon which most music and special effects are built. In addi-
tion, its flexible control capability brings new meaning to the terms
system and room integration, providing unheard of fine tuning ca-
pability to optimize its performance and your enjoyment.
The InWall Subwoofer System is capable of delivering very high
output levels and wide dynamic range. When properly set up and
adjusted it will provide smooth in-room bass response down to ap-
proximately 25 Hz, with a peak SPL capability in excess of 105dB
(using two dual woofer modules and the SA-700 amplifier, in a 3000
cubic foot space).
LEVEL TRIM
FREQUENCY WIDTH ATTENUATION EQ 1 2 3 4 THX
I
O
MUTE
ON/STDBY
75 1.0 -10
25 125 0.2 1.5 -20 0dB
LOCATION EQ PHASE LOW PASS
0 270 90 180 80
50 150
THX / EXT
BASS LEVEL
MIN MAX
THX / REF
Subwoofer 1
SA-700
Servo Controlled
Subwoofer Amplifier Atlantic Technology
® I N N O V A T I V E H O M E T H E A T E R
75 1.0 -10
25 125 0.2 1.5 -20 0dB
0 270
90 180 80
50 150
THX / EXT
MIN MAX
THX / REF
Subwoofer 2

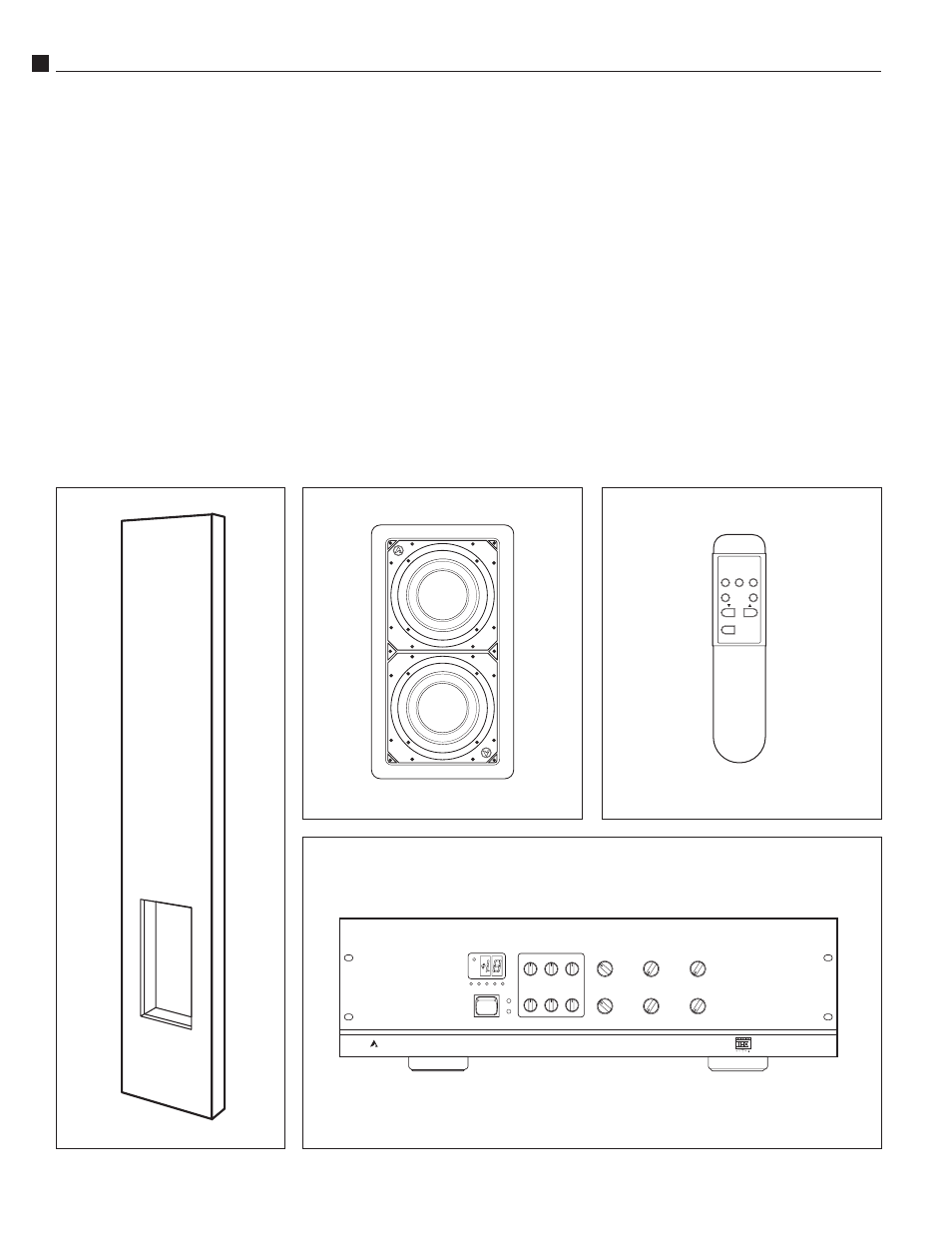

The system consists of in-wall enclosures (Fig. 1) designed to be
installed in your walls before the sheetrock is put up, a dual 8 inch
woofer driver assembly (Fig. 2) and a separate dedicated amplifier
and remote control (Fig. 3-4) to power the woofers. There are two
versions of the system, a single sub assembly paired with an SA-350
mono amplifier and two subwoofer assemblies paired with the SA-
700 dual mono amplifier. The combination two subwoofer assem-
bly/SA-700 system is THX Ultra certified.
Your Atlantic Technology powered subwoofer is designed to
smoothly integrate with virtually all other brands of loudspeakers
on the market. And from its premium gold plated connectors to its
very flexible range of adjustment, this is one of the most versatile
and unique high performance subwoofers ever produced.
InWall Subwoofer Systems
EQ1 EQ2 EQ3
EQ4 REF
TRIM
MUTE
Atlantic Technology
®
Figure 1 Figure 2 Figure 3
Figure 4
