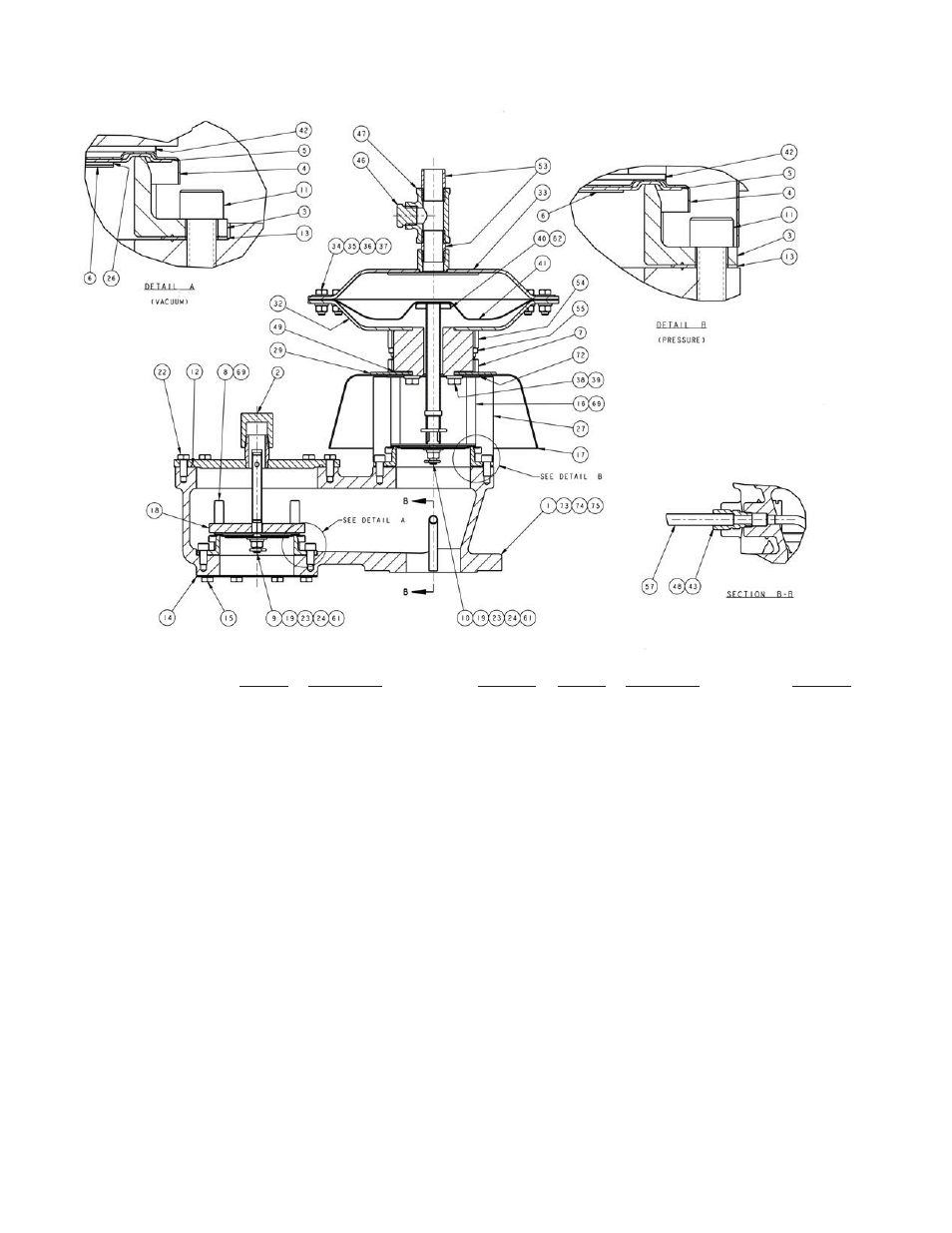

Model 5100 relief vent – Cashco 5100 User Manual
Page 12
Valve Concepts, Inc./ Cashco, Inc.
607 W. 15th Street
Ellsworth, KS 67439
PH (785) 472-4461
FAX (785) 472-3539
www.cashco.com
email: [email protected]
Printed in U.S.A. Model 5100
ITEM NO.
DESCRIPTION
Repair Part
ITEM NO.
DESCRIPTION
Repair Part
1
Body
34
Case Bolts
2
Cover Assembly
35
Case Nuts
3
Seat Ring Pallet
36
Flat Washer
4
Pallet
37
Lock Washer
5
Diaphragm
*
38
Adapter Bolt
6
Diaphragm Retainer Plate
39
Adapter Lock Washer
7
Jack Screw
40
Support Plate (Weldment)
8
Vacuum Pallet Guide
41
Actuator Diaphragm
*
9
Vacuum Stem
42
Stiffener Plate
10
Pressure Pallet Stem
43
Strainer
11
Seat Ring Bolts
46
Pipe Plug (Sense)
12
Cover Gasket
*
47
Tee
13
Seat Ring Gasket
*
48
Sense Tube Connector
14
Inlet Screen Assembly
49
Adapter Gasket
*
15
Bolts
50
Name Plate
16
Pressure Pallet Guide
51
Drive Screw
17
Weather Hood
52
Caution Decal
18
Pallet Weight
53
Pilot Mounting Nipple
19
Lock Washer
54
Jack Nut
22
Cover Bolts
55
Jam Nut
23
Pallet Nut
57
Sense Tubing
24
Plain Washer
61
Cotter Pin
26
Diaphragm Retainer
62
Cotter Pin
27
Outlet Screen
69
Stud Spacer
29
Pressure Plate
72
Flat Washer
32
Lower Case Assembly
73
Washer
33
Upper Case Assembly
74
Nut
75
Stud
MODEL 5100 RELIEF VENT
