Hydrotech DLR-A Ultraviolet Water Disinfection Unit - Manual (Page 10)

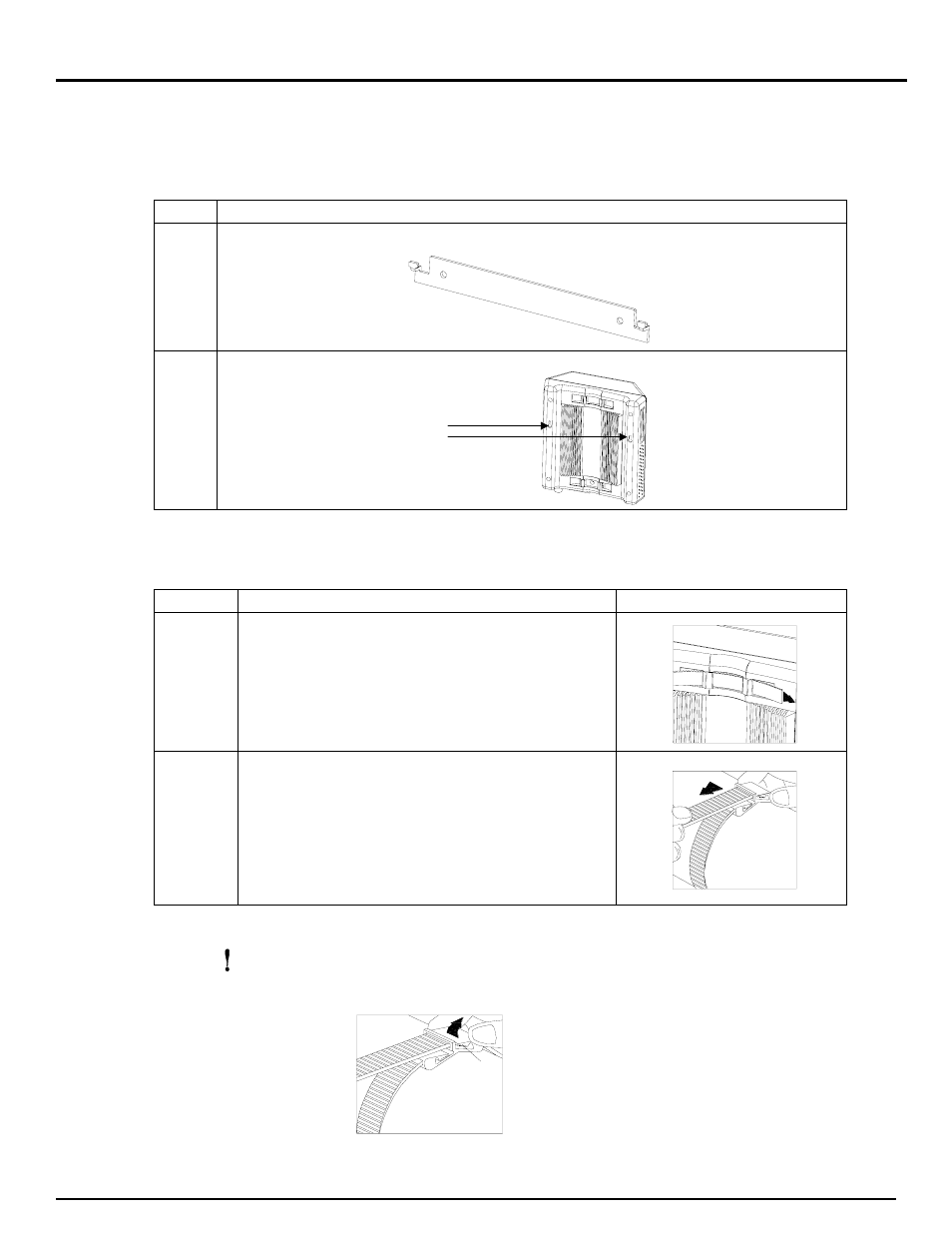

Mounting Electrical Control Box
The electrical control box can be mounted on the wall (Option A) or on the
disinfection chamber (Option B), according to the following instructions.
Option A: Wall
mount
Follow these steps to mount the electrical control box on the wall.
Step Action
1 Attach the optional wall mount bracket to the wall using suitable hardware for your wall
surface.
2 Position the keyhole slots on the back of the electrical control box over the tabs on the
wall mount bracket and slide into place.
Option B:
Chamber
mount
Follow these steps to mount the electrical control box on the disinfection chamber.
Step Action Diagram
1 Feed the electrical control box straps through the
upper and lower recessed areas on the back of the
electrical control box.
2 Position the electrical control box on the UV
disinfection chamber: Wrap the electrical box straps
around the chamber, push loose end through high
side of Q-Clip, and pull through to tighten.
Keyhole Slots
IMPORTANT!
If it is necessary to remove the electrical control box strap, lift the pawl to
release the Q-Clip. You may need to use a screwdriver to lift the pawl.
9
P A W L
