Installation of Quick Connect Pentek Cartridges in the
PURA Ultimate Point-of-Use Cooler
Please verify that all the required items have been received.
The quick connect Pentek Cartridge kit includes the following items.
1. Head, Cartridge, Quick Connect (1) Part # 244426
2. Cartridge, Sediment (1) Part # 25568843
3. Carbon Cartridge c/w Head (1) Part # 158682
4. Tubing, 1¼”, white (10 FT) Part # 115200

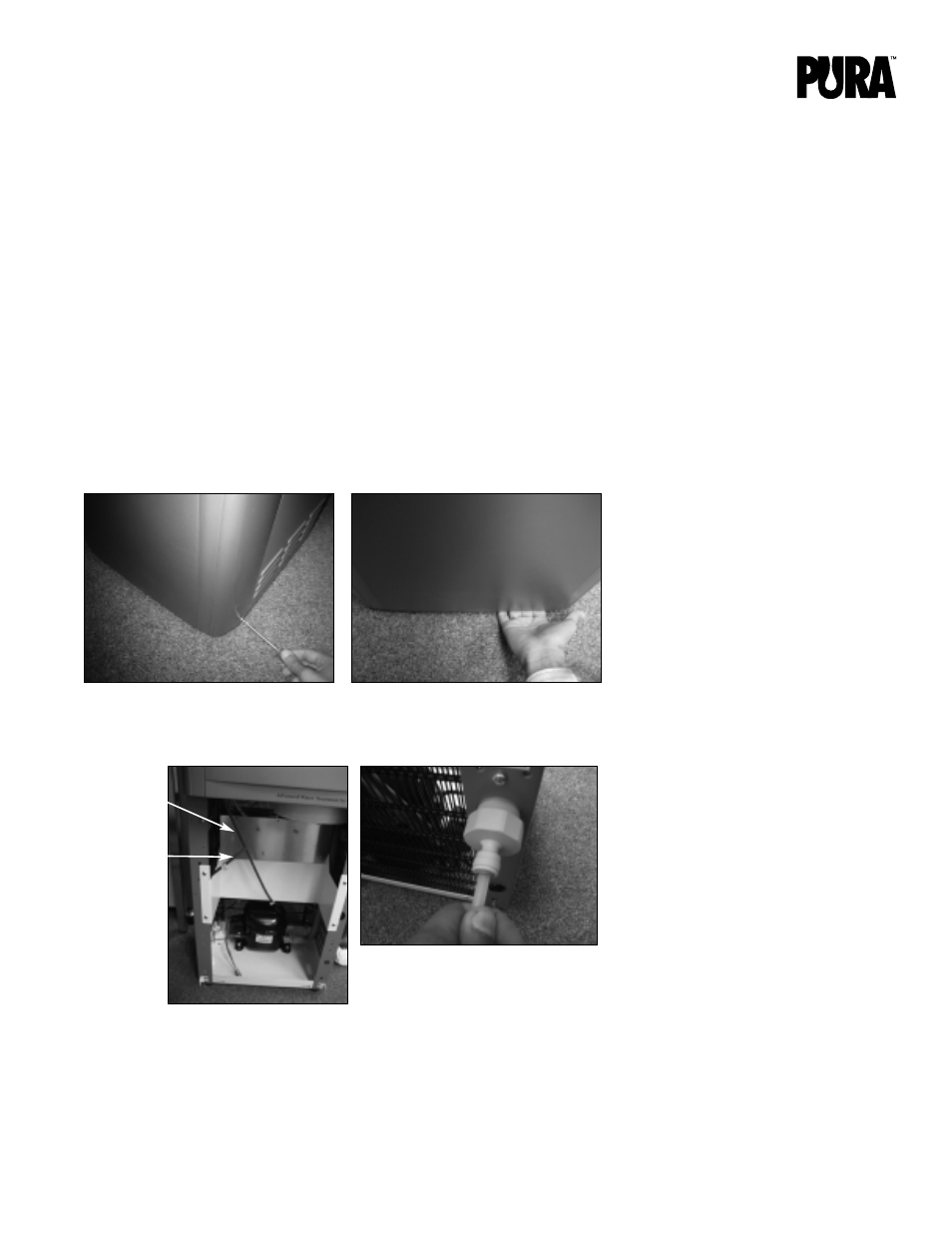

Quick Connect Pentek Cartridge Installation Instructions
1. Remove the lower front panel. Two screws securing the lower front panel are located in the front, lower
sides near the floor. Depress the recessed tabs of the lower front panel and pull outward simultaneously
to remove.
2. Insert the ¼” inlet blue water tubing on to the inlet quick connect bulk fitting located at the back of the
cooler. There will be a blue ¼” tubing attached to the cooler.
¼” Tubing
from the
Cooler
¼” Inlet
Water
Tubing
