Hydrotech PURA ADDON SERIES - Manual (Page 19)

14
1 Housing, UV1, Pura* 92500-1
2 “O” Ring, UV1, Pura 92060
3 Filter, Carbon EPCB 10” 33004030
4 Gasket, c/w Filter -----
5 Spacer, UV1, Pura 32701010
6 Mounting Bracket, UV1, Pura 31910107
7 Retainer, UV Lamp UV1 31910408
8 Washer, #14 Nylon 32800031
9 Screw, #10-16 x 1" 32701007
10 Screw, #10 x 3/4" 32701006
11 UV Control, with Finish Cap 40200080†
12 Bushing, Spacer #10 SL 22401017
13 Cap, Finish, c/w Control -----
14 Sleeve, Quartz #10 with “O” Rings 36003033
15 Sleeve, Teflon 30120506
16 “O” Ring Quartz Sleeve UV1 34202020
17 Lamp, UV #10 36002016
† Consult Factory to determine part number for applications other than 120V/60hz ‡ not shown
*92500-1 includes Items 1, 2, 5, 8, 9 &16.

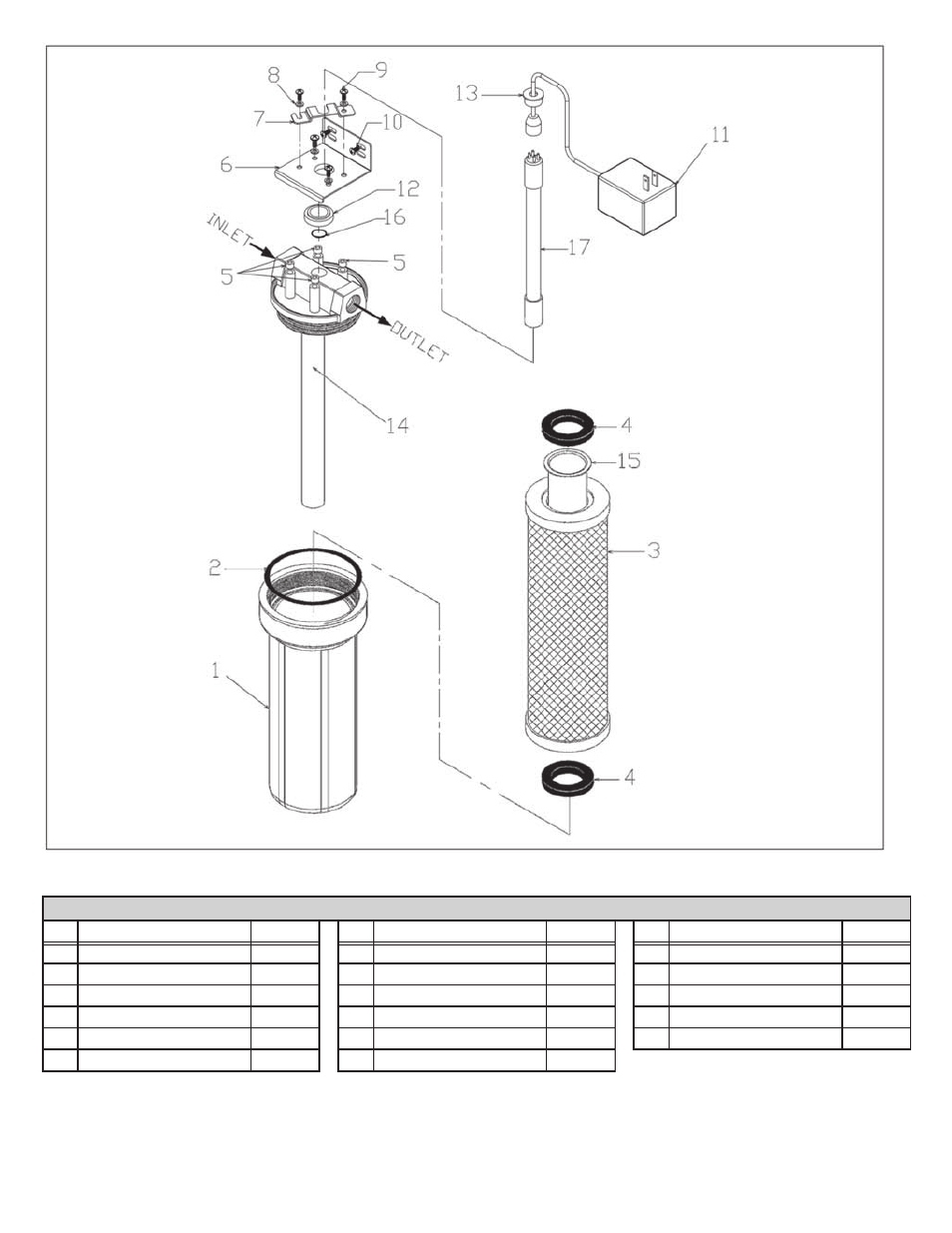

Figure 7 Exploded Schematic, PURA UV1 Series
Parts List - UV1 Series
Item Description Part No. Item Description Part No. Item Description Part No.
