How Your 5600 SXT Downflow Water Conditioner Works
Hard water enters your home through the main supply line, enters the softener and passes down through a resin mineral
bed which softens the water. An ion exchange process takes place in which the resin beads capture and hold calcium and
magnesium, the hardness minerals, while the water takes on sodium ions. The soft water then flows into your household
water line.

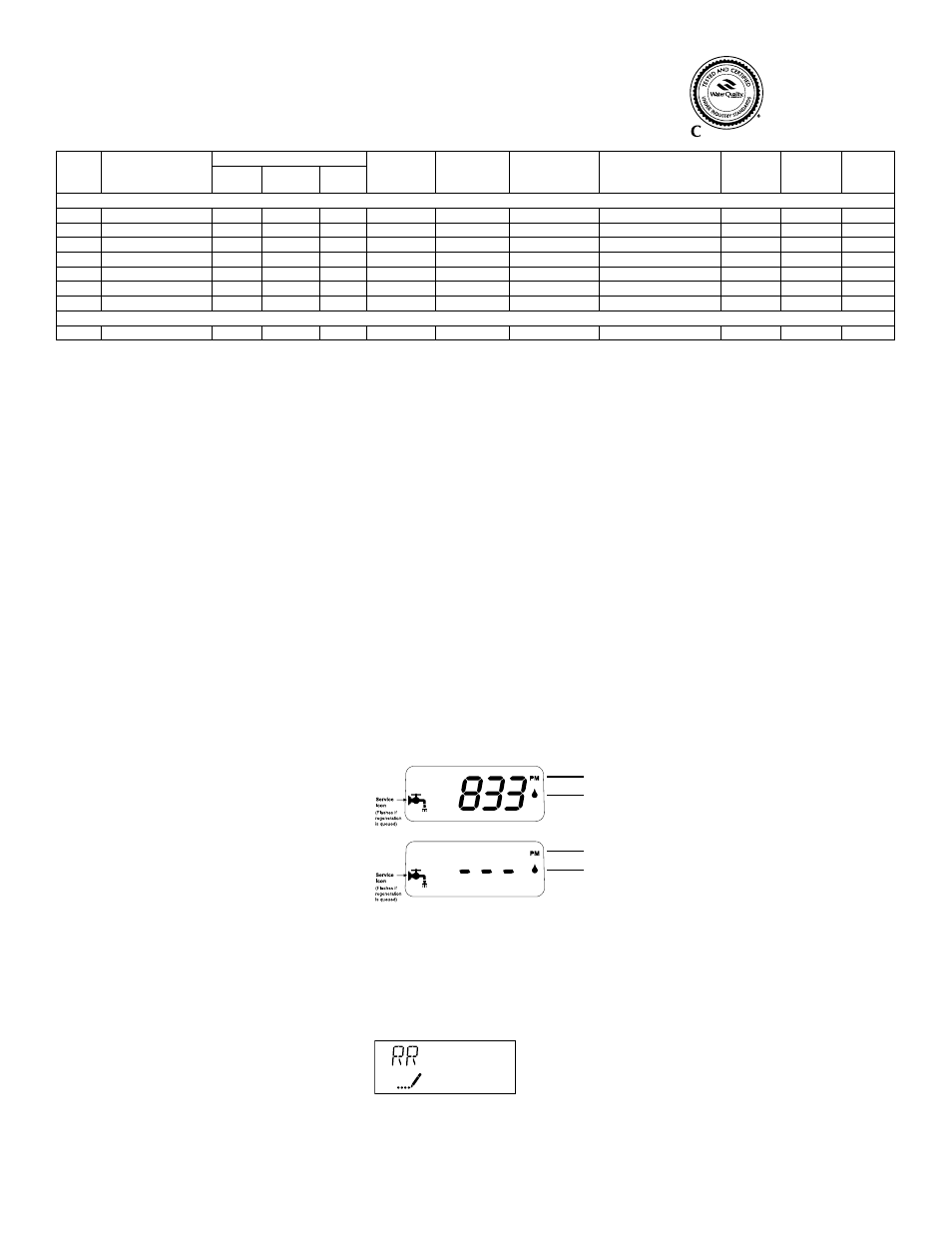

In normal operation, the Time of Day display will alternate being viewed with the Volume Remaining display. This display
will be in gallons, liters or cubic meters. As treated water is used, the Volume Remaining display will count down from a
maximum value to zero or (---). Once this occurs, a regeneration cycle will be initiated at the Set Regeneration Time. Water
flow through the valve is indicated by the Flow Indicator that will flash in direct relationship to flow rate.
Example 833 Gallons of Treated
Water Remaining
0 Gallons of Treated
Water Remaining
Control Operation During Regeneration
In regeneration, the control will display a special regeneration display. In this display, the control will show the current
regeneration step number the valve is advancing to or has reached and the time remaining in that step. The step number
displayed will flash until the valve has completed driving into this regeneration step position. Once all regeneration steps
have been completed, the valve will return to Service and resume normal operation.
Example Less than 6 minutes
remaining in Regen
Step Rapid Rinse
Pushing the Extra Cycle Button during a regeneration cycle will immediately advance the valve to the next cycle step
position and resume normal step timing.
5
PM Indicator
PM Indicator
Flow Indicator
(Flashing with water flow)
Flow Indicator
(Flashing with water flow)
WQA Tested and
Certified against
CSA B483.1
Performance Data Sheet and Specification
Item No.
Model
Number
Capacity - Grains Service
Flow Rate
USGPM (LPM)
Maximum
Flow to Drain
USGPM (LPM)
Resin
Tank Size
inches (mm)
Brine
Tank Size
inches (mm)
Resin
Volume
cu. ft (litres)
Salt
Capacity
lbs (kg)
Shipping
Weight
lbs (kg)
@ 15 lbs
/cu.ft
Factory @
10 lbs/cu.ft
@ 6 lbs
/cu.ft
Twin Tank Models
7605 5600SXTM-20 22,000 20,000 15,000 8.0 (30.3) 1.2 (4.5) 8 x 47 (203 x 1194) 18 x 35 (457 x 889) 0.75 (21.2) 224 (101.6) 90 (40.8)
7713 5600SXTM-20 (8x44) 22,000 20,000 15,000 8.0 (30.3) 1.2 (4.5) 8 x 44 (203 x 1118) 18 x 35 (457 x 889) 0.75 (21.2) 224 (101.6) 90 (40.8)
7606 5600SXTM-30 30,000 27,000 20,000 10.0 (37.9) 1.5 (5.7) 9 x 48 (229 x 1219) 18 x 35 (457 x 889) 1.00 (28.3) 224 (101.6) 105 (47.6)
7714 5600SXTM-30 (10x35) 30,000 27,000 20,000 10.0 (37.9) 1.5 (5.7) 10 x 35 (254 x 889) 18 x 35 (457 x 889) 1.00 (28.3) 224 (101.6) 105 (47.6)
7607 5600SXTM-45 45,000 41,000 30,000 11.0 (41.6) 2.0 (7.6) 10 x 54 (254 x 1372) 21 x 36 (533 x 914) 1.50 (42.5) 308 (139.7) 140 (63.5)
7608 5600SXTM-60 60,000 55,000 40,000 15.0 (56.8) 3.0 (11.4) 12 x 52 (305 x 1321) 21 x 36 (533 x 914) 2.00 (56.6) 308 (139.7) 185 (83.9)
7609 † 5600SXTM-90 90,000 82,000 60,000 15.0 (56.8) 4.0 (15.1) 14 x 65 (356 x 1651) 21 x 36 (533 x 914) 3.0 (84.5) 308 (139.7) 255 (115.7)
Cabinet Models
7712 WTC5630SXT 30,000 27,000 20,000 10.0 (37.9) 1.5 (5.7) 10 x 35 (254 x 889) 21 x 13 x 44 (533x330x1118) 1.00 (28.3) 359 (163) 90 (40.8)
† Not certified by WQA
Working Temperature = 34-110°F (1-43°C)
(Do not subject the unit to freezing temperatures)
Working Pressure = 20-125 PSIG (137-861 kPa)
Voltage = 120V / 60 Hz
Pipe Size = 3/4”
• At the stated service flow rates, the pressure drop through these devices will not exceed 15 psig.
• Changing salt settings from factory setting may require changing injector sizes to achieve stated capacities
• The manufacturer reserves the right to make product improvements which may deviate from the
specifications and descriptions stated herein, without obligation to change previously manufactured products
or to note the change.
* Do not use water that is microbiologically unsafe without adequate disinfection before or after the system.
