6
Maintenance Instructions
Checking the Salt Level
Check the salt level monthly. Remove the lid from the cabinet or brine tank, make sure salt level is always above the brine
level (you should not be able to see water).
Adding Salt
Use only clean salt labeled for water conditioner use, such as crystal, pellet, nugget, button or solar.
The use of rock salt is discouraged because it contains insoluble silt and sand which build up in the brine tank and can
cause problems with the system’s operation.
Add the salt directly to the tank, filling no higher than the top of the brine well.
Caution
Liquid brine will irritate eyes, skin and open wounds - gently wash exposed area with fresh water. Keep children away
from your water conditioner.
Resin Cleaner
An approved resin cleaner must be used on a regular basis if your water supply contains iron. The amount of resin
cleaner and frequency of use is determined by the quantity of iron in your water (consult your local representative or follow
the directions on the resin cleaner package).
Care of Your Water Conditioner
To retain the attractive appearance of your new water conditioner, clean occasionally with a mild soap solution. Do no use
abrasive cleaners, ammonia or solvents. Never subject your conditioner to freezing.

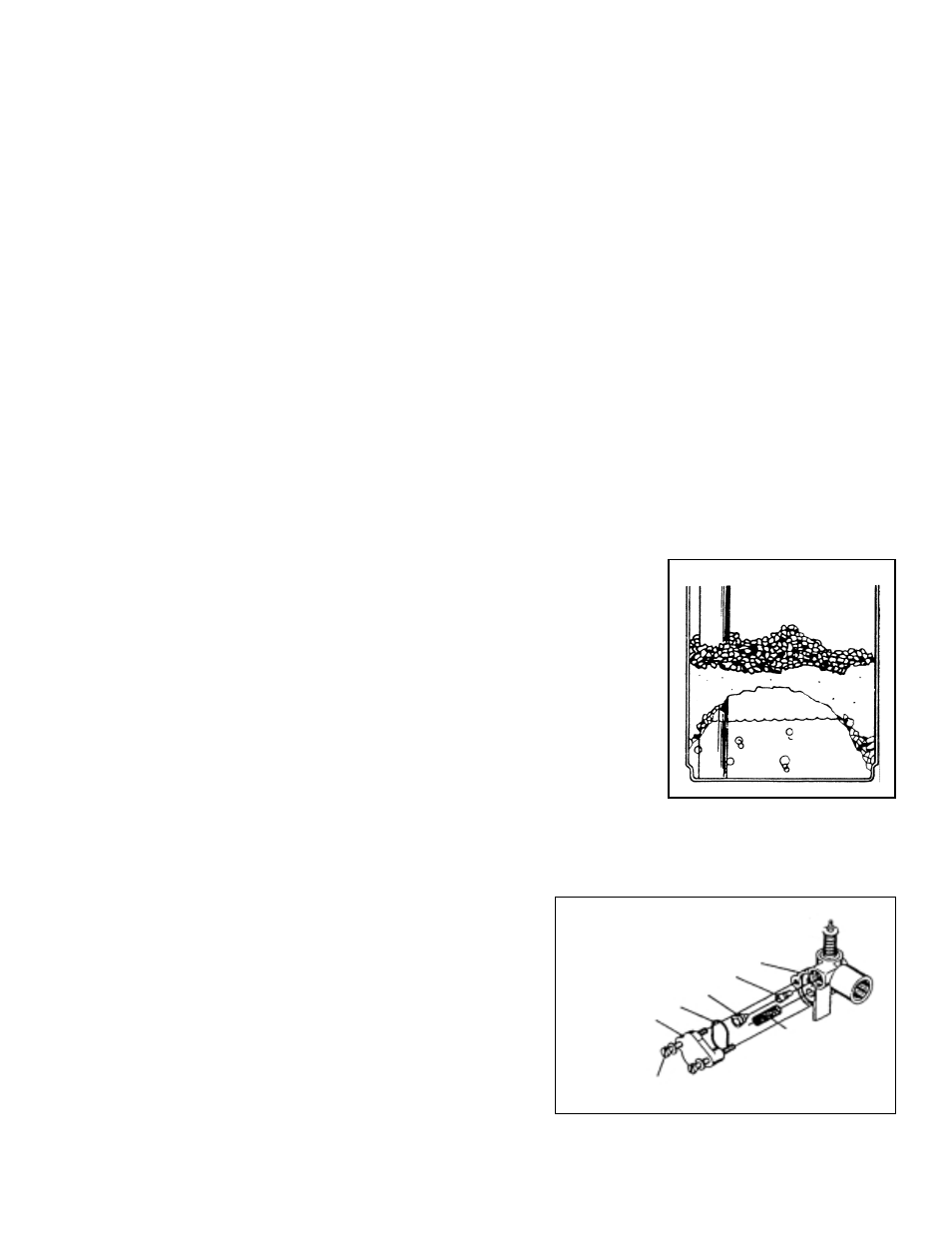

Bridging (Figure 5)
Humidity or the wrong type of salt may create a cavity between the water and the salt.
This action, known as “bridging”, prevents the brine solution from being made, leading
to your water supply being hard.
If you suspect salt bridging, carefully pound on the outside of the plastic brine tank or
pour some warm water over the salt to break up the bridge. This should always be
followed up by allowing the unit to use up any remaining salt and then thoroughly
cleaning out the brine tank. Allow four hours to produce a brine solution, then
manually regenerate the softener.
Cleaning The Injector Assembly (Figure 6)
Sediment, sand and silt will restrict or clog the injector. A clean water supply and pure salt will prevent this from
happening.
The injector assembly is located on the left side of the control valve.
This assembly is easy to clean.
Shut off the water supply to your water conditioner and reduce the
pressure by opening a cold soft water faucet. Using a screwdriver,
remove the two screws holding the injector assembly to the control
valve body. Carefully remove the assembly and disassemble as shown
in Figure 6. The injector orifice is removed from the injector body by
carefully turning it out with a screwdriver. Remove the injector throat
the same way. Carefully flush all parts with water. Use a mild acid such
as vinegar or Pro-Rust Out to clean the small holes in the orifice and
throat. Reassemble using the reverse procedure.
Do not over tighten.
Figure 5
INJECTOR BODY
INJECTOR THROAT
INJECTOR NOZZLE
“O” RING
INJECTOR COVER
INJECTOR SCREEN
SCREW
Figure 6
