Hydrotech 7000 SXT Valve nextSand Turbidity & Sediment Filter Operation Manual - Manual (Page 3)

How Your 7000SXT Water Filter Works
Raw water enters your home through the main supply line, enters your filter, and passes downward through the media
bed. Impurities such as turbidity and sediment (nextSand filter) are removed from the water. The filtered water then
flows into your household water lines. Periodic regeneration is required to flush entrapped material from the system.
In normal operation, the Time of Day display will alternate being viewed with the Volume Remaining display. This display
will be in gallons, liters or cubic meters. As treated water is used, the Volume Remaining display will count down from a
maximum value to zero or (---). Once this occurs, a regeneration cycle will be initiated at the Set Regeneration Time. Water
flow through the valve is indicated by the Flow Indicator that will flash in direct relationship to flow rate.

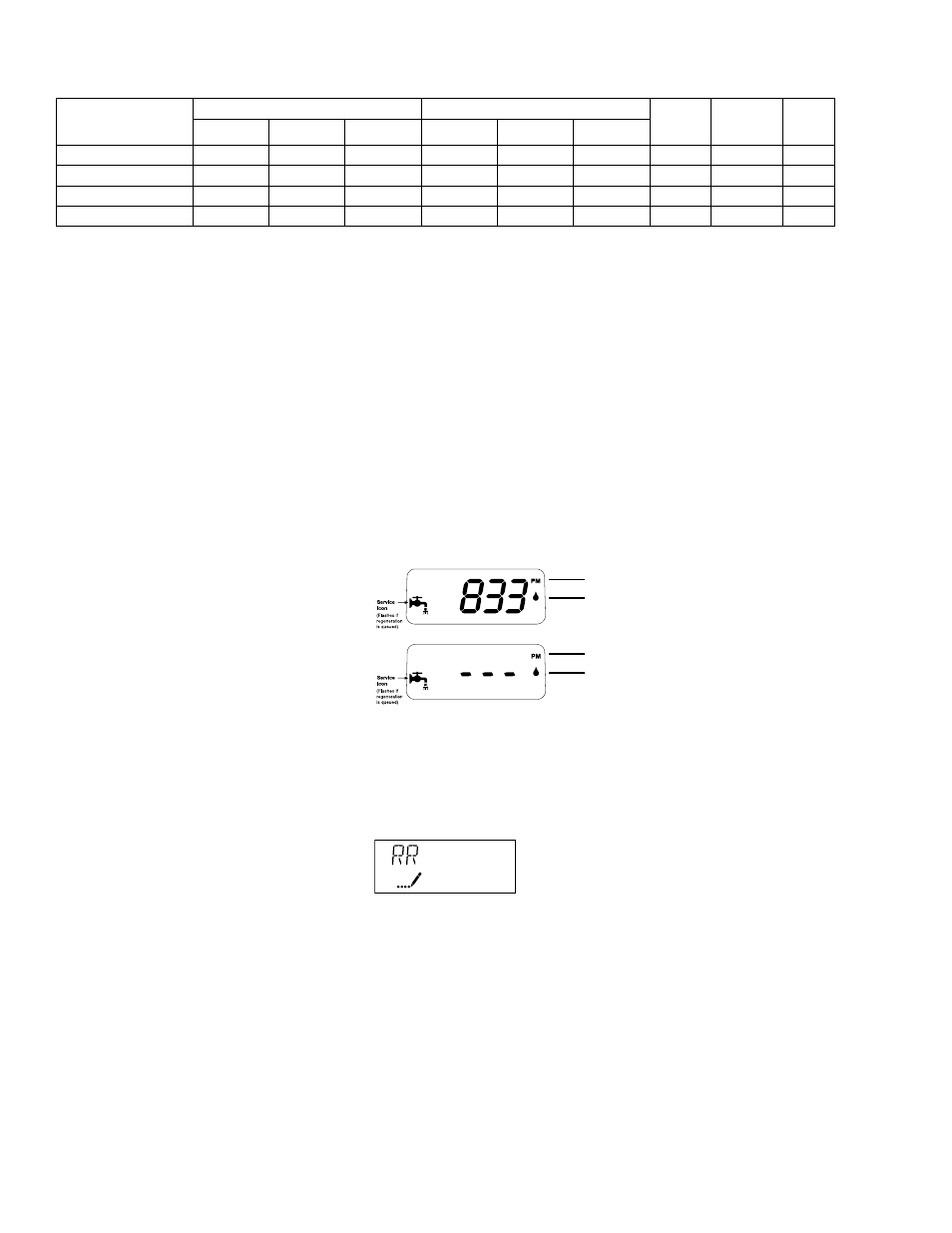

Example 833 Gallons of Treated
Water Remaining
0 Gallons of Treated
Water Remaining
Control Operation During Regeneration
In regeneration, the control will display a special regeneration display. In this display, the control will show the
current regeneration step number the valve is advancing to or has reached and the time remaining in that step. The
step number displayed will flash until the valve has completed driving into this regeneration step position. Once all
regeneration steps have been completed, the valve will return to Service and resume normal operation.
Example Less than 6 minutes
remaining in Regen
Step Rapid Rinse
Pushing the Extra Cycle Button during a regeneration cycle will immediately advance the valve to the next cycle step
position and resume normal step timing.
1
Performance and Specifications
Notes:
Operating Temperature Range: 34° to 110°F (1° to 43°C)
Operating Pressure Range: 20 to 120psi (137 to 827 kPa)
Electrical: 24V/60Hz with a supplied 120V/60Hz Wall Mount Approved Transformer
1. The manufacturer reserves the right to make product improvements which deviate from the
specifications and descriptions stated herein without obligation to change previously manufactured
products or to note the change.
2. Peak flow rates are intended for intermittent use only and are for residential application only.
Caution: These water conditioners are not intended to be used for treating water that is microbiologically unsafe or of unknown quality without adequate
disinfection before or after the system.
PM Indicator
PM Indicator
Flow Indicator
(Flashing with water flow)
Flow Indicator
(Flashing with water flow)
5
Model #
Flow Rates USGPM (For ultrafine particle removal) Flow rates for Typical Application USGPM
Installation
Space
Fiberglass
Tank Size -
Inches
Shipping
Weight -
Lbs Service Peak Backwash Service Peak Backwash
7000CC-847NEXTSF-75 4.0 5.0 5 5.6 7.0 5 10 x 21 x 57 8 X 47 95
7000CC-948NEXTSF-100 5.0 7.0 7 7.1 8.8 7 11 x 21 x 58 9 X 48 145
7000CC-1054NEXTSF-150 7.0 8.0 8 8.7 10.9 8 12 x 21 x 64 10 X 54 213
7000CC-1252NEXTSF-200 10.0 12.0 12 12.6 15.7 12 14 x 21 x 62 12 X 52 265
