AQUA-LAB CS1 PREP
COMPACT CHEMICAL DISPENSING SYSTEM
SYSTEM INCLUDES
(1) CAT Pump, 2.9 GPM @ 200 PSI (1) Water Valve
(1) 1 HP Motor (1) Air Valve
(1) Chem-Flex Quick Connect Chemical Injector (1) Air Regulator w/ Pressure Gauge
(1) Application Wand/Gun (1) Mounting Panel/Stand
SYSTEM REQUIREMENTS/SPECIFICATIONS
Power 120 Volt, 15 Amp (Independent On/Off Switch)
Inlet Water Pressure 0-60 PSI Inlet Feed at Max. Flow
Water Inlet Feed 3 ⁄
8
” ID Inlet
Water Filtration 50 Micron
Solution Outlet 1 ⁄
2
” Polyflow Tubing Recommended
Maximum Water Source Temperature 140°F
Air Inlet Pressure 60-100 PSI Dry Air
Air Outlet 3 ⁄
8
” Polyflow Tubing
Weight 50 lbs.
Dimensions 20” L x 12” W x 16” H

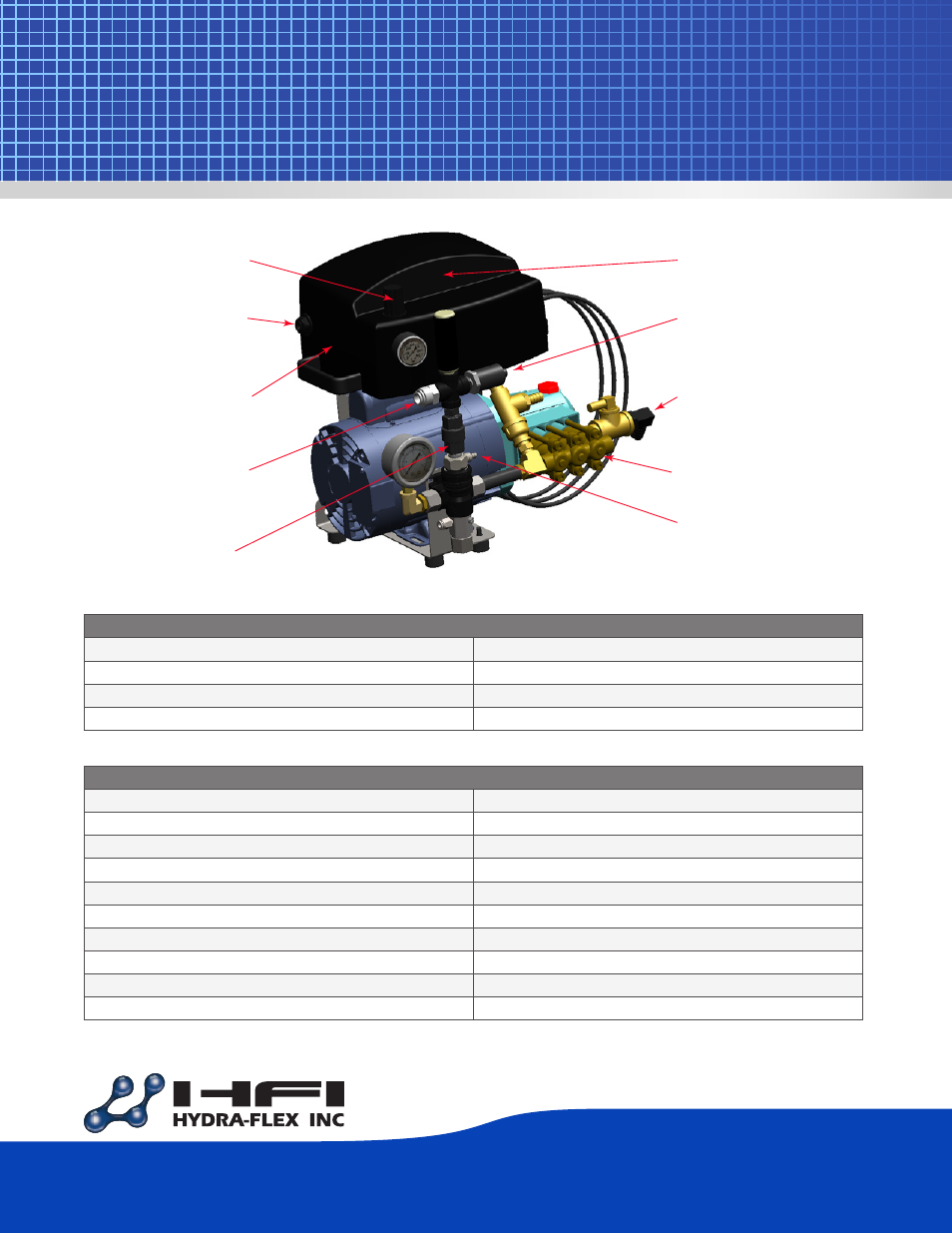

3/8” Push-to-Connect
Foaming Air Outlet
3/8” Push-to-Connect
Air Inlet
Foaming Air Regulator
with Pressure Gauge
Adjustable
Pressure Switch
1/2” Push-to-Connect
Water Inlet
(or 3/8” NPT)
2.9 GPM CAT Pump
1/4” Hose Barb
Chemical Inlet
(Uses #8-32 Metering Tips)
Bug Prep Assembly
1/2” Push-to-Connect
Solution Outlet
Integrated
Motor Control
