TSUNAMI FOAM APPLICATOR +
AQUA-LAB CHEMICAL DISPENSING
SYSTEM REQUIREMENTS
Power 115V/1PH/18A or 230V/1PH/9A
Inlet Water Pressure 2-60 PSI
Water Inlet Line 3/4” ID
Solution Outlet Lines (3) 1/2” Polyflow
Water Filtration 50 Micron
Maximum Water Source Temperature 140°F
Air Inlet Pressure 60 PSI Min. / 120 PSI Max.
Air Inlet Line 3/8” Polyflow
Air Outlet Lines (3) 3/8” Polyflow
DIMENSIONS (W x H inches)
Tsunami Mounting Manifold 91 x 1.5 square
Tsunami Foam Tray 86 x 8
Aqua-Lab Chemical Dispensing Panel 17 x 22
Pump 8 x 36
Electrical Box 9.5 x 6
SYSTEM INCLUDES
(1) Tsunami Stainless Steel Foam Bar and Tray
(1) Aqua-Lab Single Application Chemical Dispensing Panel
(1) 7 GPM Pump
(1) Electrical Box
(1) Triple Foam Manifold
(3) Foaming Air Regulators with (3) Pressure Gauges
(3) Chem-Flex Injectors each @ 2.25 GPM (P/N 618086)
(3) Foam Generators
OPTIONAL EQUIPMENT
3” Stainless Steel Arch 10’ x 8’
LED Light Bar
Foaming Air

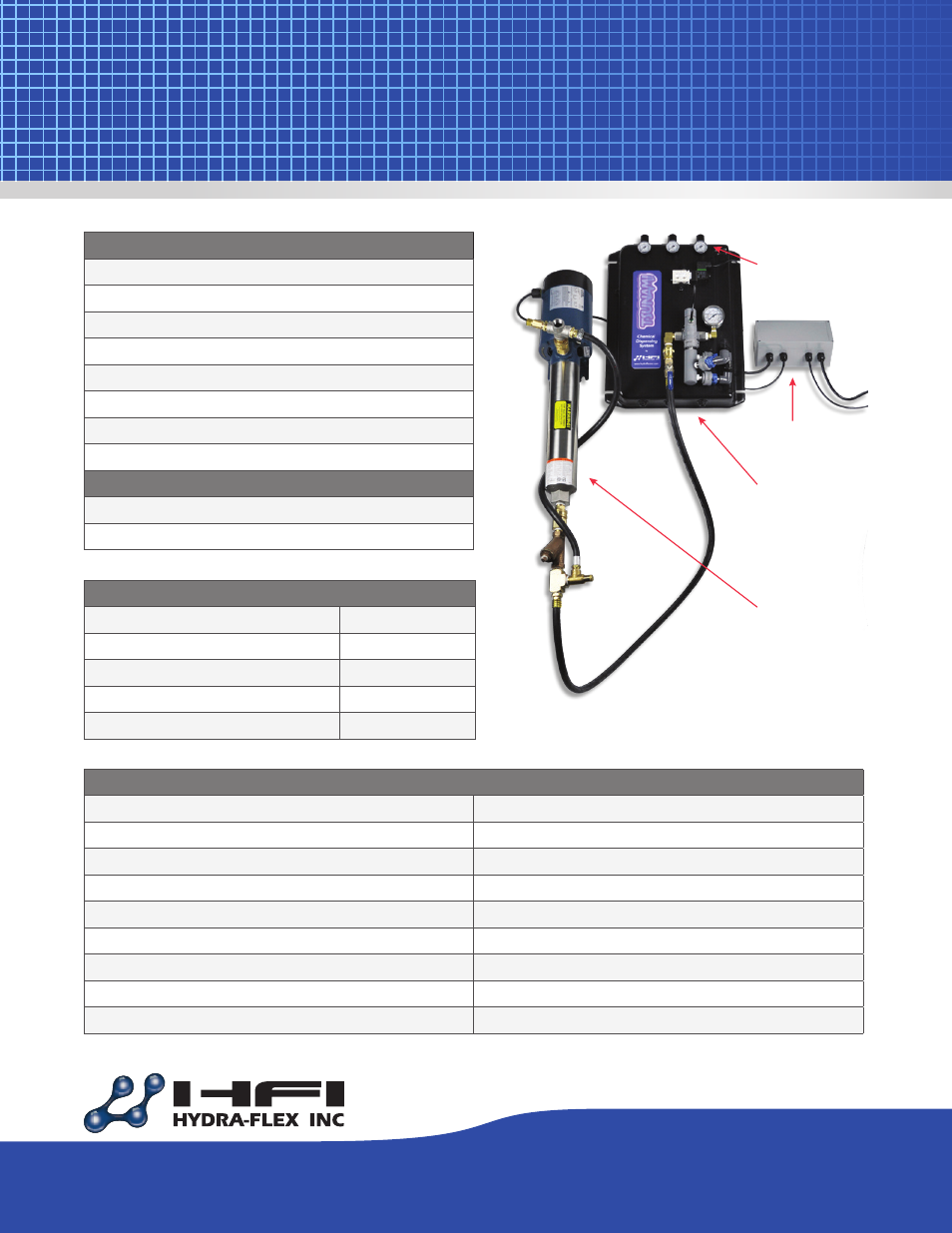

Regulator with
Pressure Gauge
Electrical Box
Aqua-Lab Chemical
Dispensing Panel
withTriple Foam
Manifold and (3)
Chem-Flex
Injectors
7 GPM Pump
