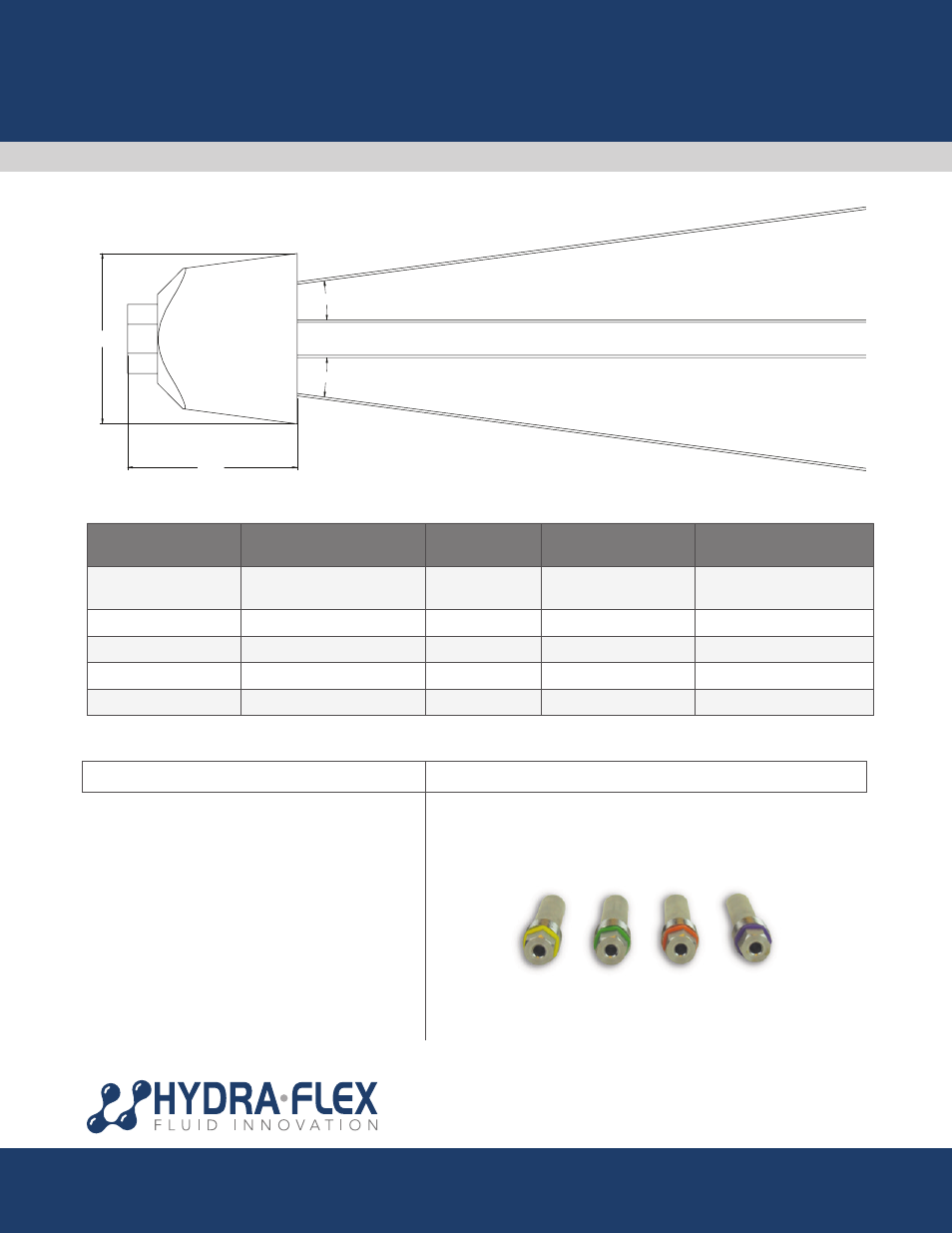

SWITCHBLADE

LINEAR HYDRO-EXCAVATION NOZZLE

PART NUMBER

DESCRIPTION

COLOR

FLOW RATE

@ 3200 PSI

CONNECTION THREAD

1001779

Nozzle Body - 4 Pill Ports

Blue

1/2” NPT Inlet,

30 Mesh Screen

1001780-020

2.0 Nozzle Pill

Yellow

1.6 GPM

1/8” NPT

1001780-030

3.0 Nozzle Pill

Green

2.4 GPM

1/8” NPT

1001780-040

4.0 Nozzle Pill

Orange

3.2 GPM

1/8” NPT

1001780-050

5.0 Nozzle Pill

Purple

4.0 GPM

1/8” NPT

Maximum Inlet Pressure: 3,200 PSI (220 Bar)

Maximum Water Temperature: 180

ºF (+82ºC)

Housing Material: Stainless Steel

Coating Material: Urethane

Nozzle Tip Material: Tungsten Carbide

COLOR-CODED NOZZLE PILLS:

SPECIFICATIONS:

3.376

3.390

7.5°

2.0

Yellow

3.0

Green

4.0

Orange

5.0

Purple
