Due to its Kynar-molded, wetted surface, the CHEM-FLEX
injector will not corrode like an injector machined from stainless
steel or brass. In conjunction with the exclusive XFC O-ring,
and Teflon
®
ball the CHEM-FLEX injector is the longest lasting,
most reliable injector available.
CHEM-FLEX INJECTOR
CHEM-FLEX comes in a variety of convenient nozzle sizes. Contact your
HFI Sales Representative for assistance sizing your CHEM-FLEX Injector.

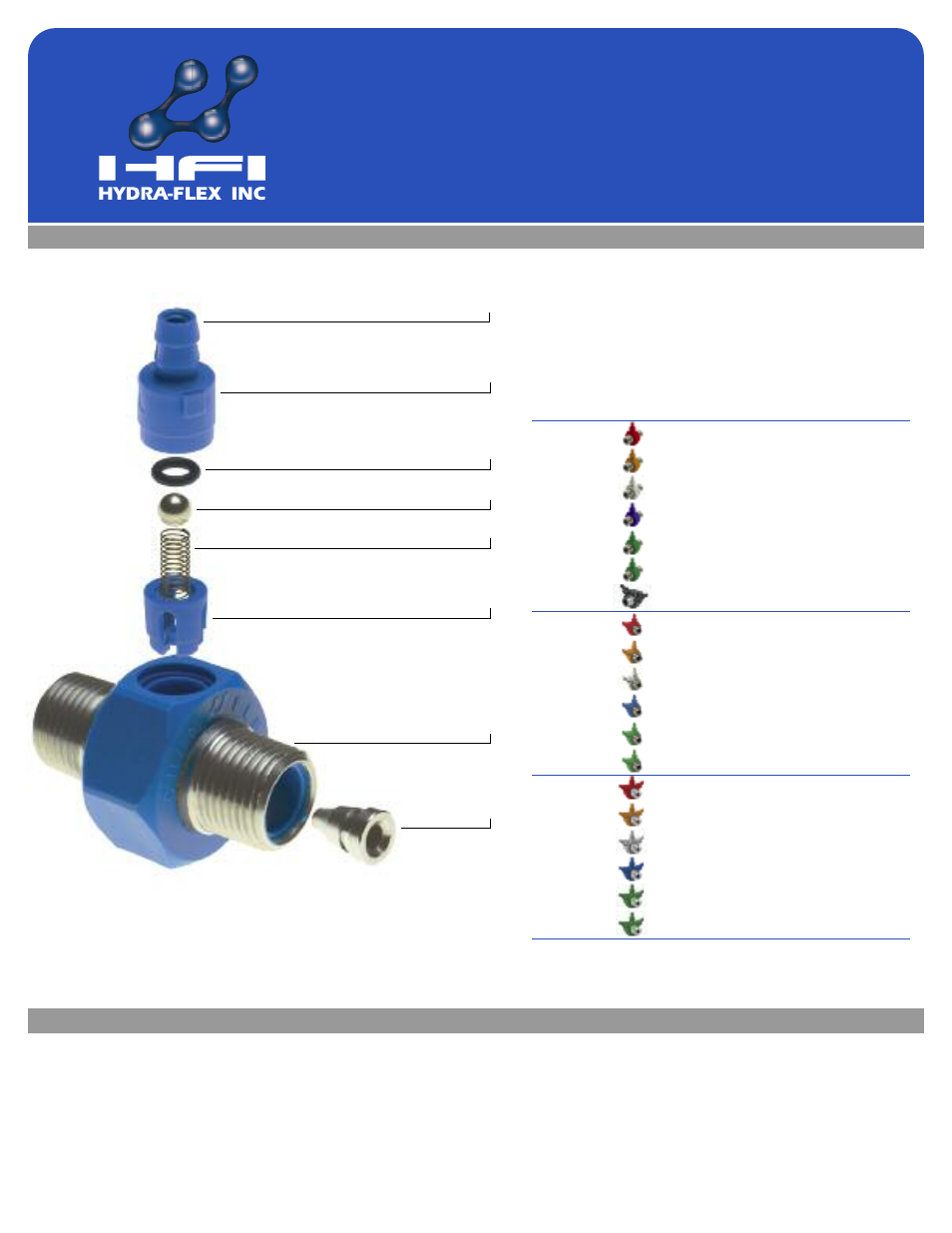

Barb fitting
XFC O-ring for increased chemical
resistance to reduce O-ring swelling
Teflon check ball
Hastelloy spring
Innovative insert molded Kynar body;
resistant to chemicals and corrosion
Convenient NPT attachment
Many convenient
nozzle sizes,
body color coded
to nozzle size
Hydra-Flex, Inc.
680 East Travelers Trail
Burnsville, MN 55337
952.808.3640
T
952.808.3650
F
www.hydraflexinc.com
Threaded fitting to allow for
installation of metering tips
Part
Number
Color
Flow
Orifice
Flow Range
@200 PSI
Barbs &
Barb Angle
118057
0.057 in.
1.0 GPM
1
118070
0.070 in.
1.4 GPM
1
118083
0.083 in.
2.1 GPM
1
118086
0.086 in.
2.3 GPM
1
118098
0.098 in.
3.2 GPM
1
118125
0.125 in.
5.5 GPM
1
128083
0.083 in.
2.1 GPM
2@120°
129057
0.057 in.
1.0 GPM
2@60°
129070
0.070 in.
1.4 GPM
2@60°
129083
0.083 in.
2.1 GPM
2@60°
129086
0.086 in.
2.3 GPM
2@60°
129098
0.098 in.
3.2 GPM
2@60°
129125
0.125 in.
5.5 GPM
2@60°
139057
0.057 in.
1.0 GPM
3@60°
139070
0.070 in.
1.4 GPM
3@60°
139083
0.083 in.
2.1 GPM
3@60°
139086
0.086 in.
2.3 GPM
3@60°
139098
0.098 in.
3.2 GPM
3@60°
139125
0.125 in.
5.5 GPM
3@60°
Pressure Range:
100 psi – 1000 psi
Temperature Range:
33°F – 175°F
Maximum Wrench Torque:
30 ft
•
lbs
