Wireless PCI Adapter 3

ENGL

ISH

2. Hardware Installation

The following diagrams provide you a basic installation for the Adapter, which is
suitable for most desktop PCs. For more information about the PCI slot, please
refer to the user's manual of your main board.

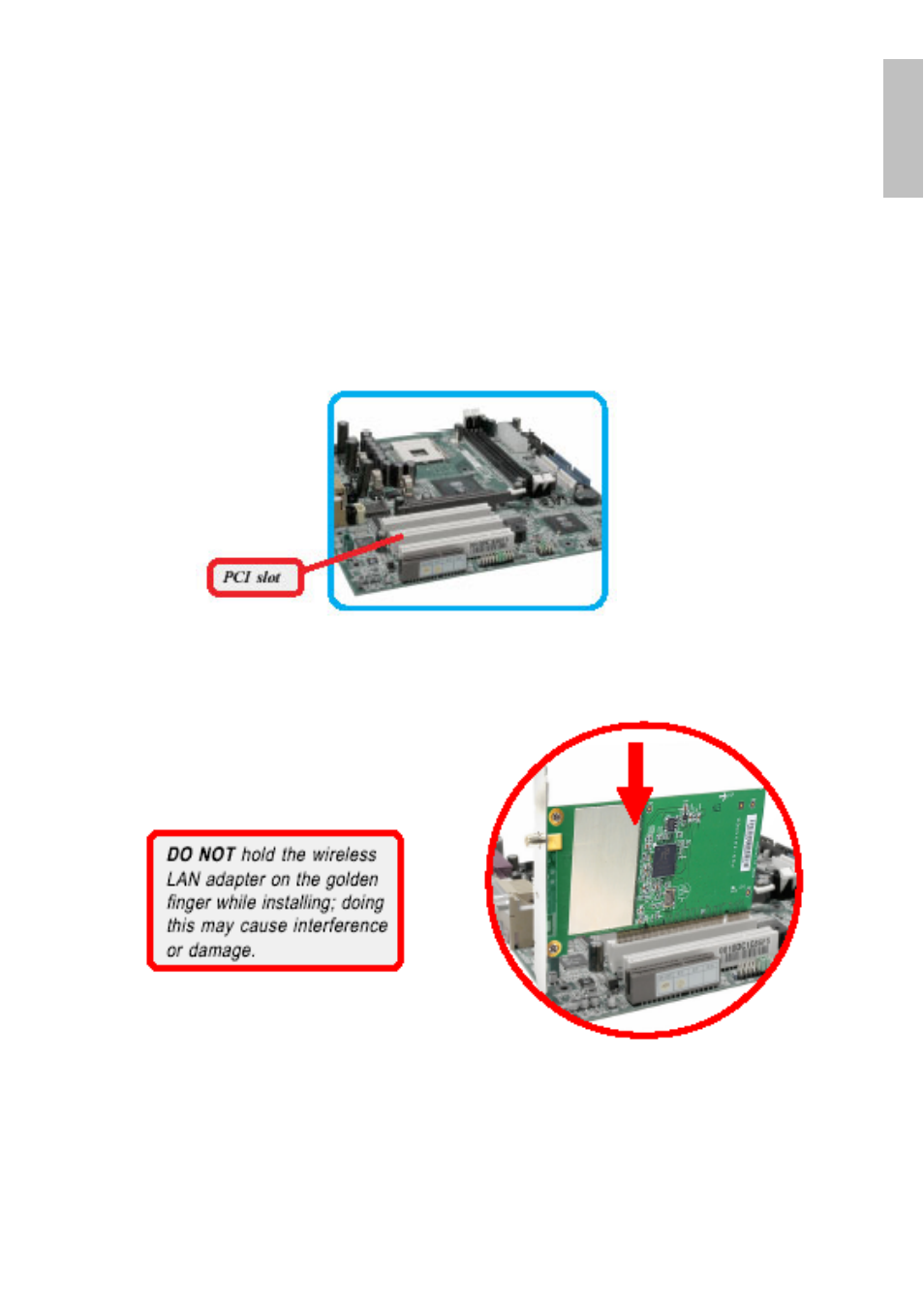

Step 1. Power off the computer, and then remove the computer cover. Locate the

available PCI slot on your main board.

Step 2. Put the Adapter directly over the PCI slot and press it into the slot firmly.

Step 3. Replace the computer cover after securing the Adapter with a bracket
screw.

Step 4. Connect the external antenna to the connector on the Adapter’s bracket.
