AC 500 H.E .P .A Air Clea ner AC500 H.E.P .A A ir Cleane r H.E.P .A, th e most ef f icient air filtratio n system . Replace H.E.P.A . filter ev ery two y ears. Replace prefilters every six months for optim al opera tion. Call you r heating contract or for repla cement f ilters.
AC50 0 H.E.P .A Air Clea ner H.E.P .A, th e m ost e f ficie nt air fi ltratio n sys tem. Rep lace H.E .P.A . filte r eve ry tw o ye ars. Rep lace prefi lters eve ry six mon ths for o ptim al op eratio n. Call y our h eatin g co ntrac tor for re place men t filte rs.
EAC
2 x 4 Electrical Box
120 VAC
HEPA
Air Cleaner
UV Air Purifiers
Power
Humidifier
Electronic Air Cleaner
120 VAC
C
L
H
GA51
Common Low
High
120 V
LOAD
Furnace Blower Motor
PCO 2450 Air Purifiers
General Filters, Inc. 43800 Grand River Ave., Novi, Michigan 48375 • Toll Free (866) 476-5101
Phone: (248) 476-5100 • Fax (248) 349-2366 • www.generalaire.com

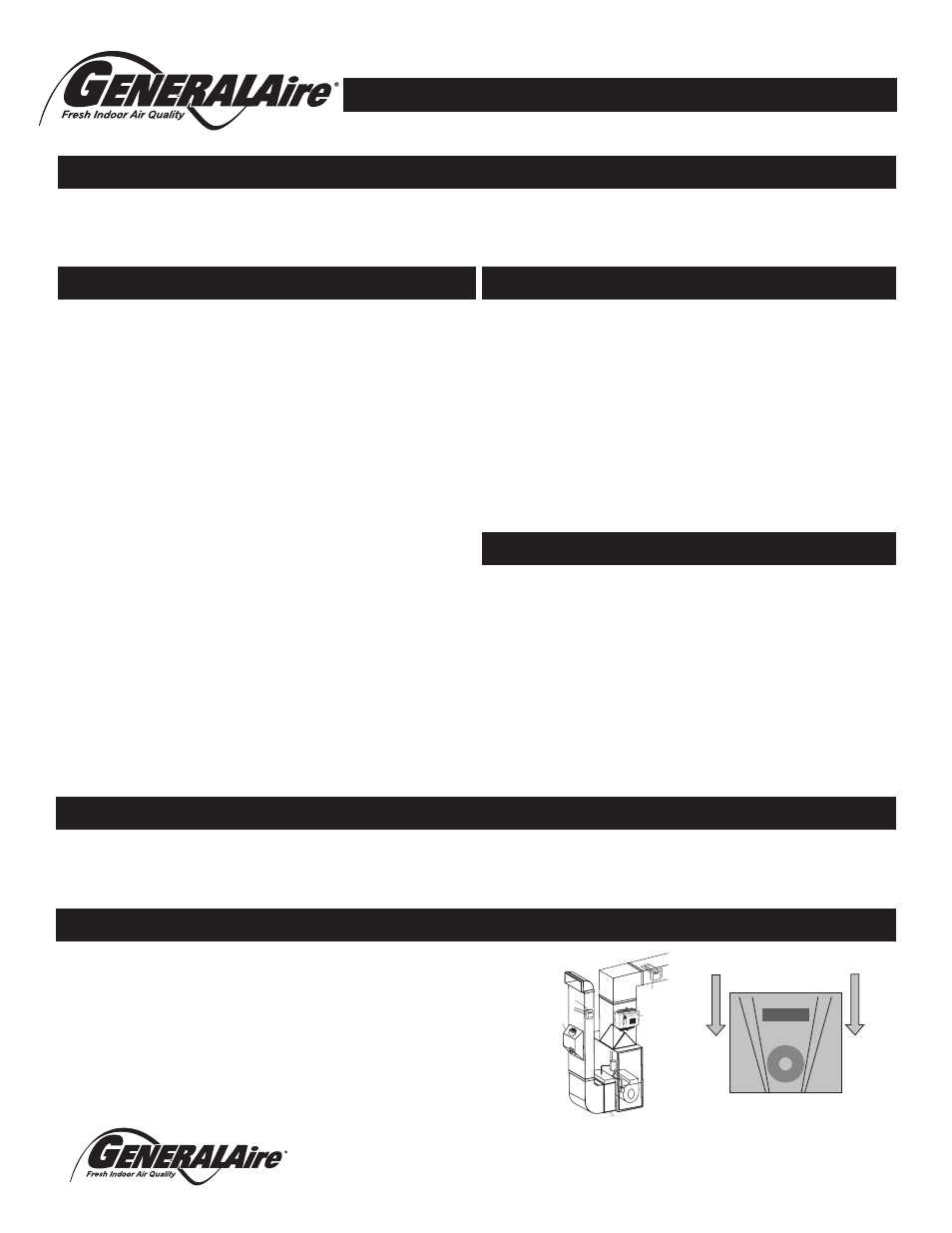

MaIntEnanCE
This maintenance schedule is only a guideline based on average indoor air quality conditions. Actual conditions will dictate
the frequency of cleaning the UV lamp and replacing filters. It is recommended on average that Standard Throw-Away 1" and
2" filter be replaced every 3 months, High Efficiency 5" pleated every 6 months and High Effinciancy 6" Micro Fiber Expandable
Filters every 12 months.
ClEanIng thE laMP
1. Unplug the quick disconnect power cord from the PCO2450.
2. Remove the (2) Phillips head screws on the left and right
hand side of the front electrical cover and remove the cover.
(photo - D)
3. Remove the (4) wing nuts inside on the duct mounting plate
shown in (photo - B).
4. Remove the PCO 2450 body by sliding out of the duct
mounting plate.
5. Use a cotton cloth with isopropyl alcohol and gently clean
the surface of the lamp.
note: If the honeycomb photo-catalyst on the left and right
side of the UV lamp appears to be a light gray color and
the individual cells are open and clear, there is no need to
clean the catalyst as it is self cleaning.
If for any reason the catalytic cells require cleaning, sit the
unit on end, on a flat surface, with the electrical enclosure
facing up. Spray the catalytic cells with Windex and flush the
catalyst with warm water until clean.
CAUTION: Allow the unit to thoroughly dry before
replacing into service.
6. Replace the PCO 2450 back into the duct mounting plate
and tighten the (4) wing nuts hand tight. Replace the front
electrical cover and plug the quick connect power cord back
into the unit.
REPlaCIng thE laMP
Recommended every (24) months of continuous service.
Replace only with a GeneralAire LT-50 replacement lamp.
This is a custom manufacture lamp designed only for high
output thermal compensating electronic ballast.
Follow the above steps and after (step - 4) loosen the brass
knurl nut on the clamp at the rear of the lamp. Unplug the lamp
electrical connector from the end of the lamp shown in (photo
- A) and gently slide the lamp out the front of the PCO 2450
housing. Reinstall by reversing the above steps.
PCO2450/UVC Photo-Catalytic Air Purifier
Installation & Maintenance Instructions
tRoUBlEshootIng
1. Check to be sure there is correct voltage to the unit and the
ballast is set for the correct voltage. (photo - A)
2. Be sure the lamp connector is fastened securely. (photo - A)
3. Check for loose electrical connections. (photo - B)
4. Test with new lamp and if lamp still does not light, replace
ballast.
WaRRantY
GeneralAire warrants the PCO2450 UVC Photo-Catalytic Air Purifier against defects in materials and workmanship for a period of five (5) years from date of installation.
Lamps carry a warranty for the useful life of the lamp, two (2) years. This warranty does not cover broken lamps due to mishandling in shipping, installation or misuse.
Shipping cost for warranty return parts is the sole responsibility of the owner of the air purifier. This warranty is provided to the original purchaser of the air purifier and
may not be transferred, sold or bartered. This warranty gives you specific legal rights which vary from state to state.
sPECIFICatIons PCO2450/UVC Photo-Catalytic Air Purifier
LT-50 UV Lamp .................................................... 50 watts UVC
Length in Duct .................................................... 18 inches
VectorFlo
® PCO TiO
2
Semiconductor .............. 3500 sq. inches
Weight .................................................................. 3.6 lbs
Adjustable Voltage ............................................. 120 or 230 volts
Lamp Life Extended by QuartzCoat
® .............. 2 years
Static Pressure Increase Less Than .02
AIR FLOW
