Chime Unit

1: Remove Batteries.

2: Insert new batteries, 3 X 1.5V

size ‘AA’

3: Make sure Positive/Negative

match the internal markings

4: Wait 60 seconds before

testing the Chime Kit.

Installation Guide:

1

3

Installation Guide:

Installation Guide: Bell Push

Installation Guide: Chime

Avoid

locating the Bell Push/Chime on or directly near

metallic surfaces as this may reduce the operation

range.

UPVC Door Frames:

When locating the bell push onto a UPVC door, always

check the operating performance before final

installation, internal metal frame may affect

performance

.

Note: Try adjusting the location of the Bell Push to the Left/Right or

place on external wall.

User Hints:

In case of the door chime does not sound, please check the

followings:

a) Flat batteries in either Push Button or Door Chime.

b) Wrong battery polarity in either Push Button or Door Chime.

c) For Plug-in Door Chimes make sure the socket is switched on.

d) Bell Push and Door Chime are not paired together, see setup

guide.

e) Materials in between the Bell Push & Chime will reduce the

operating range, move the Door Chime closer to the Bell Push

f) Wire free devices can be affected by external sources e.g. wire

free home alarms or power transformers/adapter

Portable Door Chime: BY101

Power: 3 x ‘AA’/LR6 1.5V Batteries

Range: 50 Metres

Indoor Use Only

Bell Push: BYT

Power: 1 x CR2032 3V DC Battery

(Included)

IP44 Weather Resistant

Type R2 Device - device where the sound output is created by the initial operation

of the control and where the period of sound output continues for the

designed duration irrespective of condition of the control.

IMPORTANT: There are no serviceable parts, do not repair.

Specification

433.92MHz

R&TTE

APPROVED

CH Byron Electrical United Kingdom. www.chbyron.com

A

B

DK

FIN

F

D

GR

LT

IRL

I

L

NL

P

E

S

UK

BG

CZ

EST

H

IS

LV

M

N

SK

SLO

CH

PL

RO

Project Manager
Mr G Hunter

GB: CH Byron

Byron House, Sherwood Rd

Astonfields, Bromsgrove

B60 3DR

UK

[email protected]

9-5 Mon-Fri, Local call charges apply

V1.0

Tel: 0845 2301231 (UK)

www.chbyron.com

433.92MHz

R&TTE

APPROVED

CH Byron Electrical United Kingdom. www.chbyron.com

A

B

DK

FIN

F

D

GR

LT

IRL

I

L

NL

P

E

S

UK

BG

CZ

EST

H

IS

LV

M

N

SK

SLO

CH

PL

RO

Project Manager
Mr G Hunter

V1.0

Bell Push: BYT

Power: 1 x CR2032 3V DC Battery

(Included)

IP44 Weather Resistant

Type R2 Device - device where the sound output is created by the initial operation

of the control and where the period of sound output continues for the

designed duration irrespective of condition of the control.

IMPORTANT: There are no serviceable parts, do not repair.

Specification

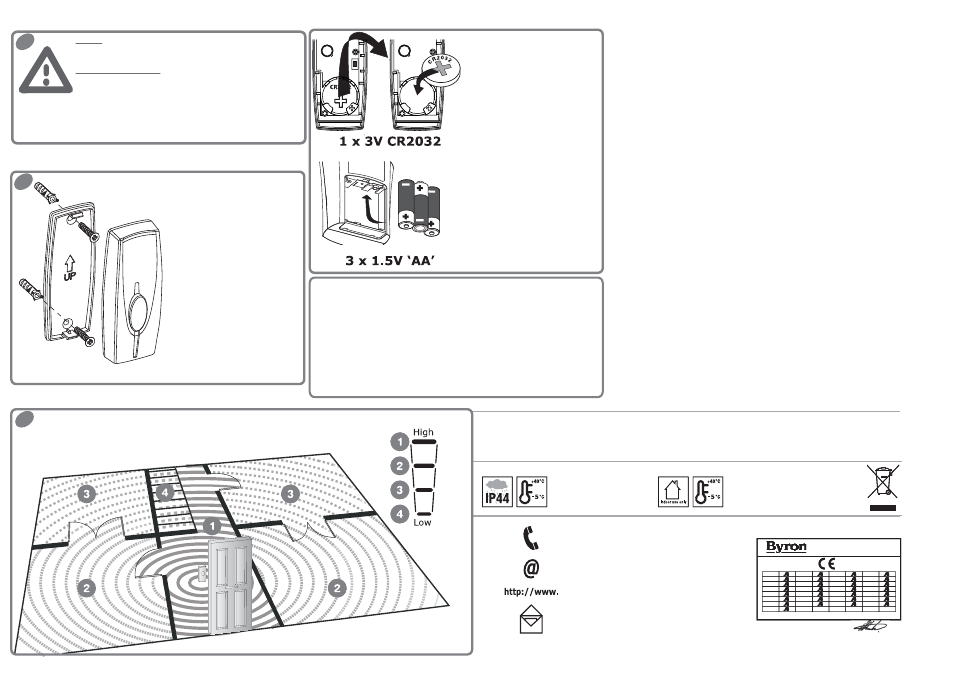

Place the door Chime within the operating range, transmis-

sion of the wire free signal through

Walls, Doors and Ceilings etc, may reduce the operating

range. Chime unit for INDOOR use only.

Diagram for illustration purposes only

Range Guide

2

‘CLICK’

1: Using back plate as a

template

2: Making sure UP arrows

points UP.

2: Mark and drill holes.

3: Insert wall plugs and attach

to wall using screws

provided.

4: Clip the Bell Push on to the

back plate making sure the

Bell Push ‘Clicks’ in to

place.

Note: The Bell Push can be

installed using a suitable

double sided adhesive tab or

tape when drilling is not

sutiable.

Changing Batteries:

Bell Push:

1: Remove back plate from the

Bell Push

2: Remove old battery from the

holder

3: Replace with new ‘CR2032’ 3V

battery

4: Insert into holder making sure

‘+’ is facing up

5: Test Chime Kit

Always dispose of old batteries in an

environmentally friendly way.
