SPECIFICATIONS
Model Number
AD917A . . . . . . . . . . . . . . . . . . . . . .Monitor, B/W, 17 in, over 800 TV lines
(high-resolution), EIA/CCIR
Operational
Picture Tube . . . . . . . . . . . . . . . . . .17-inch diagonal, 90° deflection angle
Resolution . . . . . . . . . . . . . . . . . . .> 800 TV lines
Video Input
Level . . . . . . . . . . . . . . . . . . . . . . .1.0 Vp-p, composite
Impedance . . . . . . . . . . . . . . . . .HiZ / 75 Ω, auto termination
Audio Output . . . . . . . . . . . . . . . .1.0 watts
Overscan . . . . . . . . . . . . . . . . . . . . .10%
Front Panel Controls
V-Size . . . . . . . . . . . . . . . . . . . . . . . .Adjusts vertical size of picture
H-Size . . . . . . . . . . . . . . . . . . . . . . . .Adjusts horizontal size of picture
V-Hold . . . . . . . . . . . . . . . . . . . . . . .Adjusts picture for vertical stabilization
H-Hold . . . . . . . . . . . . . . . . . . . . . . .Adjusts picture for horizontal stabilization
Bright . . . . . . . . . . . . . . . . . . . . . . . .Adjusts overall shading of picture and
establishes picture brightness
Contrast . . . . . . . . . . . . . . . . . . . . .Adjusts relationship between light and dark
areas of picture
Sharpness . . . . . . . . . . . . . . . . . . . .Adjusts sharpness of picture
Volume . . . . . . . . . . . . . . . . . . . . . .Adjusts volume higher and lower
Scan Under/Over . . . . . . . . . . . . .Selects either underscan or overscan for
monitor
Video A/B . . . . . . . . . . . . . . . . . . . .Selects either video input A or video input B
Power . . . . . . . . . . . . . . . . . . . . . . . .Turns monitor on and off
Rear Panel Controls
DC Restoration On/Off . . . . . . .Turns automatic power restoration on/off
V-Linearity . . . . . . . . . . . . . . . . . . .Adjusts vertical linearity of picture
Connectors
Video A & B . . . . . . . . . . . . . . . . . .Two sets of BNC pairs for loop-through
operation, auto terminating
Audio . . . . . . . . . . . . . . . . . . . . . . . .One RCA pair for loop-through operation
AC Input Connector . . . . . . . . . . .IEC 320 type connector for AC input
Power Cables
North American . . . . . . . . . . . .NEMA 5-15P, UL
Continental European . . . . . .CEE7/7, GS
Electrical
Voltage . . . . . . . . . . . . . . . . . . . . . . .90 to 264 VAC (50/60 Hz)
Power . . . . . . . . . . . . . . . . . . . . . . . .40 watts
Mechanical
Dimensions (H x W x D)
Cabinet . . . . . . . . . . . . . . . . . . . .38.5 x 41.5 x 39.0 cm
(15.2 x 16.34 x 15.35 in)
Rack Mount . . . . . . . . . . . . . . . .40.0 x 48.3 x 39.0 cm
(15.75 x 19.0 x 15.35 in)
Unit Weight . . . . . . . . . . . . . . . . . .14 kg (30.9 lbs)
Shipping Weight . . . . . . . . . . . . . .17 kg (37.3 lbs)
Color . . . . . . . . . . . . . . . . . . . . . . . .Black
Construction . . . . . . . . . . . . . . . . .Metal cabinet
Environmental
Operating Temperature . . . . . . . .0° to 40° C (32° to 104° F)
Humidity . . . . . . . . . . . . . . . . . . . . .90% RH (non-condensing)
Storage Temperature . . . . . . . . . .-10° to 50° C (14° to 122° F)
Regulatory
Emissions . . . . . . . . . . . . . . . . . . . .FCC: Part 15, Class B,
CE: EN55022
Meets Canada ICES-003
Immunity . . . . . . . . . . . . . . . . . . . .EN50130-4
Safety . . . . . . . . . . . . . . . . . . . . . . . .UL1950, CSA 22.2, No. 950
CE: EN60950, DHHS: Rules 21 CFR
Subchapter J
Options
AD917ARK . . . . . . . . . . . . . . . . . . .Rack Mount Kit
AMERICAN DYNAMICS AD917A 17-INCH BLACK & WHITE MONITOR
VS242-02 01/03 L
©2003 Sensormatic Electronics Corporation
Product specifications and availability subject to
change without notice.
Certain product names mentioned herein may be trade
names and/or registered trademarks of other companies.
Back side – Single sheet – Letter size – print b/w
B
V-SIZE H-SIZE V-HOLD H -HOLD BRIGHT CONTRAST SHARPNESS VOLUME SCAN VIDEO
OVER UNDER A
A
B
VIDEO B IN OUT VIDEO A IN OUT IN OUT
AUDIO ON OFF
AC IN
DC-REST. V-LIN.

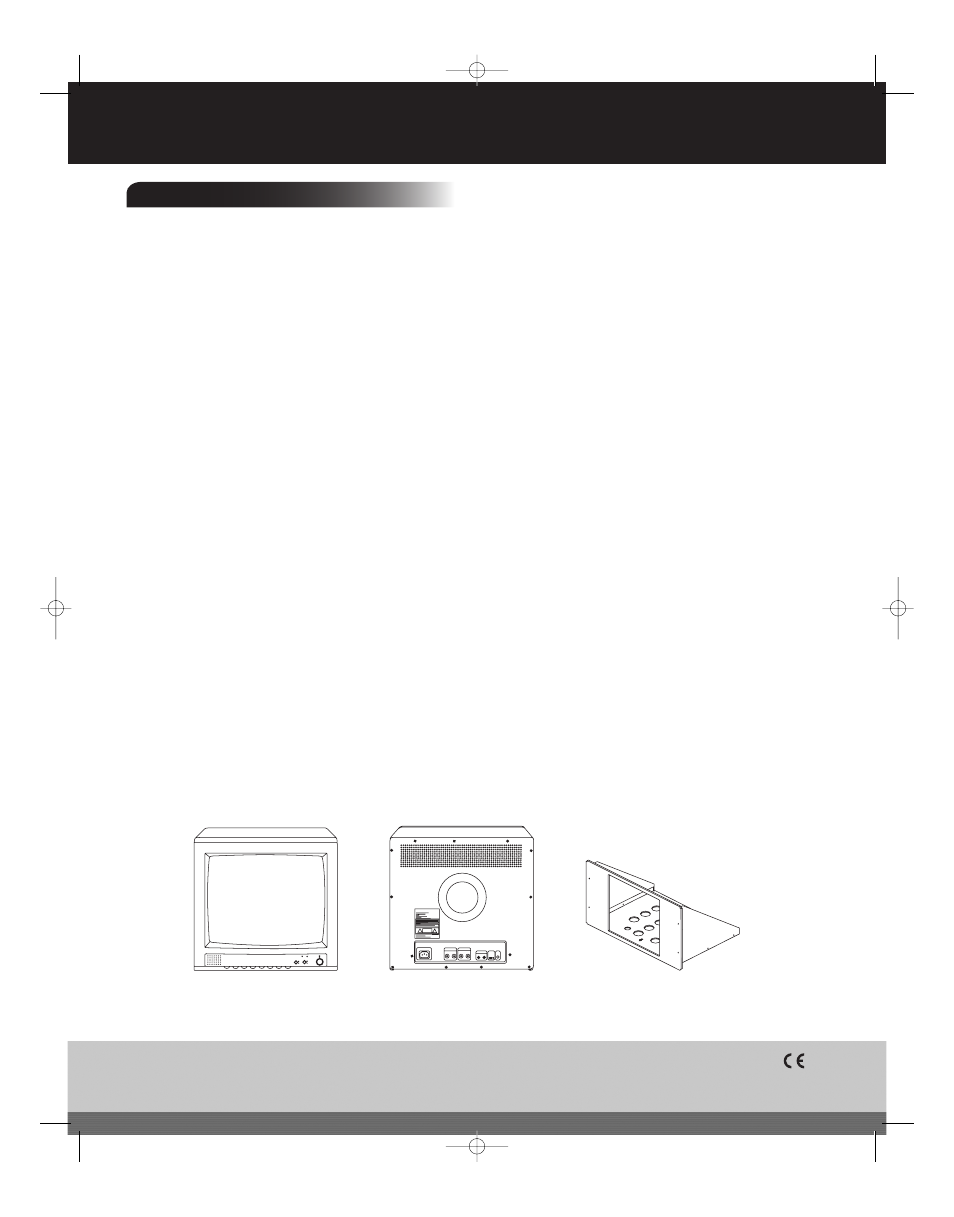

Front Panel RearPanel AD917ARK Rack Mount Kit
with Front Panel
